DGET-20BBL
DGET
8438400000
| Standard Brewery 20 BBL |
This is a 20 bbl Pub Brewery, manufactured by DEGONG . It's a copper clad show piece. This equipment is being stored in our factory
20BBL Brewhouse copper clad
Equipment List:
Brewhouse:
20 Barrel Pub Brewing Systems (steam heated)
Combo Mash/Lauter tun (20 barrel)
Kettle/whirlpool (20 Barrel)Connected via manifold to mounted brew house pump
Hot liquor tank attached on deck(20 barrel)
brewing tanks steam jacket
DEGONG brew kettles are designed and built to provide proper evaporation rates,safe operation, and durability for your commercial brewing system.

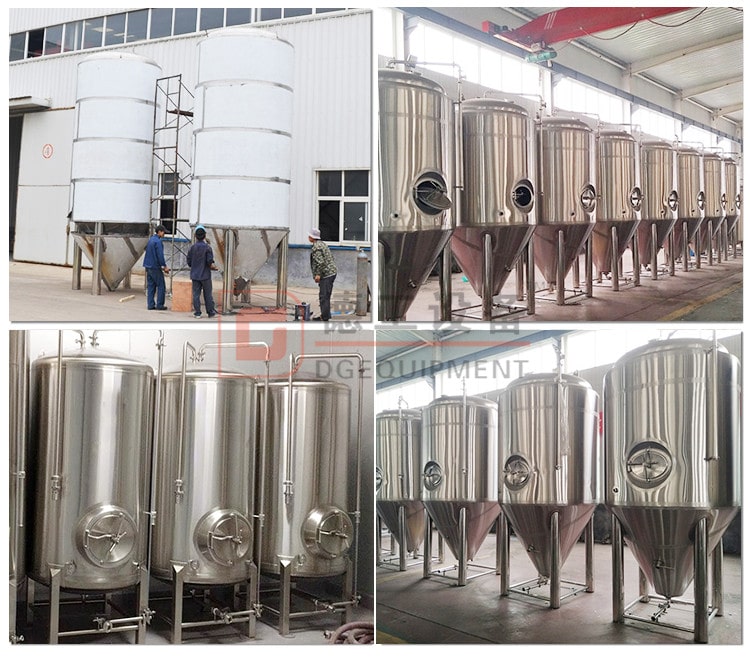

Fermentation tanks with side manway
Fermentation tanks:
6units 20 Barrel Pub Brewing Systems double wall Cylindrical Vessel
Serving tank/Bright tank:
2units 20 Barrel Pub Brewing Systems double Wall Vessel
Process Equipment:
20BBL Glycol tank
2*10P chiller
Brewery features:
100% 304 stainless steel construction, including all non-product contact and structural steel
2B product contact material finish, with internal welds polished #4
Designed with 30% more than working volume
Sized for 15-minute transfer time to whirlpool brewing
Glass cover manway
100mm polyurethane insulation
Fully welded 304 stainless steel outer sheathing
Rotary sprayballs to clean vessel
High flow nozzle in concentrator to clean calandria tubes
Static spray ball in concentrator to clean shroud and wort spreader
Optional Features
A variety of external material and weld finishes are available from bead blast up to mirror-finish electropolish
Glass cover manway with brewery logo and safety interlock proximity switch
Centrifugal wort transfer pump with double mechanical seal and seal flush
Pneumatically actuated butterfly process valves
Steam supply assembly including on/off steam supply valve, steam control valve, strainer, pressure gauge and manual isolation valve
Condensate collection assembly including steam trap, strainer, check valve, and manual
isolation valve
Bright tanks
Bright tank features:
Design Pressure 0.3Mpa
Stainless steel legs with leveling feet
Cooling jacket on bottom and sidewall
CIP spray ball and arm with CO2 supply quick connect
Carbonation Stone
Level gauge with isolation valves
Pipe for bottom drain
Thermometer
Carbonation stone
Thermowell for RTD
Pressure Gauge
Sample Valve
Pressure/Vacuum relief valve
All fittings, clamps, and valves are included with tank
304 Stainless steel.
Outer cladding - 2mm #4 brush,
inner wall - 3mm finish
Polyurethane insulation thickness 3 inches
Optional temperature controller with mount and solenoid valve available
Note: Photo of equipment is subject to change.
DEGONG brew kettles are designed and built to provide proper evaporation rates,safe operation, and durability for your commercial brewing system.
