mid-sized brewing system 5bbl-15bbl brewery equipment custom-built for my client

As soon as small brewing systems are maxed out, it's time to move forward. Our micro breweries are designed for the brewer who has taken up the craft as a full time endeavour, and wishes to increase production to advance in the market. For productions ranging from 12.5Bbl - 85Bbl (1,500 - 10,000L) per month, the line of micro breweries by DEGONG is your best bet for mid-sized systems.
Thickness of material (mm):
Material:
Heating source:
Quantity:
  • DGET-10BBL
  • DGET
  • 8438400000
10BBL as a sample for mid-sized breweries

As soon as small brewing systems are maxed out, it's time to move forward. Our micro breweries are designed for the brewer who has taken up the craft as a full time endeavour, and wishes to increase production to advance in the market. For productions ranging from 12.5Bbl - 85Bbl (1,500 - 10,000L) per month, the line of micro breweries by DEGONG is your best bet for mid-sized systems.



 BREW1-min

Two vessel 10bbl brewhouse

we can add a hot water tank if you want to increase brewing effience


Brewhouse system:

Arguably the most labor-intensive part of any brew day is graining out.

Brewhouses can be equipped with a mash rake to reduce striations in your mash, we decided to design a series of grain-out paddles into the rake.



When the powerful rake motor is switched into reverse, the paddles automatically lock into place and push the grain out of the open door. Through this process, it is possible to remove nearly all spent grain from the mash tun without the need for manual labor.



spent grain hatch & filter-min

Raker with motor and can be automatic grain out

With the ever-evolving landscape of craft beer, batch size flexibility has become a focus on many successful breweries. The integrated whirlpool option allows efficient single day double batching.



By transferring the wort out of the boil kettle, brewers can immediately begin to run off the second batch , all while knockout takes place from the whirlpool vessel. As a result, a typical 10 bbl double batch (20bbl of wort) can be brewed in an 8 hour day.



fermentation tanks2min

Perfect fermentation tanks for fermenting quality beer


Fermenting system features:


Cooling method: Glycol cooling jacket around both cylinder and bottom. The cooling jacket can achieve perfect cooling effect.

Outer shell: SUS304, thickness 2mm, brushed finished

Inner shell: SUS304, thickness 3mm, smooth ground welds - 2B finish

Glycol jacket: SUS304, thickness 2mm, dimple welded

Insulation material: polyurethane, 80 mm thickness

Head space: 20% over stated size

Pressure rating: 1.5bar working pressure

Included Accessories: PVRV, sample valve, carbonation stone, separate blow-off pipe, rotating CIP ball and piping, rotatable racking arm, analog temperature gauge, and more.

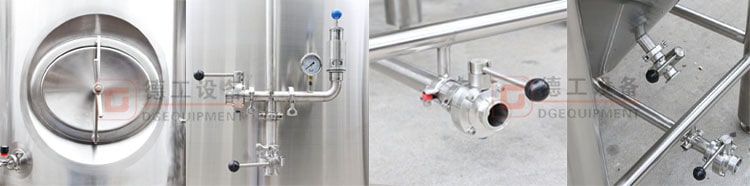

cleaning ball and thermometer-minFV details-min

Cleaning ball;thermometer;side manway;pressure gauge;grain oulet...


Cooling system

Insulated glycol water tank for glycol liquid holding and mixing;

Efficiency chillers with freon to supply cooling energy;

Sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger;

All pipes, fitting, insulation materials are included.


Contact Alice today

Microbrewing, craft brewing or commercial large brewhouses, we have the equipment, supplies & install engineers. Looking to find bottling lines and tanks for sale we have that covered.
