DGET-2000L
DGET
8438400000
Bright beer tank introduction
Bright beer tanks are often also called serving tanks, tax determination tanks or clear beer tanks (=CBTs), bright beer tanks (=BBTs), maturation or conditioning tanks. We know that bright beer tank is the last vessel that beer comes in contact with to become a beer that is perfectly matured, clarified and ready to be packaged and served.
The BBT can be horizontal bright beer tank and vertical bright beer tank based on customer's space at site .
Compared to the normal vertical bright beer tank, if the customer's site height is limited but the space is abundant, we can use a horizontal brite tank or use a wider diameter tank. If the customer's space is limited but the height is very high, we can also use horizontal BBT.They can be arranged in the battery, i.e. several rows one above another
Properties wider tanks with small length of cylindrical part:
Smaller heat transfer area, lower cooling effect
They are less demanding in terms of height space.
Properties slender tanks with large height of cylindrical part:
Larger heat transfer area, the greater the cooling effect
They are more demanding in terms of height space
It also can be single wall brite tank or double wall brite tank according to customer's requirement
Depending on their application , the beer serving tanks can be glycol jacketed or can be located in a cold room.
It is necessary to note that for the single-shell tanks it is needed to create a cooling box, a room with very good insulation of walls and ceiling and with a refrigerator door. The operating costs of cooling are particularly during the summer months, significantly higher than the lager cellar with insulated tanks cooled by liquid. These increased costs to the building and operation usually outweigh the savings from buying a single wall brite tank compared to double wall brite tank.

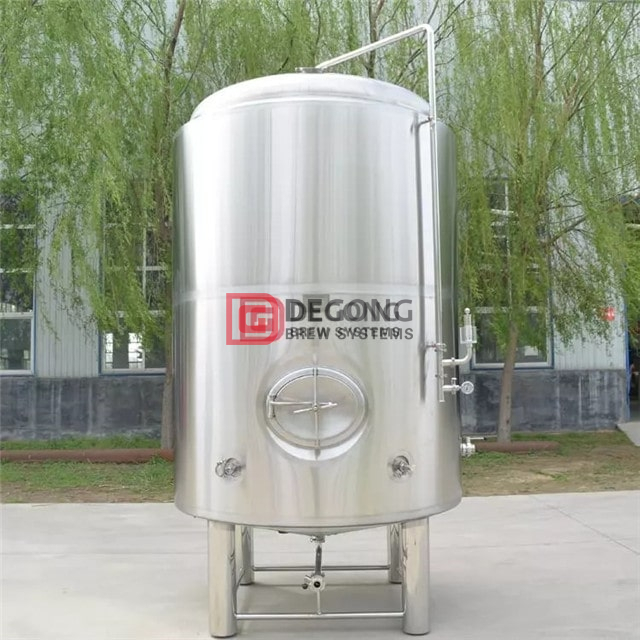

Vertical bright beer tank
Main features of bright beer tank
1.Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm
2.External-Jacket(SUS304) thickness: 1.5mm;
3.Oval head cone bottom, thickness: 3.0mm.
4.Surface: Finish 2B – cold-rolled, annealed
5.Inner surface treatment: welds grinded to Ra 0.4μm (attached 360 degree Omni cleaning ball).
7.Mirror surface finish inside.
8.Insulation: Polyurethane-thickness:100 mm.
9.Equipment with : cone 150°resist compression design，
10.Vessel Pressure:1.5 bar / 3.0 bar
11.Heat exchange area：6.8㎡
12. Glycol Jacket: Dimpled plate on cone and side
13. Sanitary top manway with pressured door
14. TC connected CIP arm with 360° coverage spraying ball
15.Full sanitary metallic sealed sampling valve
16.Mechanical safe valve PVRV 2 bar on top
17.Hydraulic shock pressure gauge and mechanical regulation valve on CIP arm
18.Tri clamp discharge arm and beer outlet with butterfly valve
19.Thermowell for high accuracy temperature sensor
20.4pcs completely SUS304 heavy duty legs with leveling pad and legs support
21. Complete valves, fittings and all parts
