DGET-15BBL
DGET
8438400000
Microbrewery or minibrewery is typically applied to breweries that are much smaller than large-scale breweries.These breweries are generally characterized by their emphasis on flavor and brewing technique. We offer a Microbrewery (mini brewery) with the productivity of 1000L (10 hl) to 5000L (50hl) per brew. The service includes: complete set of microbrewery equipment, installation turn key, recipes and technology of branded beers, staff training and more. Microbrewery comes complete "turnkey" The performance of your Microbrewery (Brewery and mini brewery), if necessary, can be increased in the future.

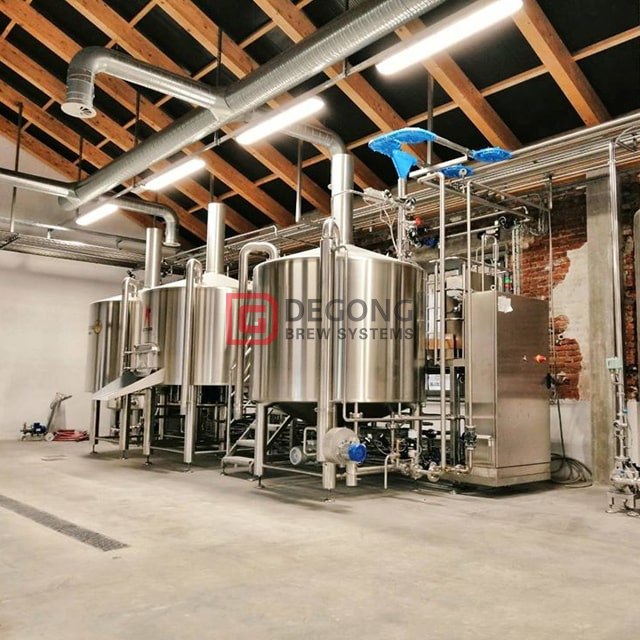

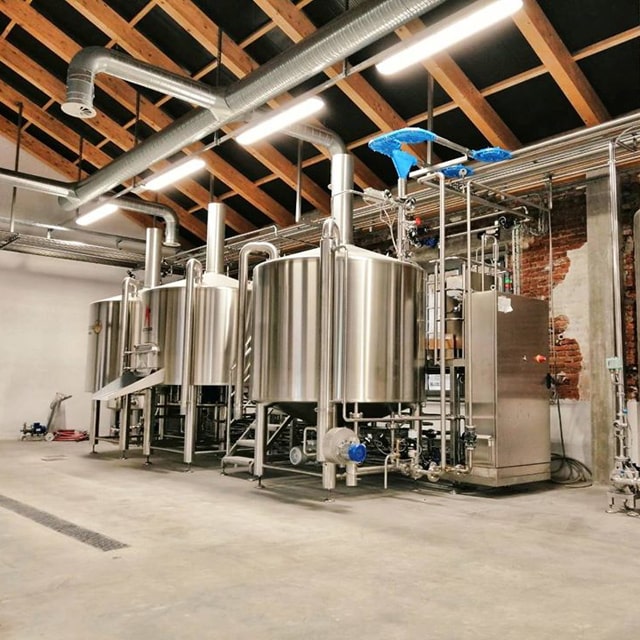

4 vessels 15BBL craft stainless steel beer brewhouse brewing equipment
| Introduction of 15BBL beer mashing equipment |
The beer mashing system usually consists of these parts:
1. The malt mash boiling tank – heated vessel for the mixing of the squeezed malt in water and boiling of malt mash
2. The wort boiling tank – the heated vessel for the boiling of wort with hops. This function may be integrated into the malt mash boiling tank
3. The filtering tank – the tank with special sieve for the filtration of malt mash (separation of liquid wort from solid parts of malt)
4. The whirlpool tank – tank equipped with a tangential inlet for centrifugal separation solid rests of hops from wort – this vessel may be situated also as an external device
5. Other tanks – Wort storage tank, Second malt mash boiling tank etc. – only special brewhouse models
You can combined these tanks according to your requirement,such as mash/lauter tank+boiling/whirlpool tank
| Product | 15BBL Commercial Used Brewery Industrial Beer Brewing Equipment Making Machine for Sale |
| Material | All of the material of tanks,pipes and accessories are food grade stainless steel 304 |
| Insulated | Rock wool/Polyurathane,100mm |
| Control | Automatic/Semi-automatic,PLC Control |
| Thickness | Inner:3mm SUS304; Jacket:2mm SUS304; Outer:2mm SUS304 OR Copper |
| Electric Element | Raker motor,Agitator motor,Pumps..All of them are Siemens or ABB Brand,VFD control |
| Heating method | Steam heating,direct fire heating,electric heating |
| Steam boiler | If choose steam heating,it will need a boiler,it can be diesel boiler,electric boiler and gas boiler |
Component | Mash/lauter tank+lauter tank/whirlpool tank(You can combine these function freely) Hot water tank Plate heat exchanger.It can be single stage(City water) or double stage(Glycol and city water) Wort aeration assembly Hops filter Wort grant Pumps Operation platform Pipes |
Features | Volume + ~30% headspace Internal 2B finishing, welds polishing to 0.4um Modular 4 parts screen sieve separating the wort bath from lautering area. Sparge arm; False bottom with 0.7mm gap; Wort sprinkling provided by sparging semicircle or spray balls. Grist hydrator with strike water mixing station Automatic spent grain removable system |
| Fermentation tank/ Beer fermenting system |

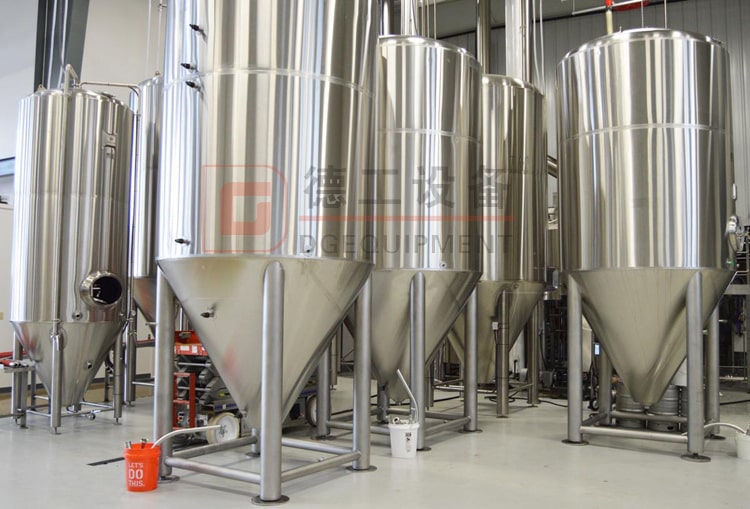

Fermentation tanks, or more commonly fermenters, are key components in beer brewing. Fermenters are specialized tanks designed to precisely control temperature and maintain the optimal conditions for fermentation, which occurs once the wort has been transferred from the brewhouse to the fermenter; a conical-bottom design is highly recommended for fermenters allowing for easier yeast harvesting.

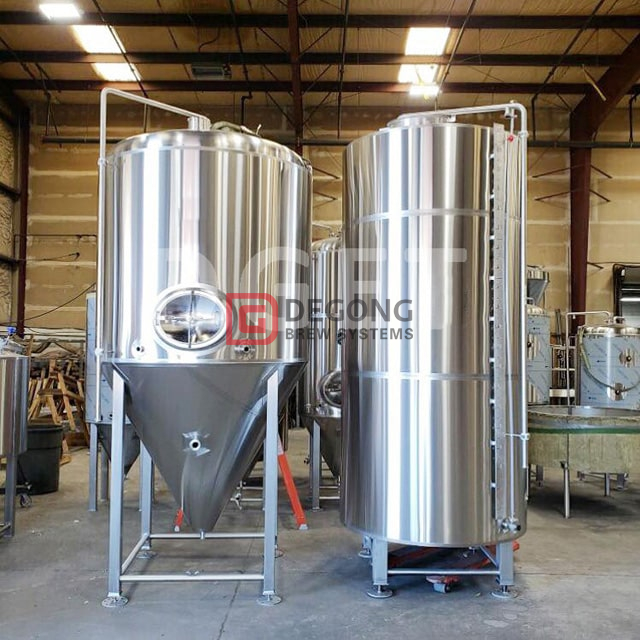

15bbL stainless steel beer fermentation tank with cooling jacket
Other capacities available upon request
100% food-grade 304 and 316 stainless steel
All fermenters are rated to 14.7 PSI (1 bar) operating pressure
Two-zone glycol jacketing encompasses the 60-degree conical cone and sidewalls
Top-mount manway (optional side-mount configurations available)
Complete thermal insulation of side walls and cones
All insulation is fire retardant fiber cloth (not foam)
All welds are blended and finished to a sanitary food-grade finish
Every fermenter is equipped with:
racking arm
pressure relief valve
blow-off/ clean-in-place (CIP) tube
CIP spray ball
sample valve
Hops adding port
butterfly valves
TC clamps, gaskets and clamps
90-degree elbows
Carbonation stone
optional rupture disc assemblies available

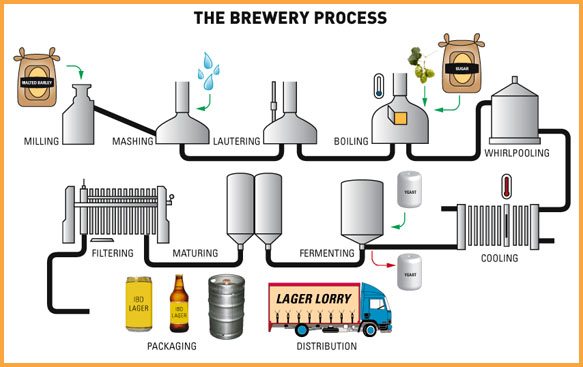

| Brewing progress |
| Certifications |
CE&TUV&ISO

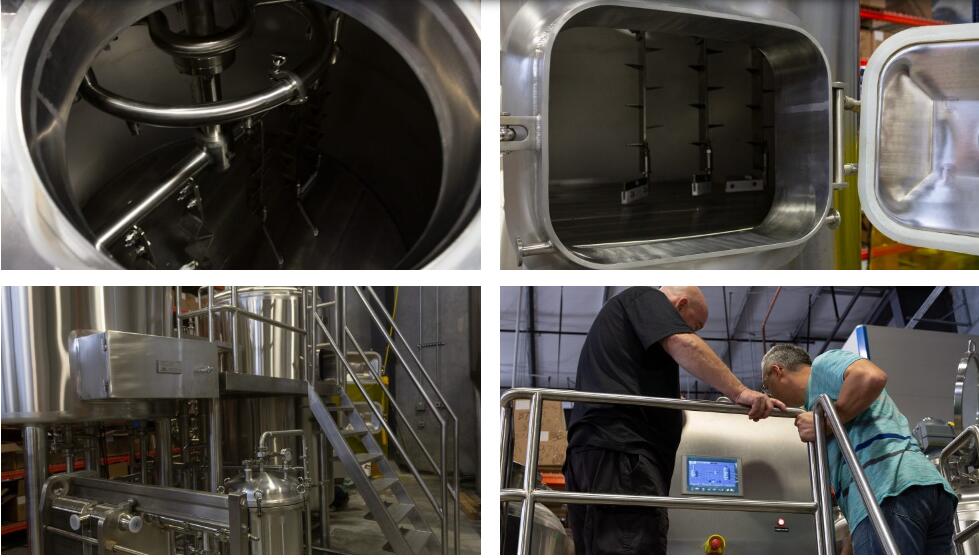

| Equipment shows |
| Contact us |
