DGET-1000L
DGET
8438400000

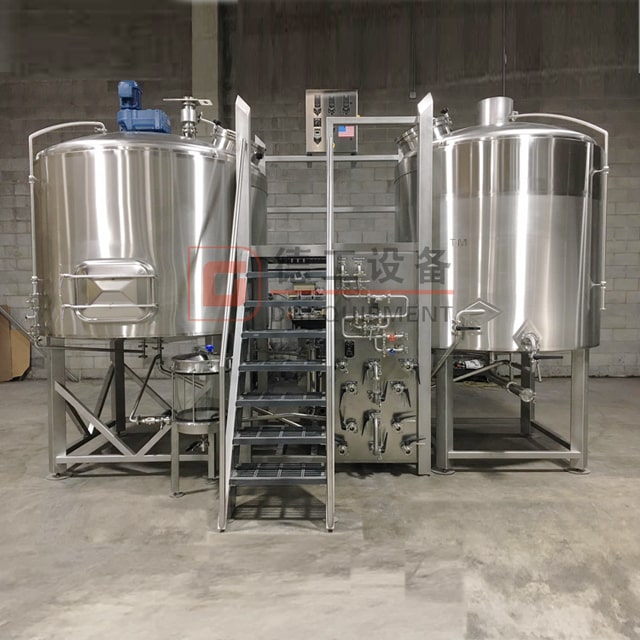

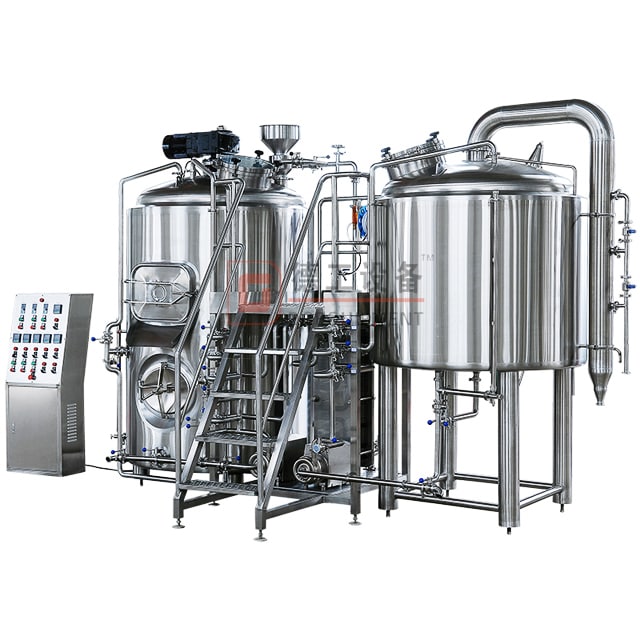

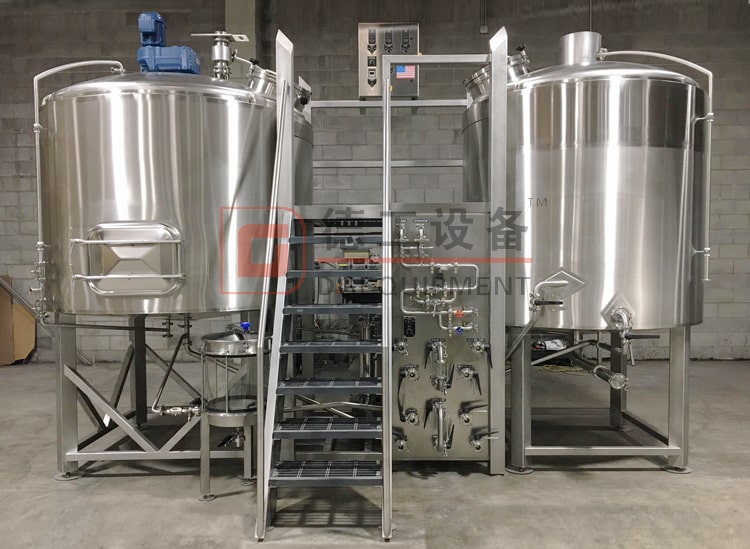

The 1000l brewing system is very popular. It is not only suitable for microbrewery, but also for small brewpub/restaurant/hotel. DEGONG'S brewing system includes a complete set of configurations from milling to bottling. All electrical components are Siemens, Schneider and Omron. The control of the entire system is PLC control, which can be controlled remotely by computer..
Beer brewing equipment can be designed according to the requirements of different brewers.The whole set commercial used beer brewing equipment includes miller, mash system, fermentation system, cooling system, control system, cleaning system, filtration system, sterilizer, filling line (bottle, barrel, can), packaging.
Beer brewing equipment component
Equipments Request | Components |
1. Milling System | Malt Miller |
2. Mashing System | Mash/Lauter Tun |
Boiler Tank | |
Boiler | |
Heat Exchanger | |
Wort Pump | |
Oxygen system | |
Other accessories are available: 1. Ornamental Pipe;2.Mashing Pipeline; 3. Yeast Feeder; 4. Venturi Tube; 5. Butterfly Valve DN40; 6. Butterfly Valve DN32; 7. Soft Pipe; 8. Dregs Rake; 9. Sugar Measuring Cylinder; 10. Saccharimeter; | |
3. Fermenting System | Fermentation Tank |
Other accessories are available: 1. L-Pipe; 2. Butterfly Valve; 3. Pressure Gage; 4. Solenoid Valve; 5. Vacuum Valve; 6. Cooling Pipe; 7. Thermal Insulation Pipe; | |
4. Cooling System | Glycol Water Tank |
Refrigeration Machine | |
Centrifugal Pump | |
Pump | |
Relative Pipes and Valves | |
5. CIP System | Washing Tank |
Sterilization Tank | |
Pump and Valve | |
6. Controlling System | Mashing Control Panel |
Fermenting Control Panel | |
Refrigerating Control Panel |
Beer brewing equipment features
304 SS or 316LSS or copper(Inner thickness:3.0mm,Outer thickness:2.0mm,Jacket:2.0mm)
30% head space at least for each tank
Motorized mash mixers, lauter rakes and spent-grain plow
ABB Siemens motors/pumps on the whole system
Stainless steel process piping, work cabinet and control cabinet
Siemens/Schneider/Omron electric element
Grirst hydrator bowl with hot/cold liquor blending
Sight level indicators on fermenting system.
Insulated with a minimum of 100mm Chloride-Free PU Insulation.
Interior Finish: Overall polishing to 0.4 μm without dead corner
Adjustable Levelers provide a level tank regardless of floor slope;
Design pressusre:3.0bar;Working pressure:1.5bar
Other type
Size/batch | Fermenters size | Number of fermenters | Beer production per year | Floor space BH+Cellar+filling+store | Height Brewhouse | Height Cellar |
2HL(200L) | 4HL | 4 | 320HL | 30m2 | 1.9m | 1.90m |
3HL(300L) | 6HL | 4 | 480HL | 40m2 | 2.0m | 2.06m |
5HL(500L) | 10HL | 5 | 1000HL | 70m2 | 2.15m | 2.50m |
10HL(1000L) | 20HL | 5 | 2000HL | 100m2 | 2.5m | 3.10m |
15HL(1500L) | 30HL | 5 | 3000HL | 140m2 | 2.6m | 3.40m |
20HL(2000L) | 40HL | 5 | 4000HL | 180m2 | 2.8m | 3.80m |
Service
After delivering the equipments to our customers, Degong will arrange special worker to do the track service,because we set up the marketing department for specially dealing with the feedback of customers for providing the satisfied service. Once Degong gets the feedback from customers, we will do our best to deal with it for you.
Contact us
Why choose us:
1.Always delivery in time
2.Guarantee is 3 years
3.Install equipment freely
4.Real food grade SUS 304
5.Promise good pre service and after service
