15HL Industrial Used Customized Stainless Steel 304 Brewery Beer Production Line

15HL Industrial Used Customized Stainless Steel 304 Brewery Beer Production Line is very popular in European market. Some of them use it for commercial used,some of them use it for restaurant or brewpub.Usually, the restaurant will devide out an separate space as cellar, set the brewhouse where people can see and watch the brewing operation directly, for example behind the big window or the bar counter.

Material:
Heating method:
Insulation:
Configuration:
Electric component:
Quantity:
  • DGET-15HL
  • DGET
  • 8438400000


The whole beer production line contains:milling-mashing-lautering-boiling-whirlpool-chilling-yeast&oxygen-fermentation-storage-filtering-sterilization-bottle/cans/keg filling


the-brewing-process


Component

No.

Name

Composition

Specification

Technical parameter

1

Milling System

Malt Miller

500kg/H

Double roller

Carbon steel spray paint/Stainless steel

Power:2.2Kw

2

Mash system

Mash/lauter Tun

1500L

Material:SUS316/SUS304/copper

Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm

Dimple jackete for steam heating,

Electric element tube for electric heating
Burning room for direct fire heating

ABB stirring motor

100mm PU wool for insulation

Lauter tun with round glass manhole,side mounted grain outdoor with

spent grain chute,sampling valve,sight glass,false bottom,Racking device,

positive turn cultivating spent grain,reverse discharging spent grain



Material:SUS316/ SUS304/copper



Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm



100mm PU wool for insulation

Boiling/whirlpool tank 1500L

Round glass manhole, dish head,with temperature
sensor,cleaning tube, standard Washing ball,
cleaning pipeline
,tangent port

With cleaning tube, with standard washing ball,cleaning pipeline



Dimple jackete for steam heating,

Electric element tube for electric heating
Burning room for direct fire heating

Hot liquid tank

3000L

Material:SUS316, SUS304,copper

Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm

100mm PU wool for insulation

Top dish head, bottom conical head, round glass manhole

Dimple jackete for steam heating,

Electric element tube for electric heating
Burning room for direct fire heating

With a cleaning tube, with a standard wash ball, cleaning pipeline, overflow port,temperature sensor

Heat exchanger


SUS304,Two stage cooling

Wort oxygenator


SUS304, venturi principle with sight glass

Yeast Adding Tank

30L

With valve, sight glass, pipe fittings, hand-held
thermometer, display instrument, etc

Wort pump

5t/h

China top brand, Sanitary SUS304

Hot liquid pump

Steam boiler

China top brand, Sanitary SUS304

Pipe and fittings

As design

Completely SUS304,including platform and steps

3

Steam boiler

Steam boiler 200kg/h

Electric steam generator

Gas steam generator

Diesel steam generator

4


Fermentation system

Fermentation tank

1500L

Material:SUS316L /SUS304

Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm

100 mm PU for insulation

Dish head,cylinder,60 degree cone bottom(adjustable)

Top or side manhole

With electromagnetic valve, mechanical regulating valve,sample valve,

temperature sensor, pressure gauge,hops add hole,breathing valve,

carbonation stone,adjustable leg,cooling jacket

Bright beer tank

1500L

Material:SUS316L or SUS304

Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm

100 mm PU for insulation

Dish head /bottom,cylinder

Top or side manway

With electromagnetic valve, mechanical regulating valve,sample valve,

temperature sensor, pressure gauge,hops add hole,breathing valve,

carbonation stone,adjustable leg,cooling jacket

6

Cooling system

Chiller

10P

Cooling Capacity: 6364Kcal

Installed Power:4.86kw

Refrigerant: R22

Noise:70-80db

Coperland compressor

Glycol Tank

2000L

Insulated conical top and sloped bottom

 pump

5M3

Sanitary SUS304, VFD control

Pipeline and fittings

As designed

SUS304

7

Control system

The whole process Controlling

Floor type

Panel instrument digital

PLC control with touch screen for special

8

CIP System

Acid Tank

200L

SUS304

Alkali Tank

200L

SUS304

CIP Pump

5M3

Flow:3T   Lift:24

9

Filling system

Keg Washing machine

40-60kegs/hr

Double Station Keg Rinser

Keg filling machine

30-40kegs/hr

Heating: Electric, Power: 15kw(steam  for optional)

Single Station Keg Filler

Input Power: 0.1 kw

Bottling line

1000 bottles/hr

3-in-1 machine

Cans line

1000 cas/hr 3-in-1 machine


Pictures

products_598156_2d

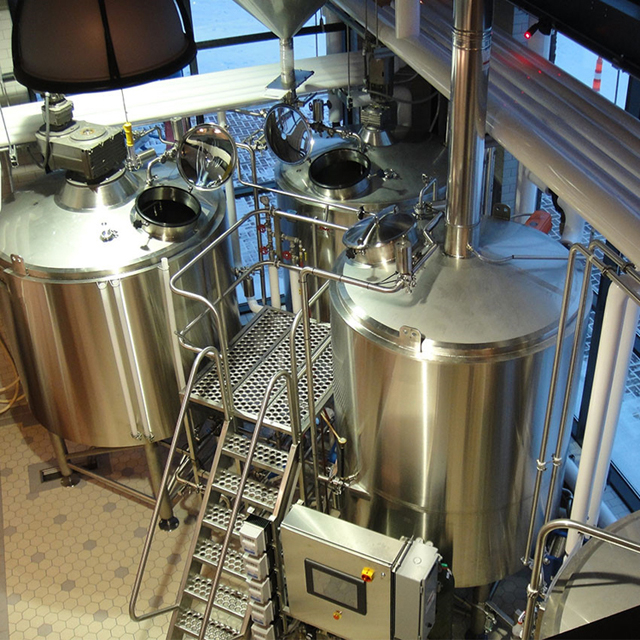

Mash system:Mash/lauter tank,boiling whirlpool tank and hot water tank


9

Fermentation tank


10

Bright beer tank


CIP

CIP cleaning system


control1 (2)

Control system



DEGONG is a large manufacturer of beer brewing equipment, which the headquarter is located in China. Dedicate to beer equipment, beer fermentation equipment, beer bottling machine, beer keg filling machine, beer filter machine, wine production equipment, wine fermentation tank, pasteurizing equipment, water treatment equipment, steam boiler and so on. Provide the total solution to customer from designing, consulting, product to project implementation.

DEGONG was established at 2009, and we are world-renowned for professional beer equipment manufacturing and wine equipment manufacturing. We research and develop beer brewing system and beer bottling machine independently from 2012, and we have developed overseas market successfully.

Now we have established sales services network of more than 10 core agents,more than 100 distributors and project contractor. We have finished thousands of project.


Factory

工厂1


With customer

11111


Our equipment in Exhibition

展


Prodution team

未标题-1FFpf


After sales serfice

服务





Advantage:

1.Different specifications meet different need of customers,for example,several types of heating devices for your choice: dimple jacket / inner pipe heating machine(optional)

2.Advanced technology can saving energy and running cost,for example,our control panel is PLC.

3.High performance and stability with low maintenance cost

4.Custom built, meet your needs exactly,that is to say,you just need to tell us your brewery's real condition,then our team will design suitable tanks suitable to your brewery.

Our Service:

1.As owning an experienced and creative engineering team, we could offer you professional solutions for your plant and equipment.

2.If you already have solutions, we would fabricate the equipment exactly as per your request.

3.We could offer you training of brewing craft beer and operating equipment if needed.

4.Equipment can be customized according to your request.

5.36 months warranty.

6. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
