| Thickness of material (mm): | |
|---|---|
| Insulation: | |
| Material: | |
| Manhole: | |
| Quantity: | |
DGET-1500L
DGET
8438400000
We design and produce a line of complete microbreweries to your specifications. Alternative brewhouse configurations are of 2-vessel, 3-vessel styles and customized. To guarantee breweries’ reliable performance, we use quality stainless steel, fittings, and various parts, depending on our good craftsmanship, deep experience and technology in brewing industry. Especially, we focus on your convenient running breweries, by learning your special specifications and realizing them on the brewing systems.

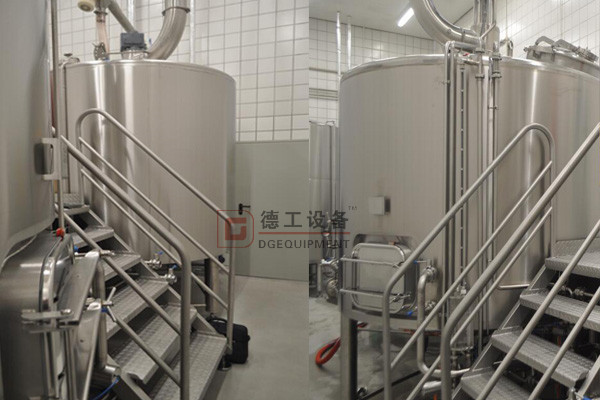

Side view of brewery equipment
| Brewhouse system description： |
All material according to standard. (Certification is available upon request.)
Inner Shell: 4mm, 304 Stainless Steel
Outer Shell: 2mm,304 Stainless Steel
Inner cooling jacket design pressure 3bar
25% head space for fermenting process.
Minimum 3 inch Thermal Polyurethane Insulation with both cone and shell coolant jackets.
Chloride ion barrier paint on the out surface of the inner shell to prevent any potential corrosion to ensure longevity.
Tank inner side is polished within 0.6µm sanitary finish.
Tank outside is 2B or #4 (brushed stainless) stainless steel plate
Shell and bottom cone cooling jacket for better temperature control.
Pillow Plate on shell body and cone;
Hook outside on the shell for ladders.
Other customization possibly available upon request.

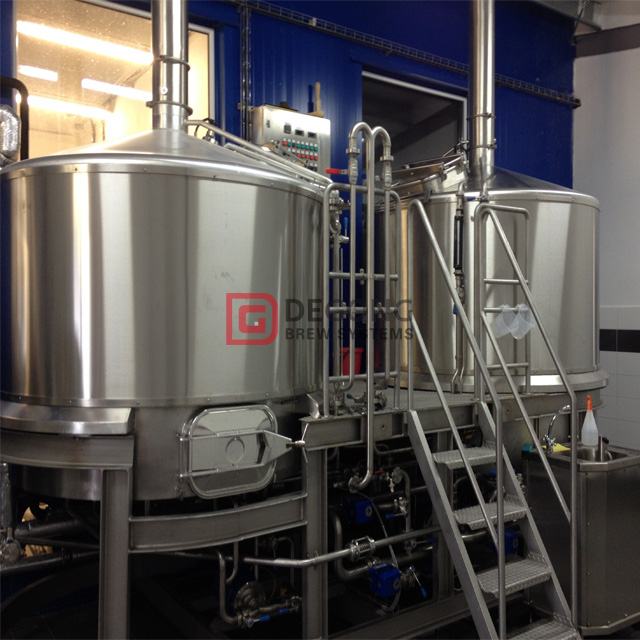

2 Vessel brewhouse equipment with steam heating
Options:
· Integrated CIP On-Demand System
· Full-Automation PLC Control System
· Hot Liquor Tank –Designed and Sized for Double Brew efficiency
· Cold Liquor Tank –Fully insulated and integrated
· Mash / Lauter Tun Rakers
· Air Actuated Automatic Butterfly Valves
. All brewhouse pipelines are used automatic argon protect welding.
Brewhouse system steps
Brewhouse Details:
2,3,4 and 5 vessels can be avaiable
All the tanks materials are made by 304 Stainless steel
304 stainless steel operate platform and stairs
Glass manways
100L-20000L volume system can be available
Grain mill and screw conveyer (optional)
Plate heat exchanger
Stainless steel 304 pump with ABB or Siemens motors
Automatic and Semi-automatic control for choice,PLC or mobile control can be available
Racker and upper manway
Domed head and spent grains hatch
| Fermenter technical parameters |
The task of brewer yeast in the primary fermentation stage is to convert part of the sugars in the wort into alcohol. At the set degree of fermentation the fermentation process is interrupted (not to be the full conversion of 100 % sugar).
This section includes all tanks designed to the primary fermentation of beer.
A group of fermentation tanks
| Conical fermentation tank cooling jacket for craft beer | |
Material: | SUS 304 |
Isolation: | Polyurethane100 mm |
Net Volume: | 1500 L |
Total Volume: | 1780 L |
Dimensions: | Ø 1400 x 2900 mm |
Top Bottom Angle of the Tapered Part: | 60° |
Weight of Empty Vessel : | 360 kg |
Weight of Loaded Vessel: | 920 kg |
Max. Working Pressure in the Vessel: | 2.5 bar |
Max. Working Pressure in miller jacket: | 1.5 bar |
Dish Head: | Domed |
Lower Bottom: | Conical |
Legs: | Adjustable, 4 pieces |
Cooling jackets: | Independent, in the cylindrical and conical part; |
Cooling area | 4.1 m |
CIP Arm: | DN 32/40 with DN 32/40 valve, 1 pc |
Drain Outlet: | DN 32/40 with DN 32/40 valve, 1 pc |
Beer Inlet and Outlet: | DN 32/40 with DN 32/40 valve, 1 pc |
Spray Ball: | Screw connected, 1 pc |
Man way door: | 350 |
Vacuum Overpressure Safety Valve: | DN 50 at the upper bottom 3 BAR 1 pc |
Sample Cock: | DN 25 |
Electronic Temperature Sensor: | PT 100, 1 pcs Adopted with 1 additional sensor slot in the middle of cylinder part DN25 |
Bimetal Temperature gauge | DN 25 1 pc |
Quick installed level gauge | DN25 1 pc |
Bund device with Manometer: | DN 32 |

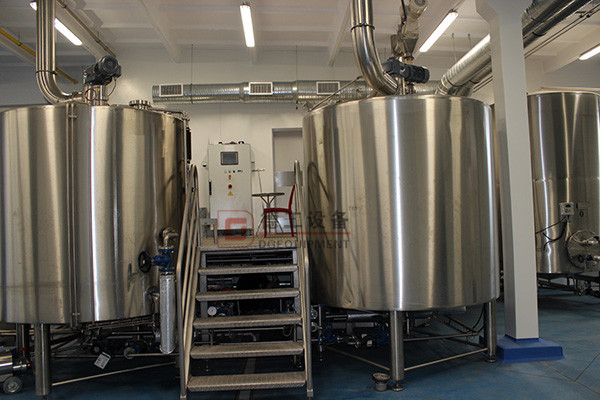

Brewery equipment in plant

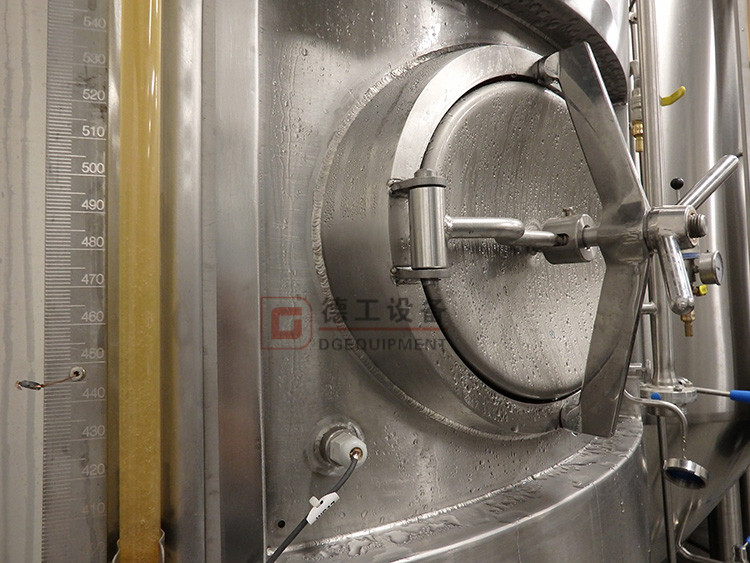

Side manway

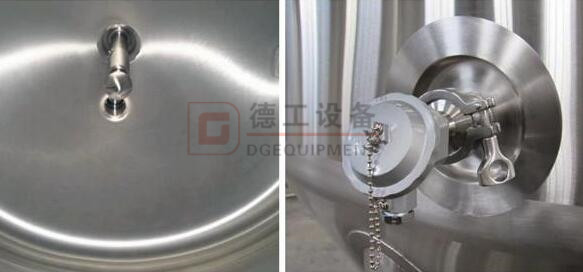

Spray ball and thermometer
| Our company: |
Certification
Partner
| Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Ready for shipment
| Contact information: |
If you are interested in our craft beer equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
