Reverse Osmosis is an equipment to purify the saltine water with the action of pressure difference of semi-permeable membrane.It is effective with asbestos,taste,colour and odour producting chemicals,particulates,total dissolved solids,turbidity and radium.RO system is widely used in water supply treatment,purification of tap water,brackish water,pure water and ultrapure drinking water production,power stations,electronic industries,and medical treatment.
|Type of Control:|
250LPH water treatment equipment
RO system is widely used in water supply treatment,purification of tap water,brackish water,pure water and ultrapure drinking water production, power stations,electronic industries,and medical treatment.It is capable of removing more than 97% of total dissolved solids(TDS),about 99% of organic and bacteria in the feed water.
Mechanical water filters are intended for cleaning the water from various sediments (sand, clay, etc.) traveling through the water pipeline and from trivalent iron. Filter operating principle: the filter filters water through a filler Aqua sand and Antracite. Back-flow water is used for regeneration (restoration of filtering properties when it becomes dirty).
|250Lph RO water treatment equipment|
E. Voltage: 110V/220V/380V, 50Hz/60Hz, single phase/3phase

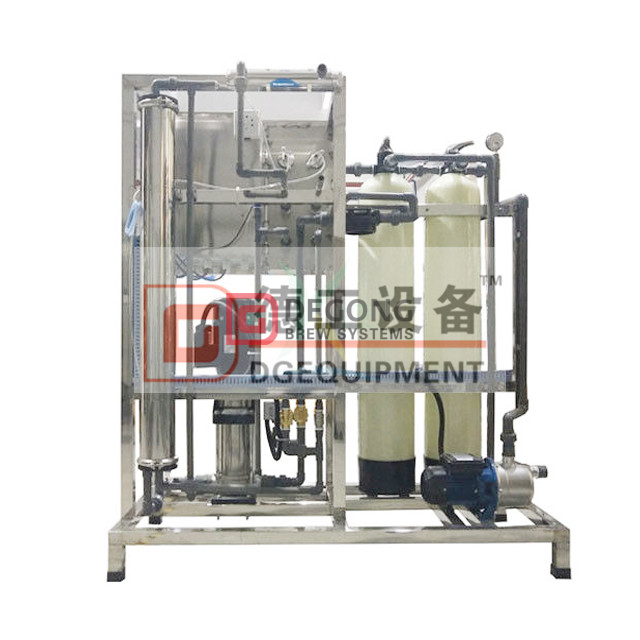

250LPH RO Water Purifier Machine
Raw water tank + raw water pump + quartz sand filter + activated carbon filter + water softener/chemical dosing system(optional) + security filter + high pressure pump + ro system + pure water tank + UV sterilizer(ozone generator) + precision filter + water supply point
|Components of water treatment equipment:|
Raw water pump: provide needed pressure for every pre-treatment filter;
Quartz sand filter: use fiber glass as housing, fill quartz sand, it can filter big particles impurities, suspended substances, colloids etc. Important to remove iron and sediments you mentioned;
Activated carbon filter: use fiber glass as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances;
Security filter: prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm;
High pressure pump: provide needed working pressure for RO system, ensure production capacity of pure water;
RO system: can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.
UV Sterilizer(for direct drinking): kill bacteria , viruses , cell damage , atc...

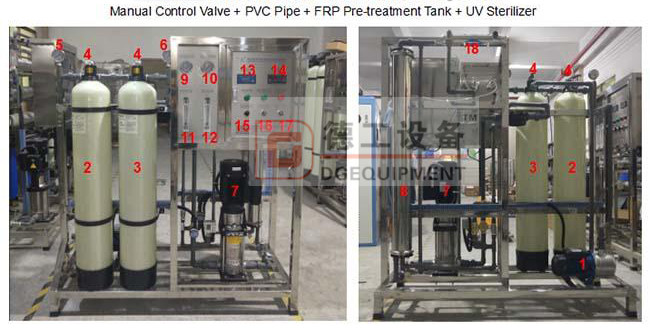

The components are as follows：
|1.Raw water pump||10.Output water pressure|
|2.Quartz sand filter||11.Dense water flow|
|3.Activated carbon filter||12.Pure water flow|
|4.Manual control valve||13.Pure water conductivity monitor|
|5.Inlet water pressure gauge||14.PC controller|
|6.Outlet water pressure gauge||15.Raw water pump control switch|
|7.High pressure pump||16.High pressure pump control switch|
|8.RO membrane||17.Total power ON & OFF|
|9.Input water pressure||18.Ultraviolet Sterilizer|
a. For main parts of the equipment such as brewhouse tank, fermentation tank, bright beer tank, hot water tank, glycol water tank,beer keg etc... the warranty period is 24 months.
b. For other components such as refrigeration unit, control components, etc... the warranty period is 12 months.
c. Our equipments have been approved by TUV. Our equipments is accord with the German standard quality.
