1000LPH Stainless steel RO Water treatment Reverse Osmosis System / Water Purifier for beer brewing
Home » Brewery Equipment » Water Treatment » 1000LPH Stainless steel RO Water treatment Reverse Osmosis System / Water Purifier for beer brewing

Product Detail

Share to:

1000LPH Stainless steel RO Water treatment Reverse Osmosis System / Water Purifier for beer brewing

Reverse Osmosis is a process in which dissolved inorganic solids (such as salts) are removed from a solution (such as water). This is accomplished by household water pressure pushing the tap water through a semi permeable membrane. The membrane (which is about as thick as cellophane) allows only the water to pass through, not the impurities or contaminates. These impurities and contaminates are flushed down the drain.

Quantity:
  • DGET-1000LPH
  • DGET
  • 8438400000


Reverse Osmosis is a process in which dissolved inorganic solids (such as salts) are removed from a solution (such as water). This is accomplished by household water pressure pushing the tap water through a semi permeable membrane. The membrane (which is about as thick as cellophane) allows only the water to pass through, not the impurities or contaminates. These impurities and contaminates are flushed down the drain.


The process of RO water treatment system
Source water
          Source water pump       Quartz sand filter       Active Carbon filter       PP sediment filter        RO main machine      User

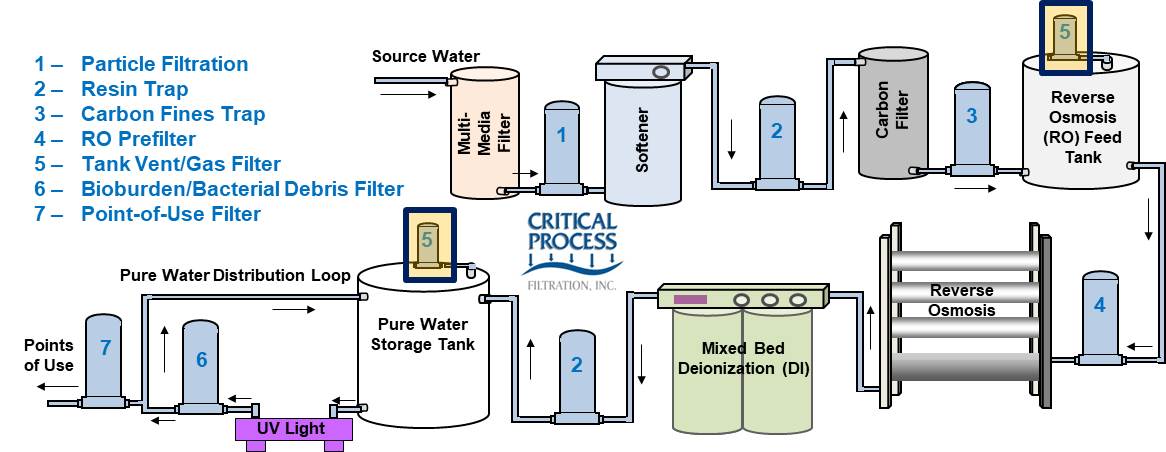

Industrial Water System Vent



Main Parameter of the 1000LPH reverse osmosis system



Name

Material or origin

Model

Quantity

Remarks

Source water pump

Lingxiao brand

BLC70/0.75Kw

1pc

380V,2M3/H

Sand filter

Glass fiber re-inforced plastic

ф300*1650*δ1.5mm

1pc

0.2Mpa, 2M3/H,

sand 150Kg

Carbon filter

Glass fiber re-inforced plastic

ф300*1650*δ1.5mm

1pc

0.2Mpa, 2M3/H,

carbon 50Kg

PP sediment filter

ABS

ф90*1000

3pcs

5μPP filter

2M3/H,0.2MPa

Membrane shell

FRP

4040

4pcs


Membrane

USA

ESPA4040

4pcs


High pressure pump

Nanfang brand

CDL4-160/3.0Kw

1pc


Conductivity display

China


1pc


Electromagnetic valve

China

DF25

1pc


Machine frame

SUS304


1pc


Flowmeter

China

2T

2pcs


Machine Pipe

PVC




Electrical elements, pipe joint, pressure meter, and package including.3.75KW

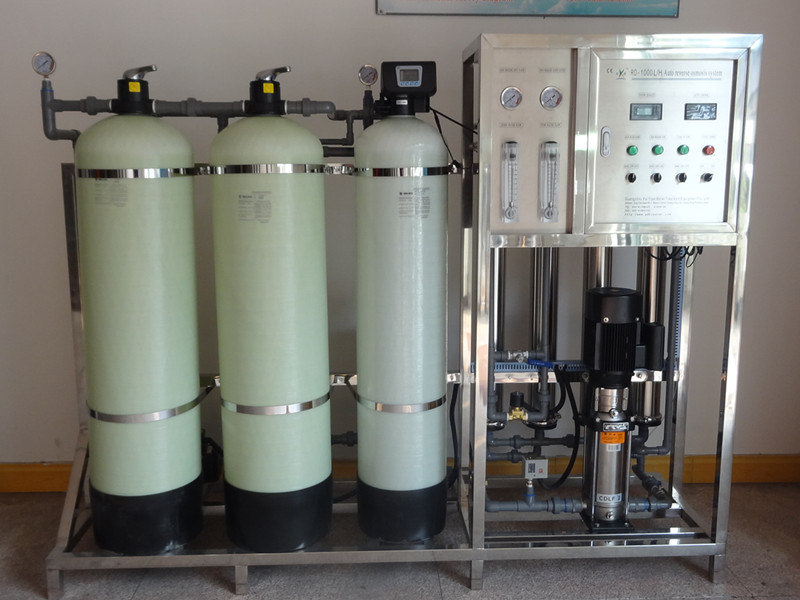

Kyro-1000L-H-Reverse-Osmosis-Water-System-Price-RO-Water-Treatment-System

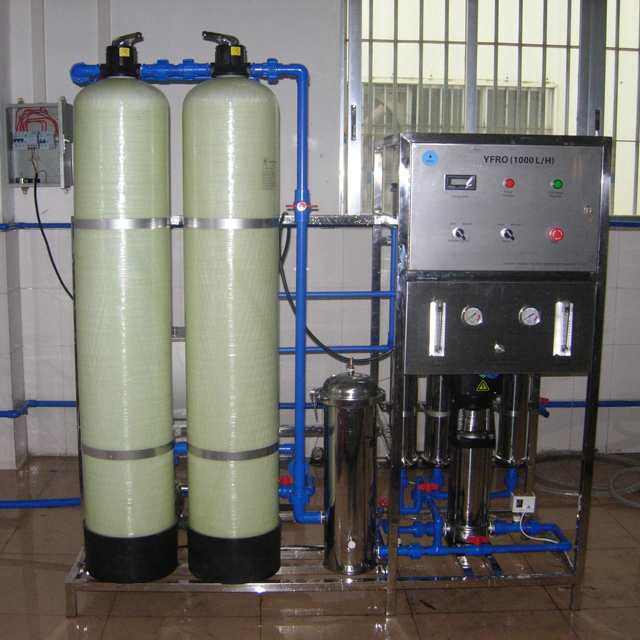

water treatment device (2)






Application/ RO Water Treatment System

1. Dairy, Fruit Juice, Vegetable Juice And Other Clear, Concentrated.

2. Animals And Plants (Aloe Vera, Mangosteen, Tea, Etc.) Effective Ingredients Extraction.

3. Soybean Protein, Oligosaccharides, Isoflavones And Other Extraction, Concentration.

4. Antibiotics, Amino Acids, Vc And Other Fermentation Broth Purification, Concentration.

5. Chinese Medicine (Bupleurum, Salvia, Scutellaria, Etc.) Injection Of Active Ingredients Purification, Separation.

6. Polysaccharides (Ganoderma Lucidum, Grifola Frondosa, Mushrooms, Etc.) Material Purification, Concentration.

7. Fluorescent Whitening Agent Desalination, Concentration.

8. Electrophore Paint Recovery And Water Reuse.

9. Pva Of Textile Desizing Wastewater Reuse.



If you have interest,please feel freel to get in touch with me.
