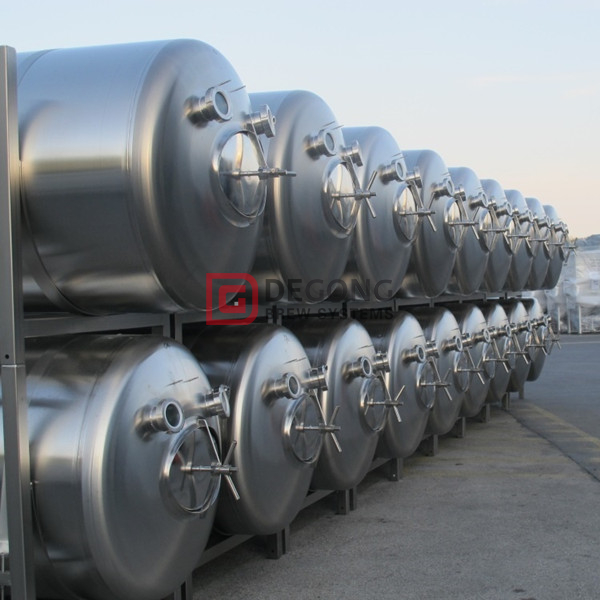

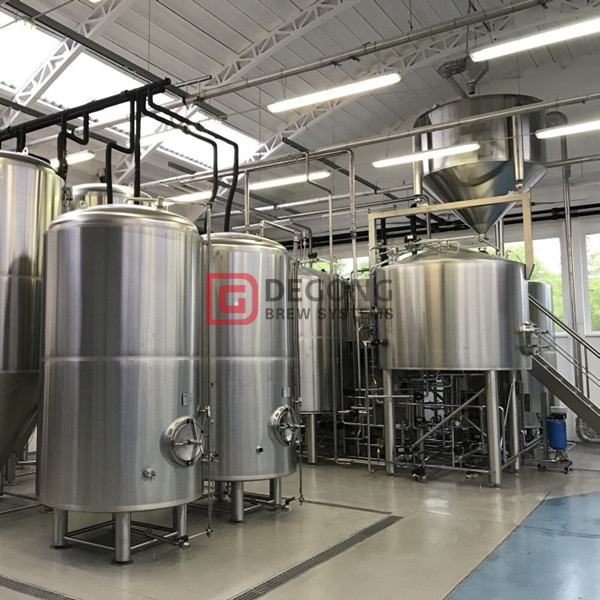

1500L Industrial customized steam heated beer brewing equipment for sale

1500L Turnkey industrial beer brewing equipment belongs to medium size of equipment. By far, our equipments have been sold to customers in Ireland, Italy, Blegium, Japan, American, Chile, Switzerland, Germany, etc and we have got the high praise from almost every one of them... We have also attended the Germany fair for twice. The obtained certificates for our equipments are CE ISO TUV UL.  If you are looking for a 500L brewing equipment, just send me a message.

Technical parameters:

Use – mashing, mixing and wort boiling.

Position – vertical

Appearance – Cylindric, domed / conical top with conical inner bottom.

- Material body  sus304

- Insulation- polyurethane 100 mm

- Cylindric and bottom milled steam heating – Max     3 bar pressure ensures 1°C/min heating speed.

- Complete pre-piped, pre-wired and test run prior to shipment.

Assembly:

- Top domed thermostatic hermetic closed glass manway door.

- Stainless steel mixer activated by 1.5 kw geardrive motor SIEMENS.

- Top domed lighted sight glass.

- Quick installed termo sensor PT100 connected to multi segments programmable controller

- Quick installed modular steam outlet condensator assembled with 0.5kw centrifugal water recycling pump for energy and water saving.

- Top domed cylindric hops grant for online hops insertion, adopted with wort circulation for effective mixing.

- Sanitary centrifugal 2.2 kw mash pump with VDF controller.

- Bottom mash inlet /outlet.

- Middle side wort/water inlet/outlet.

- Top dome wort /water inlet.

- Middle cone wort outlet.

- Quick installed Spray CIP balls X2 .

- Outlet/darainage connections –DN40

- Inlet connections –DN32

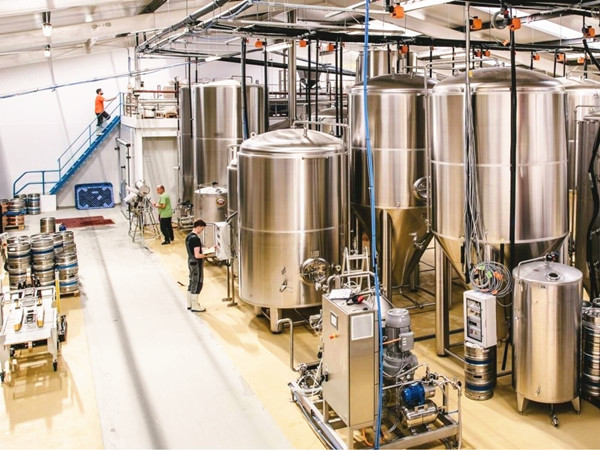

The fermentation area consists of a specific (at the customer’s choice) number of beer fermentation tank, also known as CCT (cylindrical-conical tanks) of a corresponding capacity and a control panel containing the automation for maintaining the desired beer temperature inside each CCT.

Beer fermentation tank has a cooling jacket over the entire height of the cylindrical part. CCTs from 1000 liters also have a separate cone cooling jacket. ССTs are insulated by polyurethane foam with 100mm thickness. The external covering of CCT is made of food mirror stainless steel.

The CCT is designed for internal pressure and can be used both for the primary fermentation and for the maturation (carbonation) of beer and the supply beer for filtering or bottling. The working pressure inside the CCT is up to 3 bar (can be adjusted by pressure bunging device).

Technical parameters:

Top or side manhole which depends on customer’s request

Dry hopping hole

Pressure relief valve

Temperature sensor

Thermometer

Pressure gauge

Pressure bunging device

Sample valve

CIP spraying ball

Overflow pipe

Racking arm

Carbonation stone assembly

Cooling jacket inlet & outlet

1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.

2.Is your goods has ISO9001 or CE certificate ?
Yes,all our goods has ISO and CE certificate. All machines are high quality goods.

3. Q: Are you a manufacturer?
We are the manufacturer of beer brewing equipment for more than 10 years.

4.Q: Can you do OEM or ODM?
Yes, we can do.

5.Q: How to control temperature ?
PLC or digital display meter can control the temperature via connecting with the PT100 sensor.

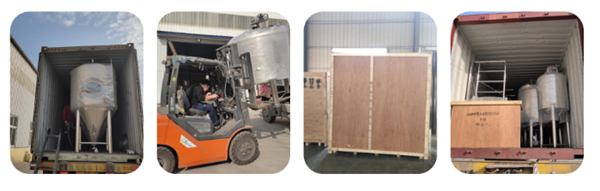

6. Which export port you use?
Commonly we will use Qingdao port, sometime,it can appoint as you like.

7.How to use your machine?
We have paper instructions in English, and we will teach till you do it well.

8.How about the warranty?
All our equipment main part has 10 year quality warranty. And we provide life long time technical support, spare parts and other assistance.
