10HL Industrial Commercial Stainless Steel Beer Brewery Equipment for Sale

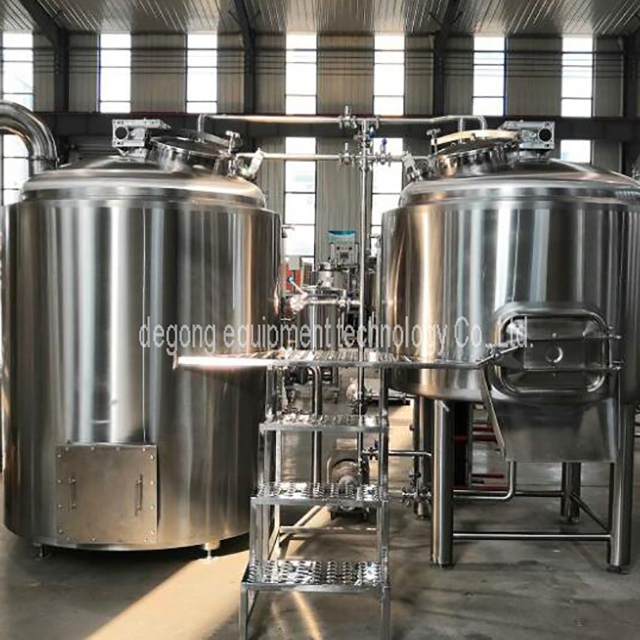

              10HL 3-vessel fully automatic stainless steel beer brewhouse

Inner of 10HL brewhouse – stainless steel 304, thickness: 3.0mm

25% of 10HL brewhouse as head space reserved

Outer of 10HL brewhouse- stainless steel 304, thickness: 2.0mm

Dimple jacket of 10HL brewhouse- stainless steel 304, thickness: 1.5mm

VFD wort pump and motor of raker & blender

Grist hydrator

Grain sight glass

Temperature controlled method

Insulation: PU, thickness: 100mm

Mirror polishing for inner surface

LED stackable light

Skid-proof working platform

CIP arm of 360 degree coverage

Tempered glass manhole

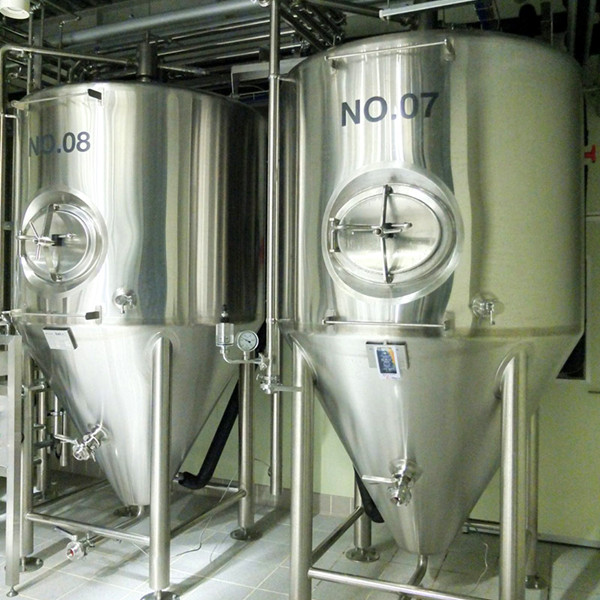

                              Fine polished 2000L beer fermentation tank

25% of 10HL fermenter as head space reserved

100% TIG welded with argon gas

Inner of 10HL fermenter- stainless steel 304, thickness: 3.0mm

Outer of 10HL fermenter – stainless steel 304, thickness: 2.0mm

Dimple jacket as 10HL fermenter- stainless steel 304, thickness: 1.5mm

60 degree conical angle

Insulation of 10HL fermenter: PU, thickness:100mm

Dry hopping hole

Vacuum valve

Pressure gauge/manometer

Thermometer/temperature sensor

Side manhole

Mirror polishing for inside surface

Electronic flow meter

Sample valve

Racking arm

Dual glycol water cooling zones

Tubular glass level meter

Working pressure: 1.5-2 bar

Design pressure: 3 bar

Stainless steel raker, to spread out the grain cake. Can be left automatically. Automatic spent grain discharging. The sieve plate is totally made of stainless steel 304, heavy duty type. The sieve plate gap is less than 0.7mm

Top view of fermenter, the top of fermenter is stainless steel dished head. With lifting lugs, CIP arm, Blow-off arm, dry hopping hole, vacuum valve assembled.

Automatic valve bank which can save labor. Pneumatic valve for brewery equipment

Beautiful appearance with food grade stainless steel 301

A complete set of brewery system including brewhouse, beer fermenter, glycol water tank, control box, steam boiler, chiller, etc…

3D drawing of macro brewery system

– Free consultation service before, during, after sales; Layout in 3D or CAD drawings of your brewery

– Professional engineers going abroad for the installation, debugging, and training, all the travelling cost and locate food and hotel shall be affroded by the buyer
– The installation period is about 15 days including assembling brewing tanks and training the operators. It is free of charge within 15 days. The buyer will be charged USD50 per day for for each engineer for the extended period
– Round the clock assistance via Phone, Email, Skype, WhatsApp, MSN, or any other communication methods available to the customer
– Assist to purchase facilities by seller including bottling system, steam boiler, water treatment, etc should be installed separately. If needed, cost calculated additionally
– Brewing technology, brewing recipe, can be offered
– More spare parts are available to offered freely

DEGONG is a large manufacturer of beer brewing equipment, which the headquarter is located in China. Dedicate to beer equipment, beer fermentation equipment, beer bottling machine, beer keg filling machine, beer filter machine, wine production equipment, wine fermentation tank, pasteurizing equipment, water treatment equipment, steam boiler and so on. Provide the total solution to customer from designing, consulting, product to project implementation.

DEGONG was established at 2009, and we are world-renowned for professional beer equipment manufacturing and wine equipment manufacturing. We research and develop beer brewing system and beer bottling machine independently from 2012, and we have developed overseas market successfully.

Now we have established sales services network of more than 10 core agents,more than 100 distributors and project contractor. We have finished thousands of project.
