1000L Commercial Stainless Steel Beer Brewing Equipment Machine Customized for Brewing Craft Beer

We outfit 2, 3, 4 vessel and combination “combi” systems. Tank design, platform design, automation features and process piping are a few of the multiple ways in which DGET designs for space,for budget and for expansion.

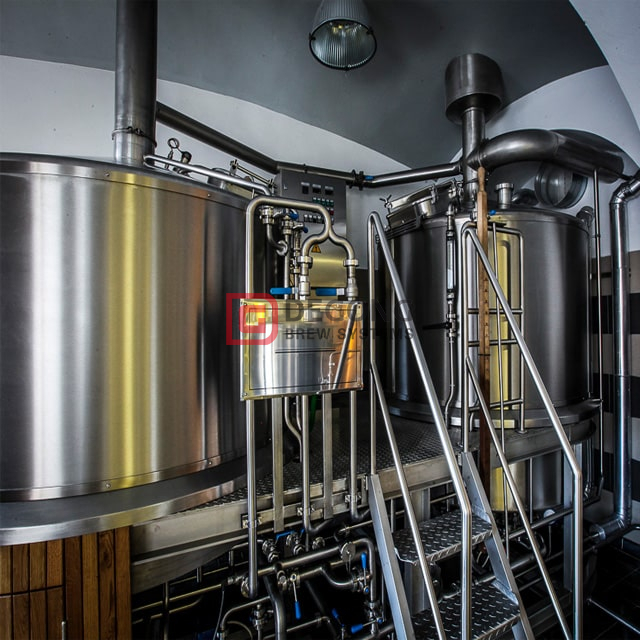

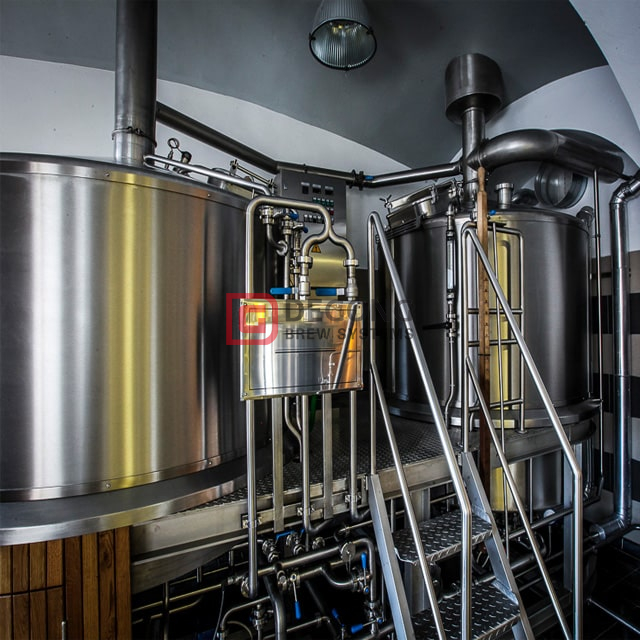

Craft brewery equipment

Brewhouse system standard configuration:

1. Mash / Lauter Tun with side grain out access

2. Brew Kettle / Whirlpool Vessel with integrated steam jacket and temperature control

3. Semi-Automated Controls with PLC & Remote Access Support

4. 304 Stainless Steel Sanitary Pumps with VFD Controls

5. 304 Stainless Steel Plate Heat Exchanger with integrated temperature controls

6. Manual Sanitary Butterfly Valves

7. Ergonomic and efficient 304 stainless steel Brew Deck with easy access to all vessels and brewing functions

8. Semi-auto control cabinet

9. High accuracy temperature sensor, PT100

10. Heating: dimple steam jacket/ stainless steel electric heating elements

11. Usage:Pub/hotel/restaurant beer brewery equipment

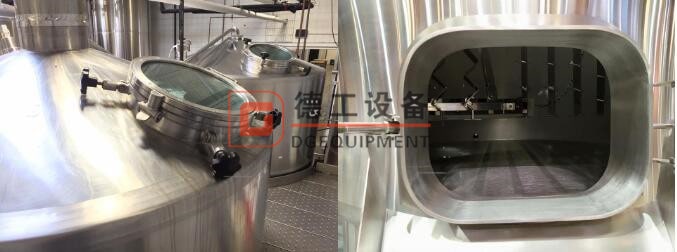

Top glass manway and spent grains port

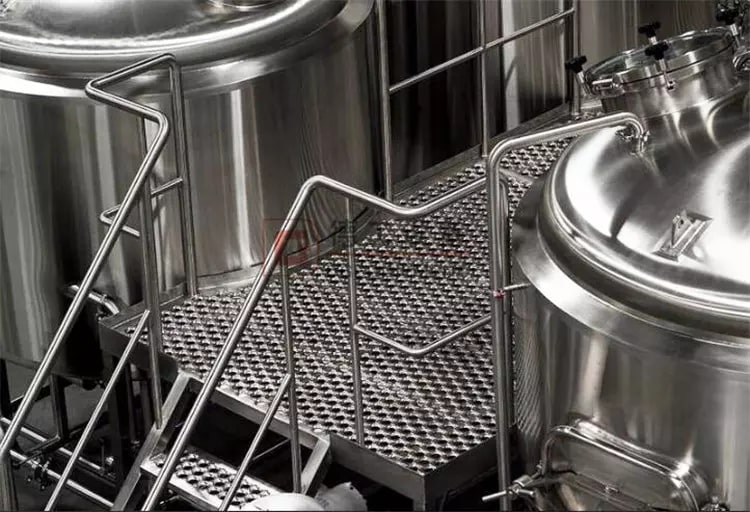

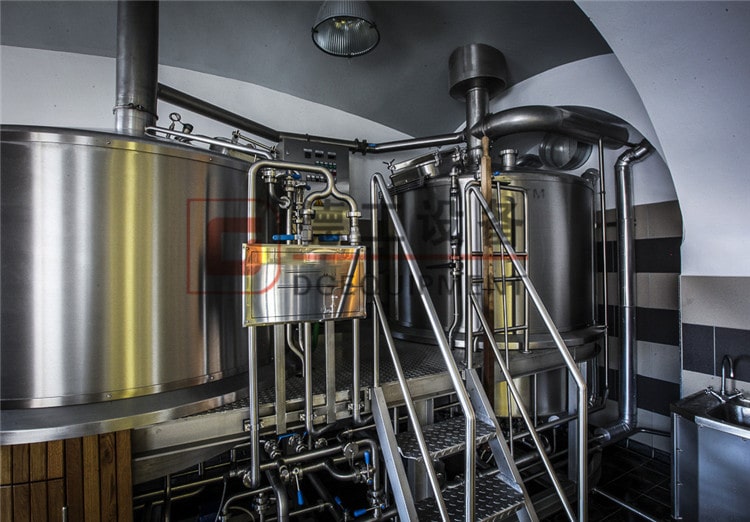

Stainless steel work platform

Options:

· Integrated CIP On-Demand System

· Full-Automation PLC Control System

· Hot Liquor Tank –Designed and Sized for Double Brew efficiency

· Cold Liquor Tank –Fully insulated and integrated

· Mash / Lauter Tun Rakers

· Air Actuated Automatic Butterfly Valves

. All brewhouse pipelines are used automatic argon protect welding.

Pipeline and wort pump

Brewhouse System Details:

. 2,3,4 and 5 vessels can be avaiable

. All the tanks materials are made by 304 Stainless steel

. 304 stainless steel operate platform and stairs

. Glass manways

. 100L-20000L volume system can be available

. Grain mill and screw conveyer (optional)

. Plate heat exchanger

. Stainless steel 304 pump with ABB or Siemens motors

. Automatic and Semi-automatic control for choice,PLC or mobile control can be available

These fermenters have the minimum characteristics that we advise for the professional production of beer. They are made of stainless steel 304, they are cylindro-conical at 60º and they have a double jacket in the cylinder and cone to control the temperature.

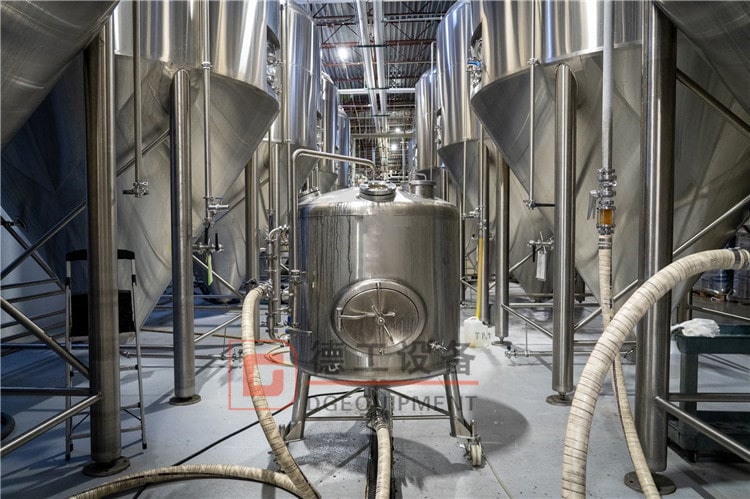

Cylindro-conical fermenters brewery equipment

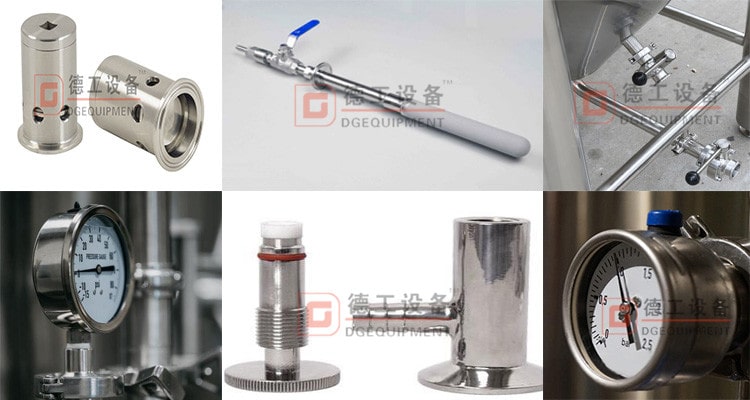

Carbonation stone,Pressure gauge,Sample valve,Thermometer

Features of beer fermenter:

Design pressure 0.3Mpa ;working pressure:0.12-0.15Mpa

4 stainless steel legs

Interior shell: 304 stainless steel, thickness:3mm

Exterior shell: 304 stainless steel, thickness:2mm

Interior and exterior finish bright polish to 0.6um

Side manway and 60 degree cone bottom

Racking port and discharge port with butterfly valve and fittings

Dimple cooling jacket with glycol inlet and outlet

Polyurethane insulation thickness 100mm for cooling jacket on side and bottom

Fully welded exterior shell.  CIP arm and spray ball and rotating tank racking arm included

Vacuum & pressure relief valve Pressure gauge, Thermometer and Sample valve

Temperature controler & solenoid valve

Stacked Horizontal lagering tank

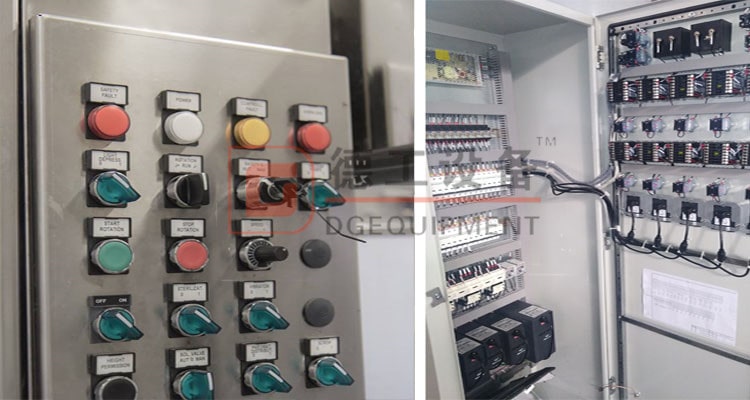

Control panel (mashing, fermenting, cooling)

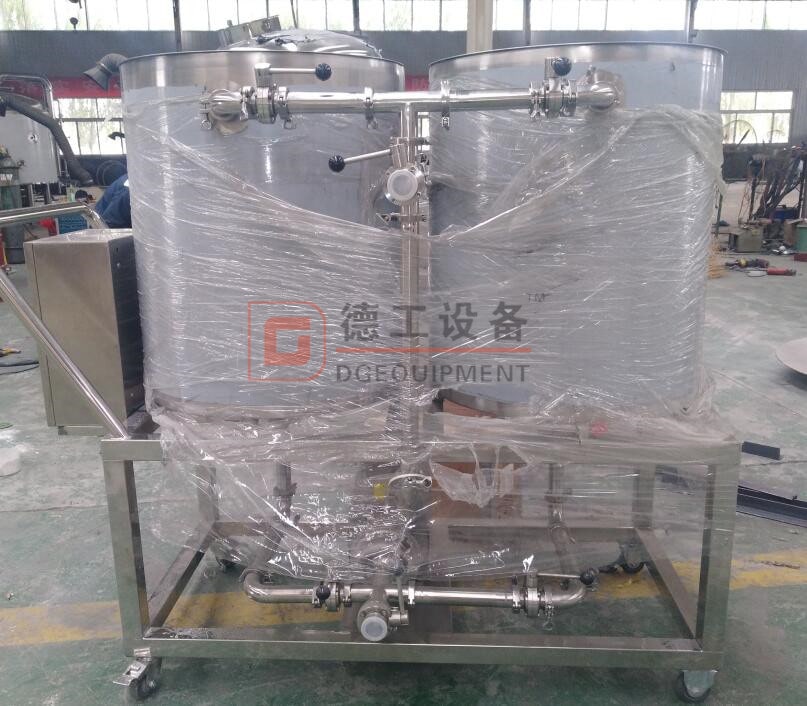

Movable cleaning equipment (remains in cleaning tank)

Whether you are a start-up, a well-established craft brewery or a market leading brand – you can benefit from DGET in the brewery industry. Our catalog of high-quality equipment ranges from complete systems to process units to components.

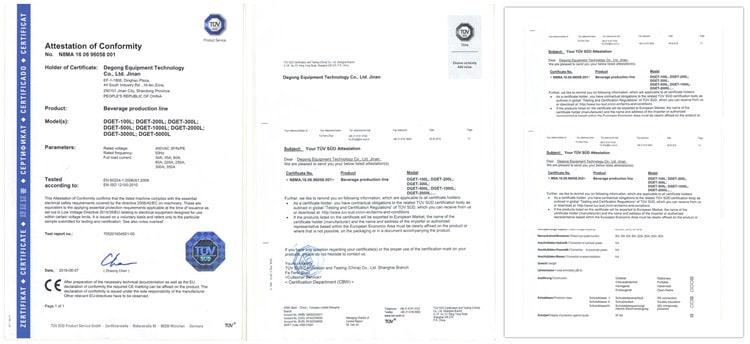

Certification

Services：

Installation. We send our team to the site, where they do everything for the brewery to start working.

Supervised installation. Our specialist supervises the works, performed by the client’s team.

Warranty and post-warranty maintenance. We undertake all warranty obligations.

All defects due to our fault shall be eliminated under the warranty. We also offer repairs post-warranty.

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.

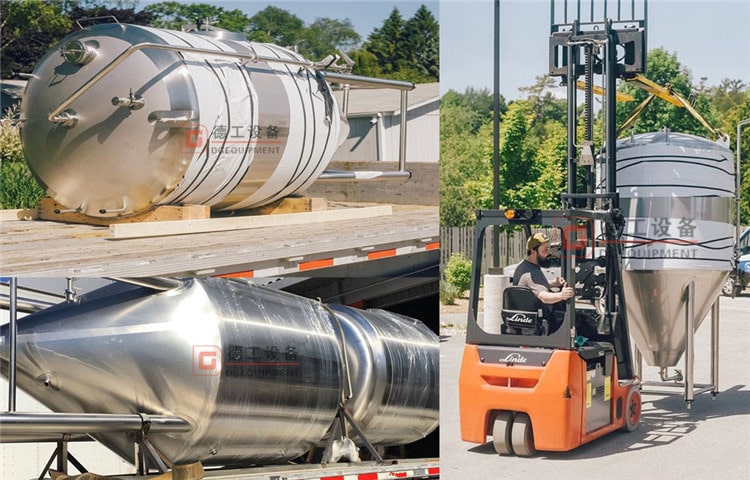

The cargo ready to load

If you are interested in our craft brewing equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
