10HL Beer Brewery Equipment Sus304 Turnkey Project Beer Manufacturing Plant

We manufacture and supply brewhouse that vary in size from 100 to 5,000 litres beer per brew. All our brewery equipment is suitable for brewpubs, restaurants, craft breweries and beer production. DEGONG brewery systems are turn-key and consist of malt mill, heating, controls and installation and training.

Configuration:
Thickness of material (mm):
Heating method:
Manhole:
Quantity:
  • DGET-10HL
  • DGET
  • 8438400000

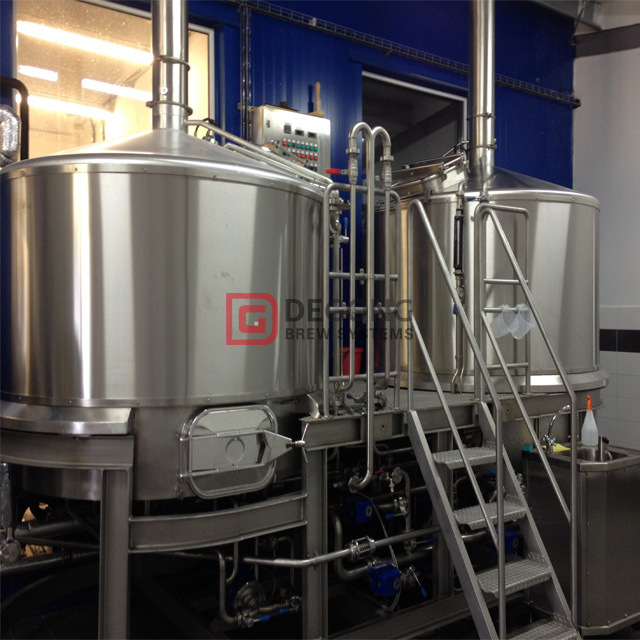

The brewhouse is used to get quality wort by mashing, lautering, boiling and whirlpooling etc. In the independent commercial or industrial beer plant, the brewhouse is usually customized to three even four vessel for getting a super output, 4-5 batches per day. Accordingly, the brewmasters would work in shifts to keep the brewhouse running at day and night. In order to save labor efficiently, the control system of brewhouse equipment usually be much more automatic, such as the pneumatic valve etc. It is in compliance with modern brewery standards and specifications. Besides, in some beer plant, the brewmasters would add secondary ingredient as adjunct starch source, like rice, corn etc.


A complete system consists mainly of the parts shown in the table below.

Beer brewing equipment/micro brewery system


Components

Specification

Milling System

Miller

Double Roller

Heating System

Boiler (steam heating)

Electric, steam and direct fire heating

Brewhouse System

Mash / Lauter tun

Heating jacket
Material: SUS 304/316 or Red copper

Boiling / Whirlpool Tank

Heat-exchanger

Plate type



Fermentation System

Fermentation Tank

Top manway/Side manway

Yeast Adding Tank

SUS304 Stainless Steel



Refrigerator System

Refrigerator machine

With control system

Pump / valve


Ice water tank

Fluorine filling



CIP Cleaning System

Acid Tank

Sus304 full welded

Alkali Tank

Pump


Control System

Control Cabinet

Semi-automatic




Main technical parameters


003

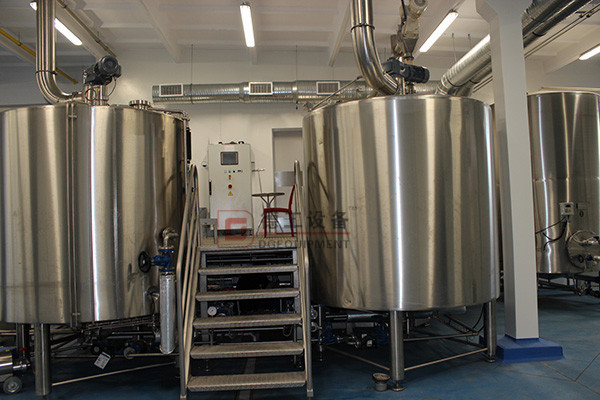

3-vessel brewhouse


Structure:

10HL mash / lauter tun+10HL kettle tun+10HL whirlpool tun+20HL hot liquor tank

Capacity:

10HL

Dimension:

Φ1960x3400mm

Material:

Stainless steel 304

Heating way:

Steam heating(recommend)/electric heating/direct fire heating

Electric power:

3 Phase,380V,50 Hz


02

Platform,pump and raker


未标1

Cleaning spray ball ,pressure gauge etc.

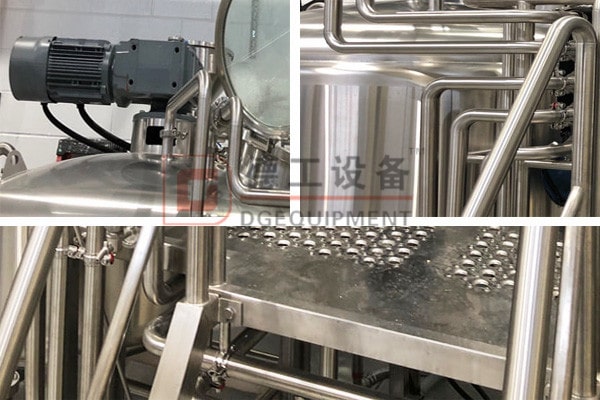

Main Configuration:

A. 10HL mash/lauter tun with steam heating

-2mm exterior shell and 3mm interior shell

-Glass manway

-Agitator with VFD controled motor and turbine reducer

-Grain rake with VFD controled motor and turbine reducer

-Automatic lifter of spent grain scraper blade

-Inline wort lauter sight glass

-Laser cutting V-wire False Bottom/Filter

-Bottom mounted grain outdoor



B. 10 HL brew kettle with steam heating

-2mm exterior shell and 3mm interior shell

-Glass manway

-Agitator with VFD controled motor and turbine reducer

-Sanitary leveling sight glass

-Steam vent with condensate ring for kettle stack



C. 10HL whirlpool tun

-2mm exterior shell and 3mm interior shell

-Glass manway

-Anticlockwise Tangential whirlpool inlet in Northern Hemisphere

-Clockwise tangential whirlpool inlet in Southern Hemisphere


001

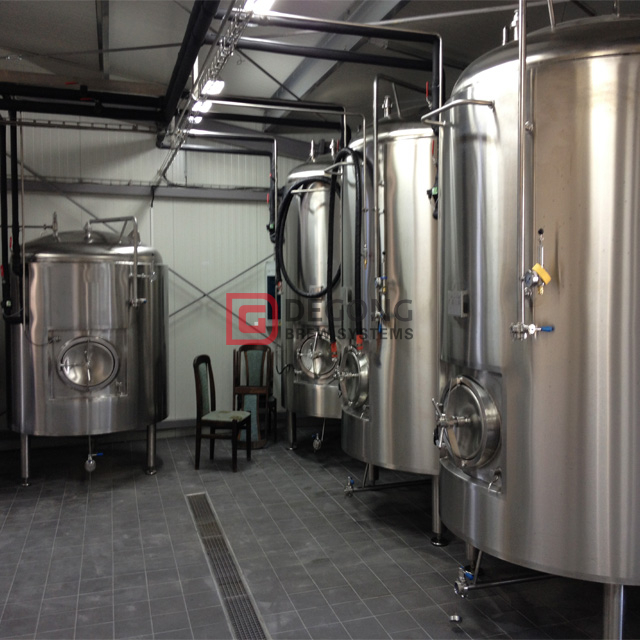

Fermentation tank with top hatch and brite tank

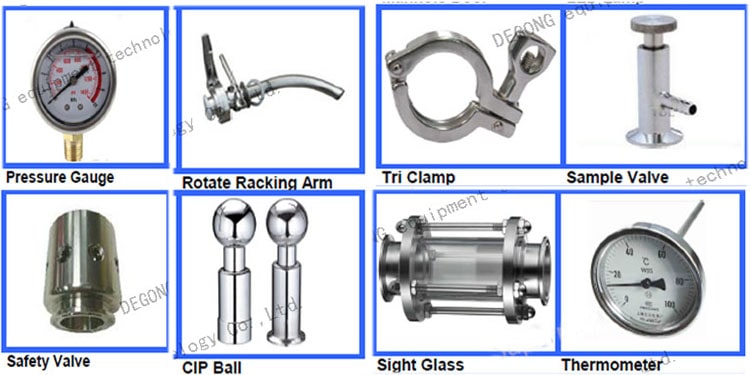

Fermentor features:

All connections are fully welded Tri Clamp fittings

0.12 -0.15Mpa operating pressure; 0.3Mpa design pressure

Pressure gauge

Versitile port for dry hopping, CIP, and the pressure relief valve

Sampling valve

Thermowell for thermometer

Carb stone with 1/4 in ball valve

Blow off cane ,ball valve

Polyurethane insulation jacket

Custom ss butterfly valves with racking arm

Stainless lower shelf

Adjustable feet

Made from 304 stainless steel


Tank and System Controls

We can offer complete tank and system controls for any critical parameter of your process including:

Glycol chilling and cooling controls – solenoid, check valve, or pressure sensor actuated

Steam or other heating controls – globe, gate, pressure sensors, or solenoid actuated

Water flow controls, backflow preventers – filtration systems and controls

Programmable digital controllers for valves, solenoids – temperature, pressure and flow controls

PC controlled systems – standard or custom software control packages

Other control features and options available—semi automated or automated
