10BBL Customizable Commercial Used Beer Fermenting Brewery Equipment Stainless Steel Fermentation Tank

Our 10 bbl brewhouse is an excellent small to medium brew pub system!  This 10 bbl brewing system is easily expandable as demand grows, and is an ideal brewing system for the beginning entrepreneur, restaurateur and artisan. Our 10bbl brewhouse is built to last and comes in multi-vessel configurations, with brew kettle and mash tun included.  Engineered with premium virgin 304 stainless steel and finished with a mirror polish, it is guaranteed to turn heads once your brewery doors open.  The quality of this 10 bbl brewing system is unlike any other brewing system on the market.  It comes pre-piped and, except for utility or steam connections, and does not require skilled

There are a million different ways to configure your 10 bbl brewhouse.  Here are some of the included features:

Fast and easy setup

Advanced touch-screen controls from with remote-control capability

Insulated mash tun with rakes, plow and grist hydrator

Insulated electrically-heated brew kettle

Glass wort grant with automated pump controls

Hard piping and platform

Stairs with wheels for easy access under platform

On demand water supply control optional

10bbl mash tun is a necessary addition to any 10 bbl brewing system.  Mash Tuns are essential to the fermentation process and are where the complex starches are converted into fermentable sugars.This 10 bbl insulated mash tun (lauter tun) will help the brewer maintain a constant, even, mash temperature.  The RAKES are used for better efficiency and ease of use, and the PLOW will help empty the mash tun by scraping the grains out of the side manway.  The built in clean in place system (CIP spray ball) and rectangular manway will make this stainless insulated mash tun very easy to clean.

Brew kettles are designed with enough capacity to allow for head space for foaming, evaporation, and shrinkage due to cooling.  This 10 bbl brew kettle has the ability to both boiling and whirlpool, which will free up valuable floor space in your brewery and will save you money on brewing equipment.

This 10 bbl electric brew kettle is also available with insulation (for efficiency) and bolted down footings (for safety).  It would be a great addition to building an automated system using our basic or advance control panels.

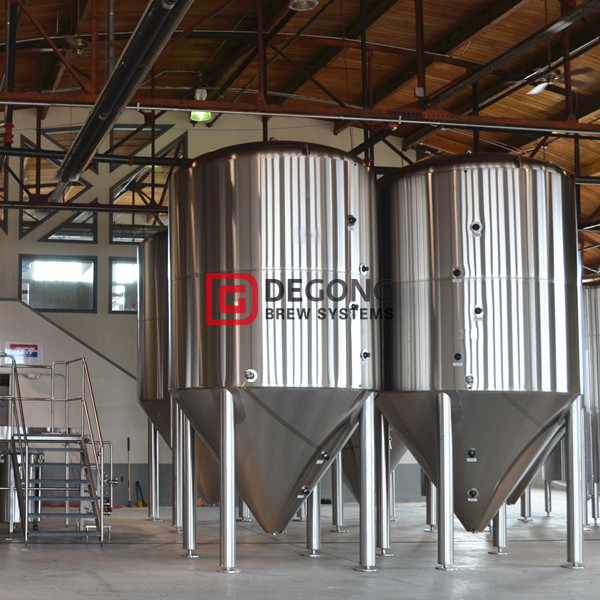

This 10 bbl conical fermenter features two-zone glycol jacketing that will allow you to precisely control fermentation temperature.  Designed for precision and brewing excellence, this 10 bbl fermenter also features a side manway for more effective cleaning via CIP.

Features of this 10 bbl fermenter:

Shadowless Side Manway for more effective cleaning via CIP

Two-zone jacketing (cone and side wall) for more efficient cooling.

4" Dry hopping port on top of tank

Racking arm for clear transfer

CIP arm

Rotating spray ball

Sample valve for quality testing

(2) butterfly valves

Adjustable feet for leveling on uneven floors or fine height adjustments

Tank material thickness is 3mm

Jacket and outer shell thickness is 2mm

Cone has 60 degree interior angle

HEAT CONTROL: Our commercial grade stainless steel brewing systems for sale provide the ability to control heat from 0 to 100% (either in 1% increments on our Advanced panel, or infinitely adjustable with the dial on our basic panels.

SAFETY: We provide GFCI breakers that meet the NEC requirements for protection of human life on each element circuit for safety and better reliability in a wet brewery environment.

EASY TO CLEAN: Our systems have sanitary construction with food grade valves, sanitary welds and tri clamp fittings. Spend less time cleaning, and more time brewing delicious brew.

DURABILITY: Our brewing systems are engineered to commercial standards and are built to last.

WORT PROTECTION: Our Ultra-Low watt density elements, plus our ability to lower the element's power (which makes the watt density proportionally lower with our 0-100% adjustment), there is no scorching or off flavors.

LOW COST TO VENT THE STEAM:With our stainless steel commercial grade brew kettles, you use a low cost condensate stack or steam condenser to vent the steam. Steam MUST be properly ventilated to avoid serious mold and potential health safety issues in your building.

CE&TUV&ISO
