10BBL commercial industrial craft beer brewing equipment for sale

As one of the most ancient beverages, beer is generally brewed with malt, hops and yeast and water. Craft beer is becoming more and more popular nowadays. Unlike the industrial beer, craft beer enables brewmasters to brew with more creativity, inclusiveness, freedom and sharing, and drink with unknown, surprise, appraising and of course a great of fun. This explains why the craft beer market is growing so rapidly.

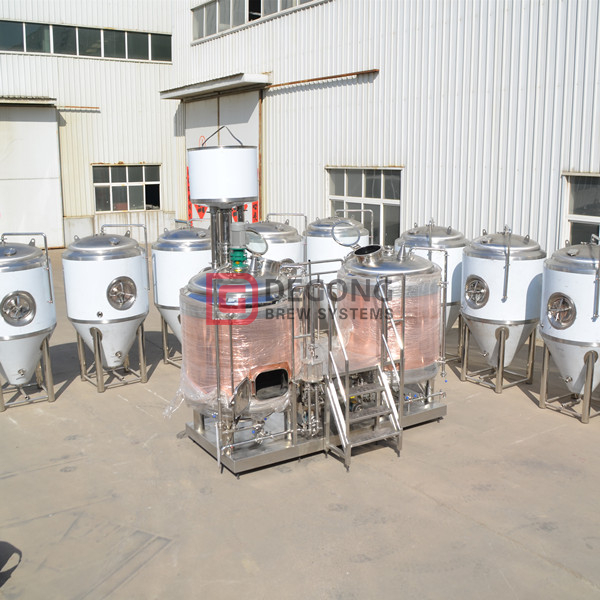

According to where the brewery equipment is used, our beer brewing equipment can be classified into home brewing equipment, hotel/resturant beer  brewing  equipment, microbrewery  equipment ,commercial brewery equipment, with various capacities. A whole set of turnkey brewing equipment includes Milling unit, Brewhouse unit, Fermentation unit, Chilling unit, Controlling unit, CIP unit and Water treatment unit etc.

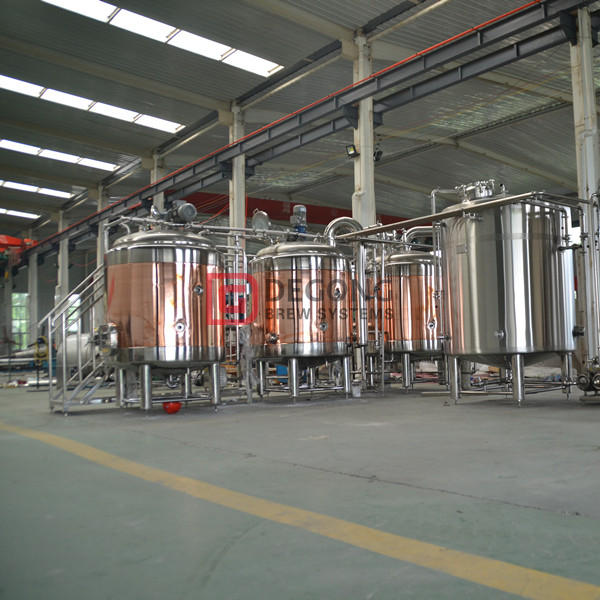

Beer mashing brewhouse is one of the most important processes in the preparation of wort. The equipment required is mash tank, lauter tank, boiling tank and whirlpool tank. Of course, in order to improve mashing efficiency, most of the customers will choose a hot water tank to prepare hot water in advance,which can save time.

Mash/Lauter

- Material: Food grade stainless steel 304 or Red copper which depends on customer's requirements

- Exterior shell: 2.0mm ; Interior shell: 3.0mm ; Dimple jacket: 1.5mm (Dimple jackets only exist when the heating method is steam heating method)

- Inner surface treatment: welds ground to Ra 0.2- 0.6µm without dead corners.

- 100% TIG welding with pure argon gas

- Insulation: Polyurethane-thickness 100 mm.

- Heating: steam, electric or gas

- Stainless steel (Tempered glass) top manhole

- Temperature controlled

- Jacket Pressure: design pressure is 0.3MPa, working pressure is generally less than 0.2MPa

- Sanitary liquid level indicator with valves

- Top mounted 360° coverage CIP spraying ball

- Stainless steel laser cutting False Bottom/ sieve plate

- Thermowell for high accuracy temperature sensor

- 4 pcs completely SUS304 heavy duty legs with leveling

- Grist hydrator for special request

- LED lamps

- ABB, SIEMENS, SCHNEIDER electric components

- VFD wort pump and rake motor if requested

Kettle/Whirlpool:

- Material: Food grade stainless steel 304 or Red copper which depends on customer's requirements

- Exterior shell: 2.0mm ; Interior shell: 3.0mm ; Dimple jacket: 1.5mm (Dimple jackets only exist when the heating method is steam heating method)

- Inner surface treatment: welds ground to Ra 0.2- 0.6µm without dead corners.

- 100% TIG welding with pure argon gas

- Insulation: Polyurethane-thickness 100 mm.

- Heating: steam, electric or gas

- Stainless steel (Tempered glass) top manhole

- Temperature controlled

- Jacket Pressure: design pressure is 0.3MPa, working pressure is generally less than 0.2MPa

- Sanitary liquid level indicator with valves

- Top mounted 360° coverage CIP spraying ball

- Thermowell for high accuracy temperature sensor

- 4 pcs completely SUS304 heavy duty legs with leveling

- Wort tangent inlet

- LED lamps

- ABB, SIEMENS, SCHNEIDER electric components

- VFD wort pump and blender motor if requested

Plate heating exchanger

- Function: Wort cooling

- Two stages for glycol water and city/cold water (single stage for optional)

- Completely 304 SS Corrugated plates

- Stainless steel back plates (Carbon steel cover for optional)

- Full detachable for regular thorough cleaning

- Effective Cooling Area: 12m²

- Design Pressure: 1.0Mpa

- Design Temperature: 170℃

- City water, glycol water, wort inlet and outlet

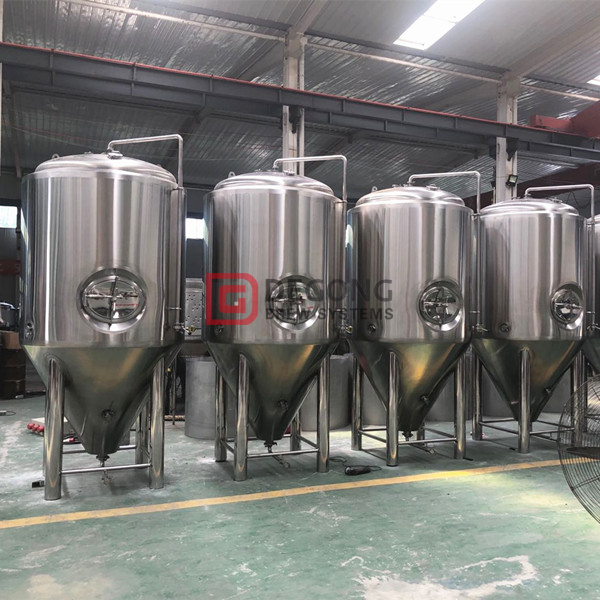

Fermentation tank

- Material: Food grade stainless steel 304

- Exterior shell: 2.0mm ; Interior shell: 3.0mm ; Dimple jacket: 1.5mm (Dimple jackets only exist when the heating method is steam heating method)

- 100% TIG welding with pure argon gas shield

- Interior Finish: Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional)

- Exterior Finish: Oil brushed finish（2B, 8K Mirror finish optional)

- Interior full polished to 0.2~0.4 μm without dead corner

-  Insulated with high density Polyurethane foam 100mm

- Glycol Jacket: Dimpled plate on cone and side

- Tank leakage test by water and pressured gas

- Jacket leakage test by water and pressured gas

- Sanitary side mounted manway with pressured door

- TC connected CIP arm with 360° coverage spraying ball

- CO2 blow-off arm with butterfly valve

- Full sanitary metallic sealed sampling valve

- Mechanical safe valve PVRV 2 bar on top

- Hydraulic shock pressure gauge on CIP arm

- Rotating racking arm and port on cone with butterfly valve

- Tri clamp discharge arm with butterfly valve

- Thermowell for high accuracy temperature sensor

- 4 pcs completely SUS304 heavy duty legs with leveling pad and legs support

- Sanitary level tube and valves TC for special request

Package:

- For the LCL cargos, the equipment will generally be wrapped with bubble films and then fit into the wooden box to prevent it from being scratched during the transportation process.

- For the full container load, it will be wrapped with the bubble films, after being fit into the container, the equipment will be fixed with iron wire.

Degong's obtained the CE ISO TUV certificates for our brewrey equipment. My company is the only one who's obtained the TUV certificate among all the suppliers in northern of China.

Q: Are you a manufacturer?

   A: Yes,we have been in providing the professional products in this field for 15 years.

Q: how to install the machine?

   Answer:we can intrust the install the machine by vedio, email ,picture.....if large project , we can arrange the worker help you to install it in your country .

Q: What is your available port of shipment?

   A:Qingdao port,shanghai etc.

Q: Is customized available?

   A: Yes, according to your detailed drawings you provide

Q: Are you trading company or manufacturer?

   A: We are factory and welcome to visit us at any time.

Q: How long is your delivery time?

   A: Generally single tanks need 20-30 days, for whole plant need 40-50days.

Q: Do you have CE and UL certification?

   A: Yes.
