| Material thickness: | |
|---|---|
| Insulation: | |
| fermentation tank Manhole: | |
| Quantity: | |

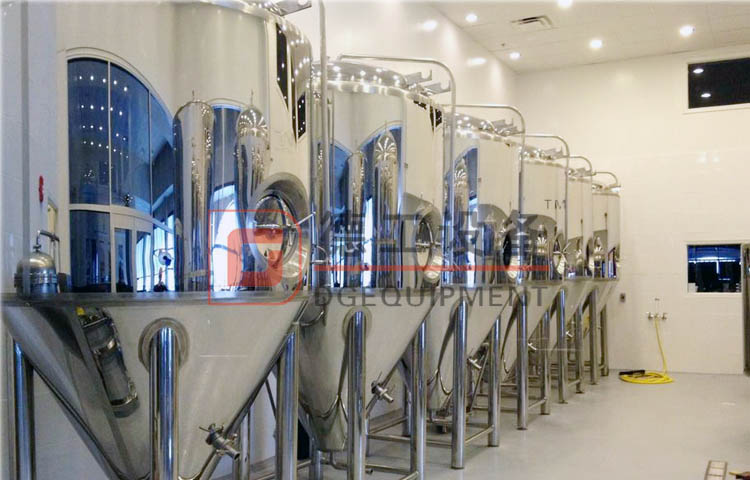

Generally our beer fermenter will be designed into a cylindrical cylinder, the bottom cover and top cover are butterfly or cone. The top of the tank will be equipped with manholes, mirrors and carbon dioxide recovery ports, feed ports, pressure gauges and spare ports. The bottom of the corresponding tank will be equipped with a feeding port and a sewage outlet. The lower side of the tank body is equipped with a sampling port and a thermometer (of course, the position of each type of interface is reasonably changed according to the customer's process requirements and site conditions). the fermenter Generally, a closed structure is adopted.
it can prevent the contamination of bacteria, facilitate the heat preservation and cooling, control the fermentation temperature, increase the amount of alcohol growth, reduce the loss, recover carbon dioxide, and have a high fermentation rate.
Quality: High quality Without driving leakage risk and nice appearance
Capacity: Can be customized
Processing: Fermenting
Thickness: 3mm
Volume design: Properly according to the capacity requests
Certification: ISO9001 / CE
Material: Stainless Steel AISI 304 or AISI 316
Warranty: 3 years
Dimple cooling jacket
The fermenting tanks has two layer, inner jacket thickness is 3mm, with dimple cooling jacket. The cooling jacket cover 80% area of the whole tank body, so the cooling efficient is much high.
| Items | Introduction |
| Volume | 10BBL or customized |
Raw Material | Food grade stainless steel or red copper cladding |
Tank Wall | Outer 2mm / inner 3mm. |
Insulation | Polyurethane, TH: 80-100mm |
Glycol jacket | Dimple jacket on the cone and side |
Polishing | Inside is Mirror polish |
If you are interested in beer fermenter, get in touch with me freely.
Generally our beer fermenter will be designed into a cylindrical cylinder, the bottom cover and top cover are butterfly or cone. The top of the tank will be equipped with manholes, mirrors and carbon dioxide recovery ports, feed ports, pressure gauges and spare ports. The bottom of the corresponding tank will be equipped with a feeding port and a sewage outlet. The lower side of the tank body is equipped with a sampling port and a thermometer (of course, the position of each type of interface is reasonably changed according to the customer's process requirements and site conditions). the fermenter Generally, a closed structure is adopted.
it can prevent the contamination of bacteria, facilitate the heat preservation and cooling, control the fermentation temperature, increase the amount of alcohol growth, reduce the loss, recover carbon dioxide, and have a high fermentation rate.
Quality: High quality Without driving leakage risk and nice appearance
Capacity: Can be customized
Processing: Fermenting
Thickness: 3mm
Volume design: Properly according to the capacity requests
Certification: ISO9001 / CE
Material: Stainless Steel AISI 304 or AISI 316
Warranty: 3 years
Dimple cooling jacket
The fermenting tanks has two layer, inner jacket thickness is 3mm, with dimple cooling jacket. The cooling jacket cover 80% area of the whole tank body, so the cooling efficient is much high.
| Items | Introduction |
| Volume | 10BBL or customized |
Raw Material | Food grade stainless steel or red copper cladding |
Tank Wall | Outer 2mm / inner 3mm. |
Insulation | Polyurethane, TH: 80-100mm |
Glycol jacket | Dimple jacket on the cone and side |
Polishing | Inside is Mirror polish |
If you are interested in beer fermenter, get in touch with me freely.
