1000L Wholesale Commercial Automated Steel Brewing Equipment for Sale

The set of 1000L brewhouse includes mash/lauter tank, kettle/whirlpool tank and a hot water tank that's double of capacity of mash tank. A small steel open tank as buffer tank. Brewhouse is always deemed as the heart of a brewery line, from the milled malt feed-in to plate heating exchanger, each process should be controlled precisely to ensure the wort is good enough for the next step - fermentation.

Quantity:
  • DGET-1000L
  • DEGONGET
  • 8438400000

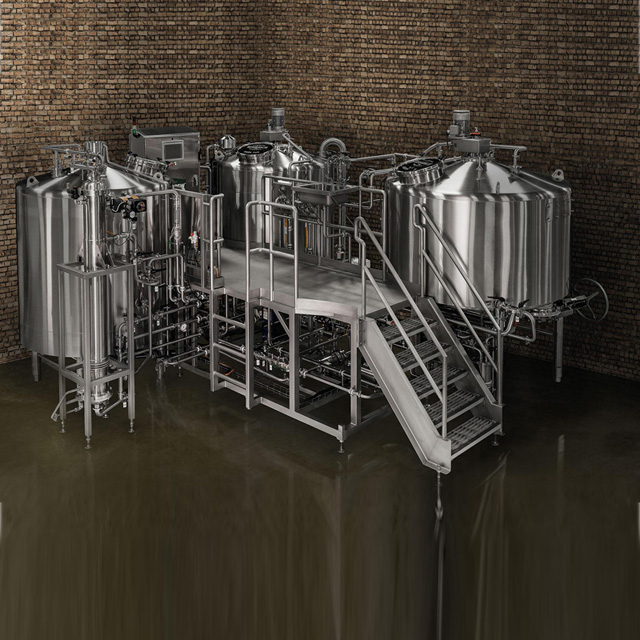

brewhouse

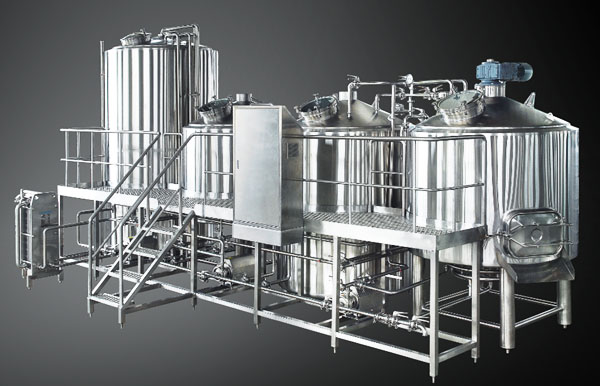

The set of 1000L brewhouse includes mash/lauter tank, kettle/whirlpool tank and a hot water tank that's double of capacity of mash tank. A small steel open tank as buffer tank. Brewhouse is always deemed as the heart of a brewery line, from the milled malt feed-in to plate heating exchanger, each process should be controlled precisely to ensure the wort is good enough for the next step - fermentation.


Standard configuration of beer brewhouse


Mash/Lauter tun

- stainless steel grist hydrator w/ hot & cold hydration inlet

- Upper and lower jackets(hot water or steam)

- Heavy duty false bottom with pillar support system

- CIP spray nozzles under false bottom

- Multiple wort drain locations

- Fully insulated vessel

- Food grade sanitary stainless steel

- SS CIP high-low rotary spray ball with 360 degree of coverage

- Interior light

- Sparge  ring assembly

- Top manhole (tempered glass)

- Side manway for automatic spent grain out process

- Automatic variable speed rake system and spent grain plow


5-1P62QF2153b_副本


Kettle/Whirlpool tank

- Upper and lower steam jackets

- Tangential whirlpool inlet

- Fully insulated vessel

- Stainless steel

- SS CIP high-low rotary spray ball with 360 of coverage

- Top manhole (Tempered glass)

- Interior light


wort whirlpool


Hot trub


Wort pump

- ABB food grade stainless steel wash-down pump

- VFD speed control


Whirlpool pump

- ABB food grade stainless steel wash-down pump

- VFD speed control



Wort grant

- Stainless steel cylinder

- Total wort volume approx 11 gallons

- Sight level glass

- Isolation valve

- Drain valve

- All sanitary tri-clamp connection

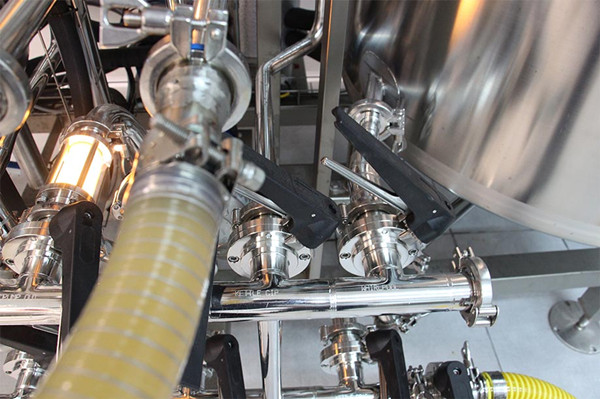

wort transfer


Wort aeration assembly

- Stainless steel pipe assembly

- Aeration stone

- Built in sight glass

- Sanitary tri-clamp connections


aerator


Standard configuration of fermentation tank

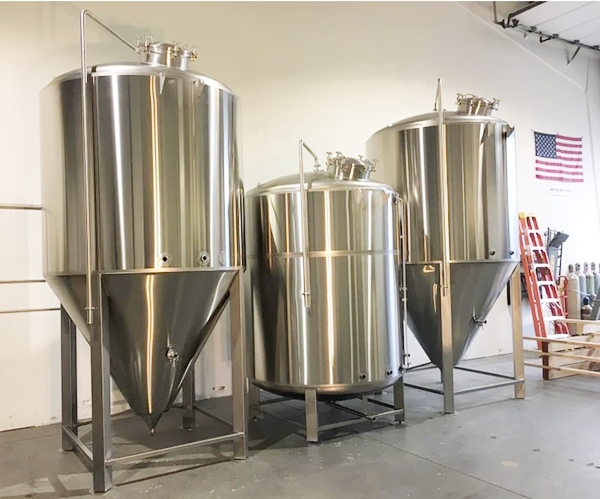

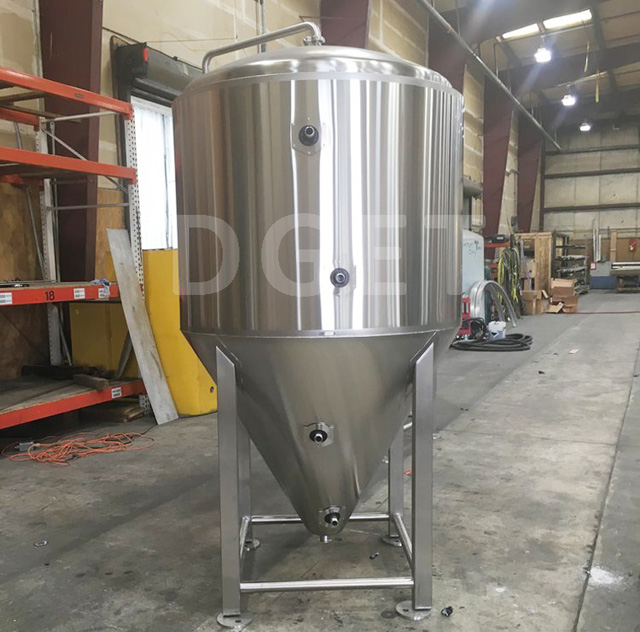

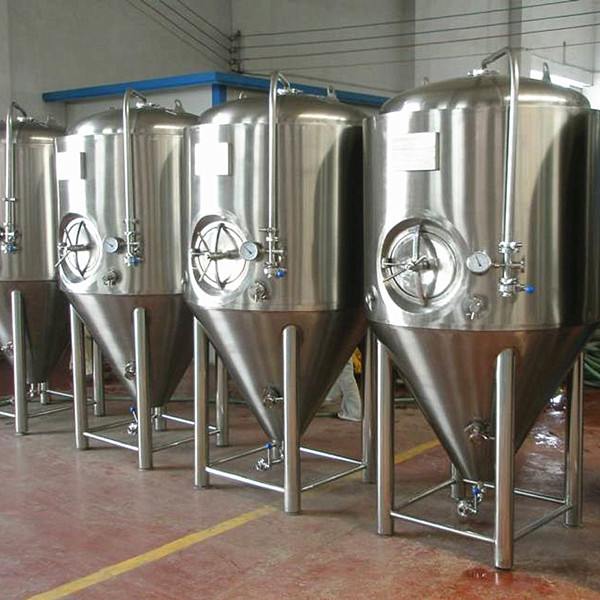

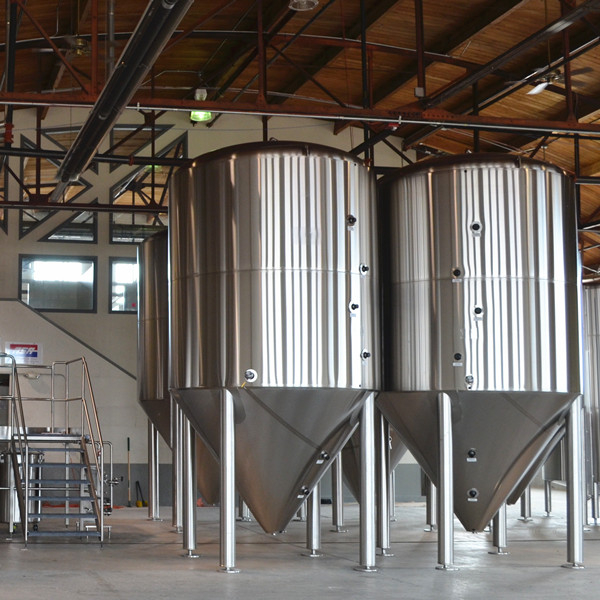

Fermentation tank


Fermentation tank


- Stainless steel 304 sanitary construction

- 100% TIG welded and sanitary polished

- Design pressure: 1.5-2 bar, test pressure: 3bar

- 4 heavy duty stainless steel legs with adjustable height and leveling footpads

- Interior shell: 304 stainless steel , thickness is 3 mm

- Interior is 2B and exterior finish bright polish, sanitary surface

- Tri-clamp sanitary fitting

- Vacuum & pressure relief valve

- Pressure gauge

- Thermometer gauge

- Sample valve

- Lifting lugs

- Ladder hooks, also designed to hold brewers hose when not is use

- Side manhole

- CIP arm and rotary spray ball 360 degree of coverage

- Dual zone cooling jacket with glycol inlet and outlet

- Rotation racking arm

- Dry hopping hole

- Thermo-well (Temperature sensor is also included)


valves


pressure gauge


Certificate


Certificate


CE ISO TUC certificates

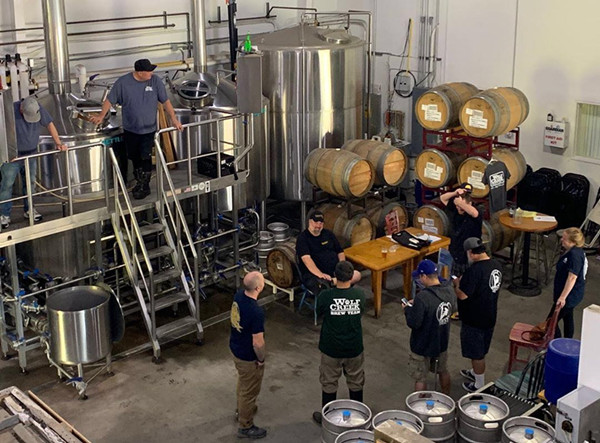

Customer show

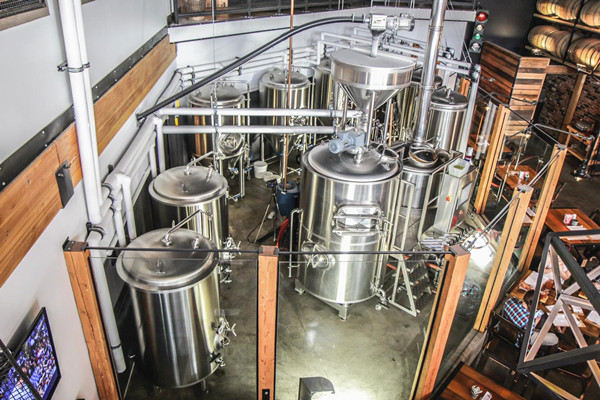

Marten-14_副本


b83277248f4dcd955164654fa8a7381_副本


22729092_133217133999106_6774057873353142187_n_副本


Brewing process

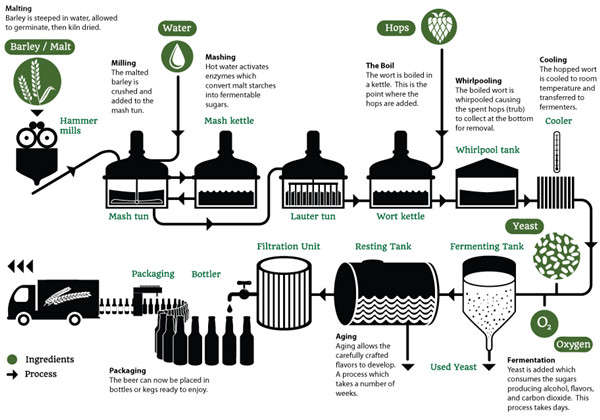

process diagram


Our services


– Free consultation service before, during, after sales; Layout in 3D or CAD drawings of your brewery

– Professional engineers going abroad for the installation, debugging, and training, all the travelling cost and locate food and hotel shall be affroded by the buyer

– The installation period is about 15 days including assembling brewing tanks and training the operators. It is free of charge within 15 days. The buyer will be charged USD50 per day for for each engineer for the extended period

– Round the clock assistance via Phone, Email, Skype, WhatsApp, MSN, or any other communication methods available to the customer

– Assist to purchase facilities by seller including bottling system, steam boiler, water treatment, etc should be installed separately. If needed, cost calculated additionally

– Brewing technology, brewing recipe, can be offered

– More spare parts are available to offered freely
