1000L Industrial Automated 2-vessel Craft Beer Brewing Equipment for Sale

Brewhouse is deemed as the heart of a set of brewery system. A brewery system with a wonderful brewhouse can help you brew a batch of good beer. For 1000L beer brewery system, it generally includes:

• Mash/Lauter tank

• Kettle/Whirlpool tank

• Stainless Steel Work Platform with Handrails

• 2000L Automated HLT

• Fully Welded Sanitary Process Piping System

• Complete Electrical Package

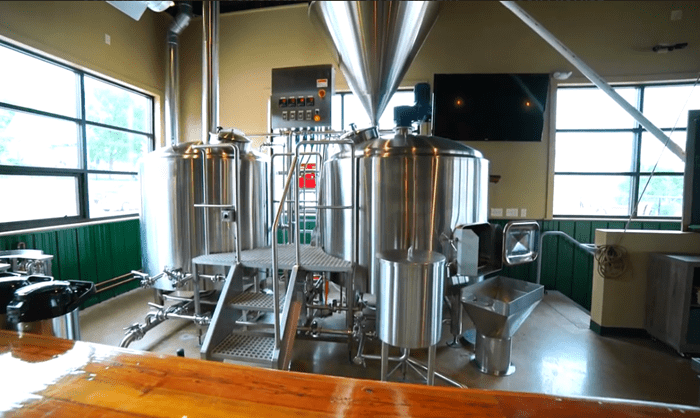

                                                1000L 2-vessel beer brewhouse assembly

Mash/Lauter assembly:

• All stainless steel 304 construction, dished top and bottom.

• Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.

• Internal mash grid assembly with (4) wedge wire removable screens for ease of cleaning.

• Sealed access door.

• Tempered glass top man door access.

• Thermo-well installed with RTD for measuring temperature in mash / lauter tun; What's more, RTD sensor is also provided

• Fully welded steam jacket with rear exit protruding steam/condensate nipples on main body.

• Heavy duty legs assembly with standard leveling pads.

• PU ( polyurethane) insulation with 14 gauge polished stainless steel outer shell.

• ABB/ Siemens / SEW reducer for raker

                                        Raker and sieve plate inside the mash/lauter tank

                                 Stainless steel seamless hard pipes with TC connections

                                      High quality steel 2-vessel automated beer brewhouse

                         Get the spend grain out of mash/Lauter tank through side man access

Kettle/Whirlpool tank assembly:

• All stainless steel 304 construction, dished top and bottom.

• Tempered glass top man door access.

• 4 pieces of heavy duty leg assembly with standard leveling pads.

• PU(polyurethane) insulation with 14 gauge polished stainless steel outer shell.

• Steam flue slip flange with condensation gutter and drain port.

• Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.

• Internally mounted/removable trub dam.

• Fully welded steam jackets with rear exit protruding steam/condensate nipples. Two jackets are installed on the side circumference of the tank and one is installed on the bottom dish.

• Thermowell installed with RTD for measuring temperature in brew kettle.

• Tangential wort inlet assembled inside the tank

• With VFD blender assembled inside the tank to stir wort

                                            Wort is boiled and whirlpooled inside the tank

Wort pumps:

• 2 hp 208/230V 3 phase motor.

• Pump mounted to the bottom of the access platform and complete with all piping connections.

• Material Inner (SUS304) thickness: 3.0mm; Outer (SUS304) thickness: 2.0mm; External-Jacket(SUS304) thickness: 1.5mm;

• Heat exchange area：2.69 ㎡

• Equipment with : cone 60°resist compression design，dripping

• 100% TIG welding with pure argon gas shield

• Interior Finish: Sanitary 2B finish, Pickled and Passivity; (8K Mirror finish optional)

• Exterior Finish: Oil brushed finish （ 2B, 8K Mirror finish optional)

•  Interior full polished to 0.2~0.4 μm without dead corner

• Insulated with high density Polyurethane foam 100mm

• Glycol Jacket: Dimpled plate on cone and side

• Stringent tank leakage test by water and pressured gas

• Stringent Jacket leakage test by water and pressured gas

• Sanitary side mounted manway with pressured door

• TC connected CIP arm with 360° coverage spraying ball

• CO2 blow-off arm with butterfly valve

• Full sanitary metallic sealed sampling valve

• Mechanical safe valve PVRV 2 bar on top

• Hydraulic shock pressure gauge on CIP arm

• Rotating racking arm and port on cone with butterfly valve

• Tri-clamp discharge arm with butterfly valve

• Thermowell for high accuracy temperature sensor

• 4 pcs completely SUS304 heavy duty legs with leveling pad and legs support

• Dry hopping port 4” TC with solid end cap

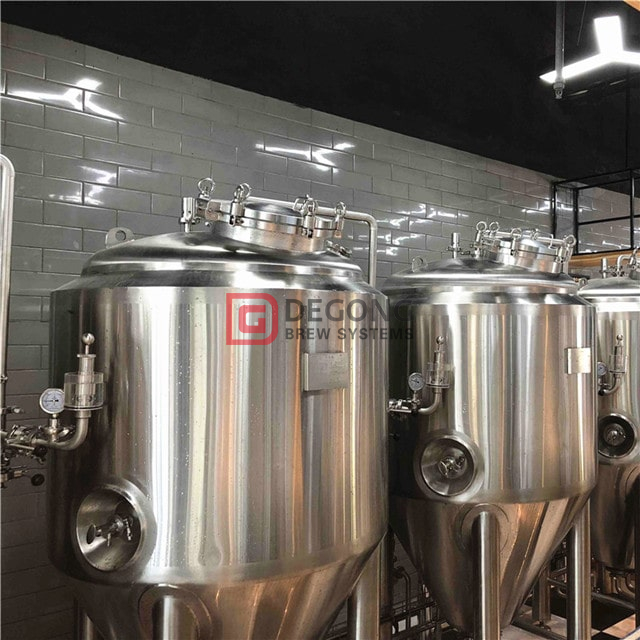

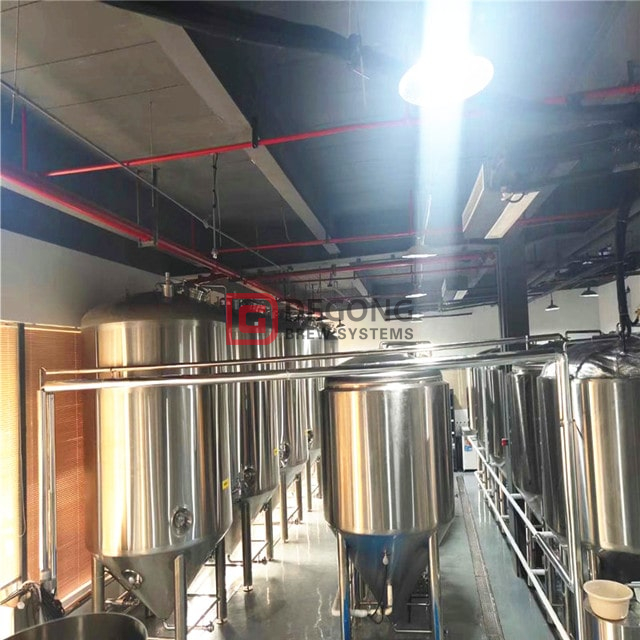

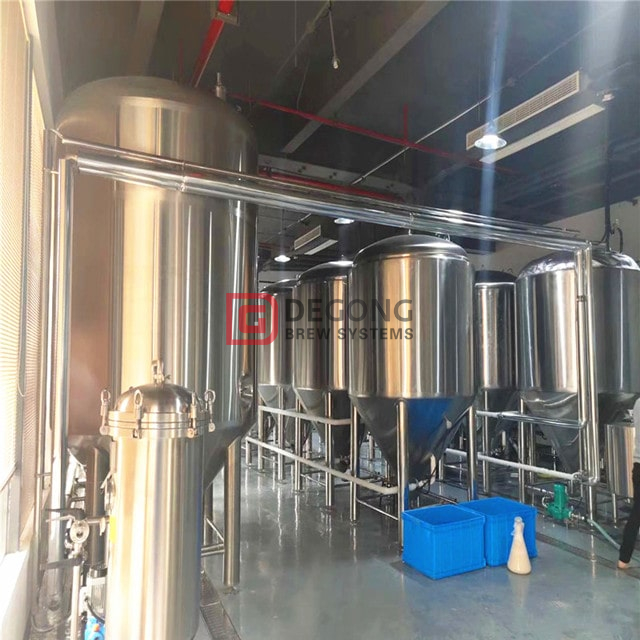

                                                               Fermenter row

                                   Brewer is adjusting the temperature of the fermenter

                Brewer is recording temperature, status of beer inside the fermentation tank

                Beer brewing process from malt milling to beer aging to bottling to delivery

                                             Equipment is fit in container, parked at wharf

               Wooden case will be needed if you just need a specific part of brewery equipment

                                  Feel free to send me an enquiry if you have any questions.
