10HL Advanced Home Brewing Equipment Commercial Brewery Equipment Industrial Combined Two Vessel Brewhouse

The commercial brewery equipment includes milling, mashing system, fermentation system, cooling system, CIP and control system.Every system is indispensable and variable.In other words, the system with same size has thousands of different configurations.For example, the mashing system can be two vessels or three vessels or four vessels, heating method can be electricity, steam and direct fire.The fermenting tank’s quantity is base on customer’s brewing plan,and the fermenting tank parameters can be customized according to your needs, etc..

Thickness of material (mm):
Insulation:
Matrial:
Heating method:
Control panel:
Quantity:
  • DGET-10HL
  • DGET
  • 8438400000


DEGONG can design and manufacture beer brewing equipment used for any type beer,such as ale,lager,IPA....All of the equipment is customized according to your requirement.If you don't know more about beer brewery machine,our engineer can give you the most professional suggestions according to your brewing plan,such as daily output or others....


微信图片_20200402095416-min

Our beer brewing equipment is customer's brewing bar(Ireland)


Introduction of beer brewing equipment


The commercial brewery equipment  includes milling, mashing system, fermentation system, cooling system, CIP and control system.Every system is indispensable and variable.In other words, the system with same size has thousands of different configurations.For example, the mashing system can be two vessels or three vessels or four vessels, heating method can be electricity, steam and direct fire.The fermenting tank’s quantity is base on customer’s brewing plan,and  the fermenting tank parameters can be customized according to your needs, etc..


1000L commercial beer brewery equipment

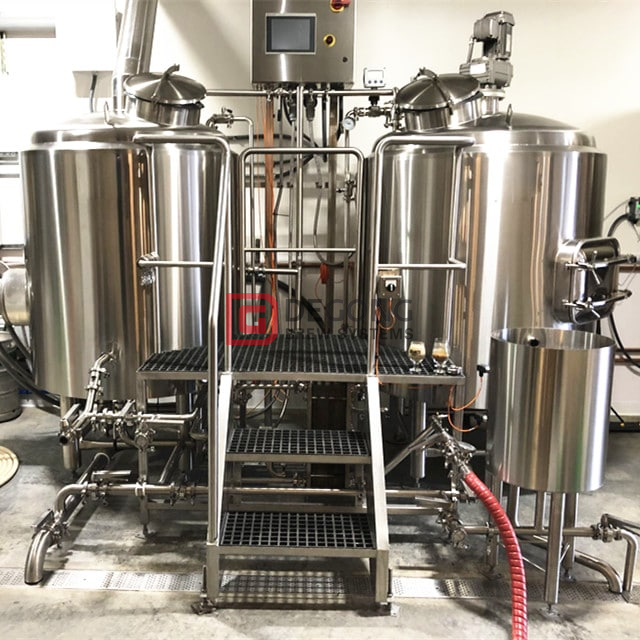

10HL advanced home brewing equipment commercial brewery equipment industrial combined two vessel brewhouse


The combined 2 vessel  brewhouse is 2 vessels beer mashing system,which include mash/lauter tank+boiling/whirlpool tank,and an additional hot water tank.You can combine the tanks freely according to your requirement.The whole mashing system also includes pumps, heat exchangers, hops filters, platforms, , oxygenation equipment, etc.


拼细节

Raker,false bottom,VFD wort pump,operation platform,sight glass


FiveBoroughs2018-20_副本_副本-min

Sparging

2_副本

Sight glass manhole for looking inside of tank, automatic spent grain removable system

hec_副本

Plate heat exchanger,it can be single stage(cold water) or double stages(glycol water and city water)

hydrator

hydrator

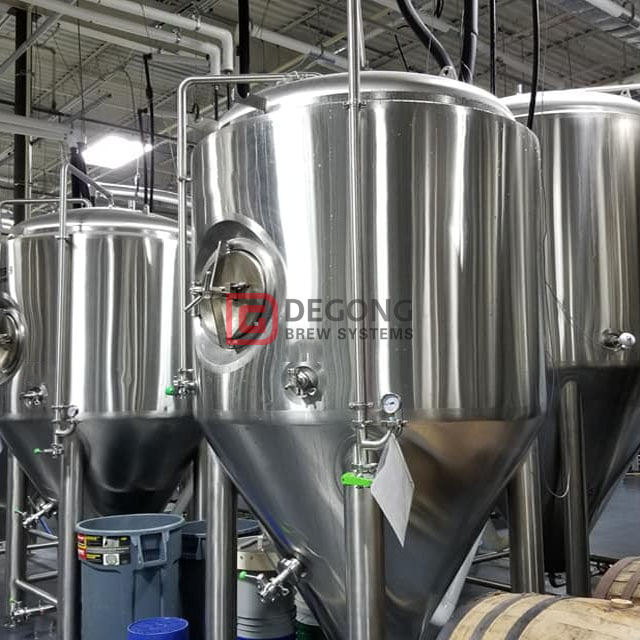

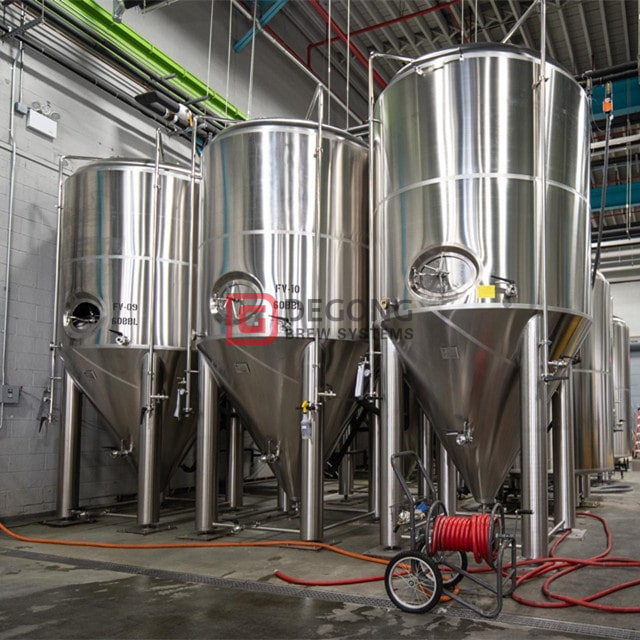

Fermentation Tanks are equipped with separate cooling zones which can be individually controlled and entirely insulated. CIP tube and a cleaning head included. The materials used and the surface finishing depend on the intended application and the customers’ specifications.

1000L Isobaric fermentation tank

10HL Stainless steel conical Isobaric beer fermentation tank/fermenter/Unitank

Normally,there are hops hole and vacuum valve on the top,pressure guage and apunding valve on the CIP arm.One-Touch Racking Arm on cone,CIP Spray Ball,temperature sensor and carbonation stone on the tank.


IMG_8623-min

Sample valve

Carb+stone2-min

Carbonation stone system

IMG_8226-min

Side manhole,temperature meter,pressure guage


Standard features include


304 SS or 316LSS Conical Fermentation Tankshave a60° Cone Angle.

30% head space at least for each tank

Motorized mash mixers, lauter rakes and spent-grain plow

ABB Siemens motors/pumps on the whole system

Stainless steel process piping, work cabinet and control cabinet

Siemens/Schneider/Omron electric element

Oversized heat exchangers,cooling system,heating element(element,steam generator)

Tempered all-glass manways

Grirst hydrator bowl with hot/cold liquor blending

8- to 10-in. steam condensation pipe with cool water jets and drain

Sight level indicators on fermenting system.

Insulated with a minimum of 80mm Chloride-Free PU Insulation.

#4 overall finish; exterior and interior.

Interior Finish: Overall polishing to 0.4 μm without dead corner

The interior of the shell is Professionally Passivated.

Adjustable Levelers provide a level tank regardless of floor slope; (4) total legs with (4) forklift accessible crossbars.

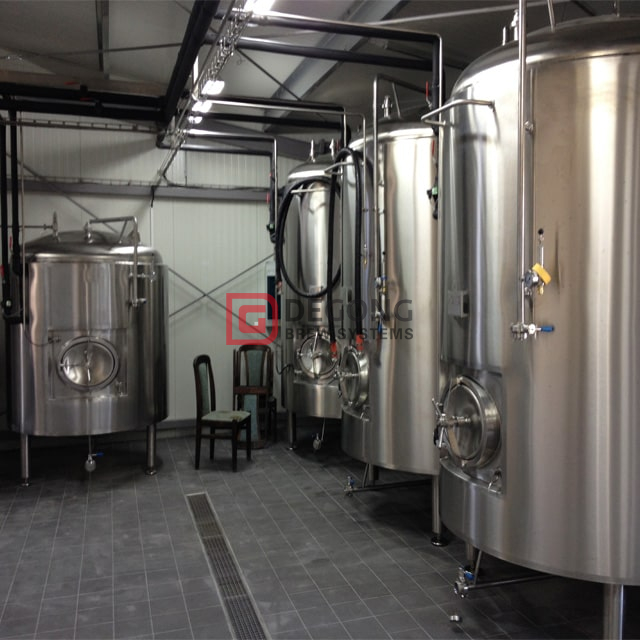

Equipment shows in customer's brewery/brewpub


微信图片_20200402095425-min

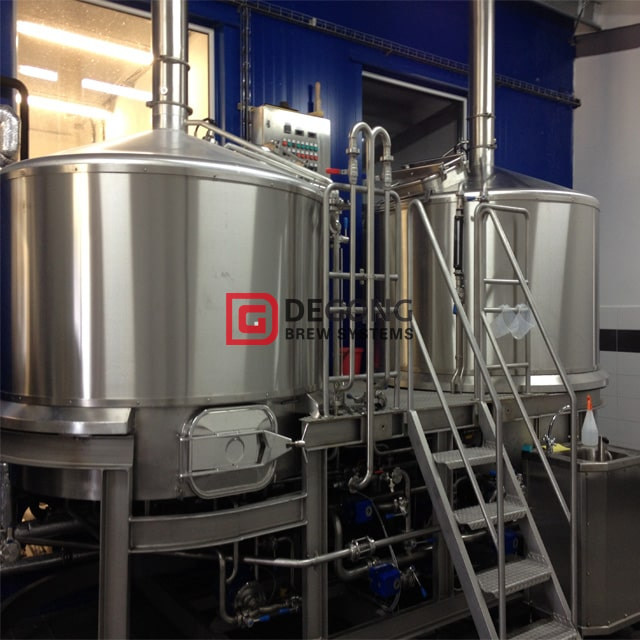

1000L stainless steel beer brewing system in Ireland

QQ图片20181212153156-min

1000L copper commercial brewery equipment in Sweden

QQ图片20181109162551-min

500L copper combined 2 vessels brewhouse brewing equipment in Ireland



Engineer install equipment and teach how to brew
