1000L Beer Brewery Equipment Bright Beer Tank for Craft Beer Stainless Steel Tanks for Sale

Bright beer tank brief introduce

Beer brewing machine stainless steel 304 1000L bright beer tank Side manway or top manway, can be chose as you like. Top manway bright tank is cheaper than side manway bright tank, because of different production processes. Bright beer tank used as blending tank,mixing tank,preparation tank,fermentation ank,disinfection tank ,ageing tank,reactor tank,premix tank etc. Ideal in fields such as foods,fruit juice beverages,chemical industry and biological engineering etc.

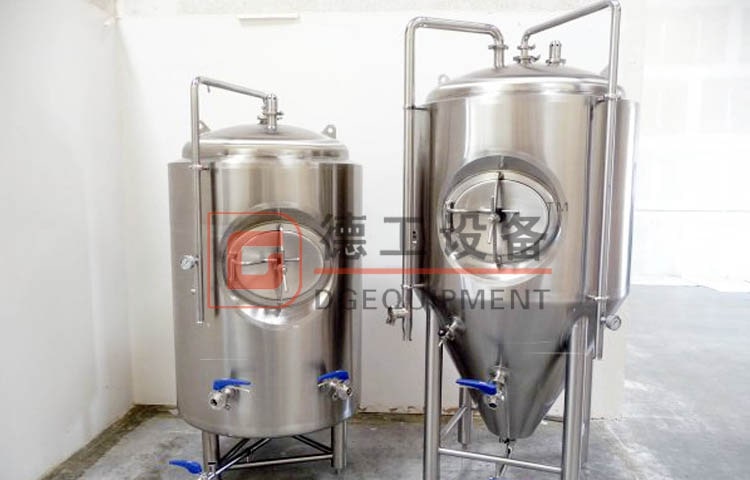

stainless steel 304bright beer tank & fermentation tank

Bright beer tank more information

Function:Wort Fermentation or maturation

Total capacity:1300L

Useful capacity:1000L

Interior Shell:SUS304 Stainless Steel,thickness: 3.0mm;

Exterior Shell:SUS304 Stainless Steel,thickness: 2.0mm;

Insulation: Polyurethane-thickness:80mm

100% TIG welding with pure argon gas shield

Interior Finish: Overall polishing to 0.4 μm without dead corner

Cooling jacket: Dimpled plate on cone and side, thickness: 1. 5mm

Cooling media: glycol water or alcohol water.

"Stringent tank and Jacket leakage test by water and pressured gas

Test Pressure:0.4 Mpa,Working pressure 0.3 Mpa."

Equiped with Carbonation stone and port for filling CO2

Tri clamp discharge arm with butterfly valve

100% TIG welding with pure argon gas shield

CO2 blow-off arm with butterfly valve

CIP arm with 360 coverage CIP spraying ball

Thermowell with high accuracy temperature sensor: PT100

Cooling control Square table control, sigle tank single control

4pcs completely SUS304 heavy duty legs with leveling pad and legs support

thermometer(tempearture probe), carbonation stone, butterfly valve

1000L bright beer tank feature

• This bright beer tank has a strict structure, so it is good for the maturation of bright beer

• Good characteristics of liquid mixture

• Good mass transfer rate

• It has matching and reliable instruments for detectiona and control

• It has a fairly high leakproofness

• The working process of this beer tank is extremely stable and reliable

• Low energy consumption and small pipe diameter in order to reduce production costs

• The bright beer tank is made of 304 stainless steel, so it is food-grade and sturdy

• This tank is easy to maintain and clean up

• Corrosion resistance

• Low noise

• Big volume that satisfies your need about maturing

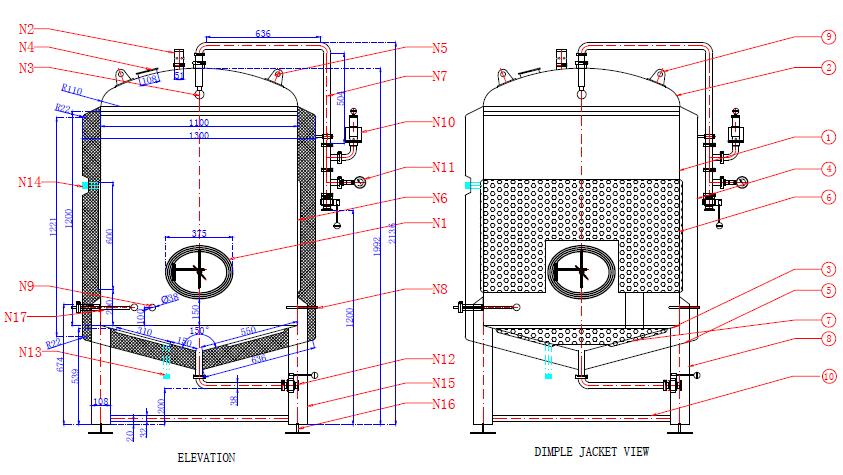

bright beer tank drawing

horizontal tanks

Optional

Sight gauge

Customized name plates (with brewery name and logo)

Customized diameters/height

Several finishes available, including Brushed, 2B, 8K Mirror

If you are interested in DEGONG beer brewery equipment, get in touch with me freely.
