DGET-600L
DGET
8438400000
600L Brewhouse Vessels With Different Combinations
Mash/Lauter tun+boiling/Whirlpool tun+hot water tank
Mash/Lauter tun/Whirlpool tank Combine Vessel+boiling tun
Mash/Lauter tun/hot water tank Combine Vessel+ boiling/whirlpool Tun
Other combinations are available to meet your specific requirements
mash/lauter/whirlpool tun+boiling tun
Mash tun, Lauter tun, boiling tun, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
Heating method:steam heating,electric heating, direct fire heating
Material:stainless steel 304/316, red copper
Voltage:380V/220V/230V
Certification:CE/ISO/PED
Warranty:3 years
Infusion or decoction brewing methods are designed exactly
Stainless steel cladding is even the unique because of easy maintenance and clean
Two stages or single stage heat exchanger for wort cooling
Completely stainless steel integrated work platform
Sanitary and efficiency wort pump

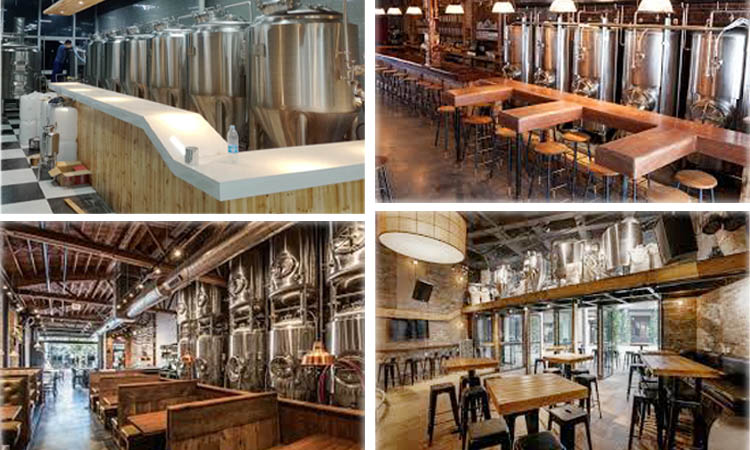

beer brewery equipment in pub
Tank Capacity: +25% Headspace minimum
Interior Shell: SUS304 full welded; TH=3mm
Exterior Shell:SUS304 full welded; TH=2mm
100% TIG welding with pure argon gas shield
Interior Finish: Overall polishing to 0.4~0.6 um without dead corner
Insulation: polyurethane; TH=80mm
Dished top and sloped bottom
Stainless steel top mounted manway
Top glass manhole
360 coverage CIP spraying ball
4pcs completely SUS304 heavy duty legs with leveling pad
Thermowell for high accuracy temperature sensor

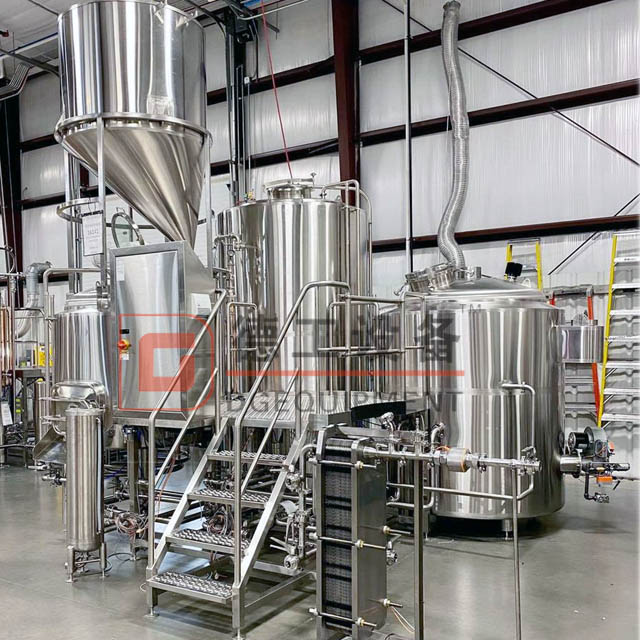

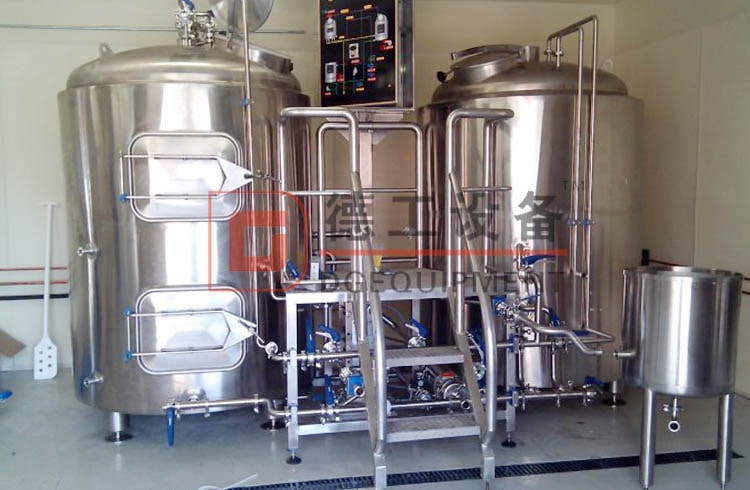

the brewhouse system is running

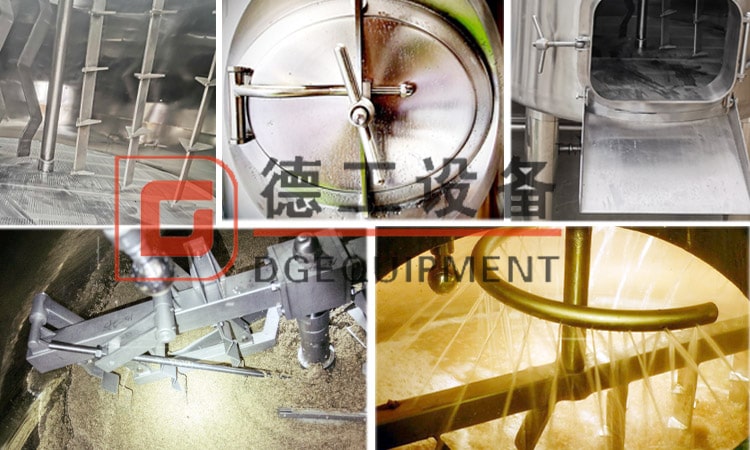

Mash/lauter tun
With:
grian raker siemens VFD motor, laser cutting V-wire false bottom
Multi-hole wort collect ring,anti-rinser
Rotary CIP spary balls, level light tube
Easy clean and detachable sparging spraying

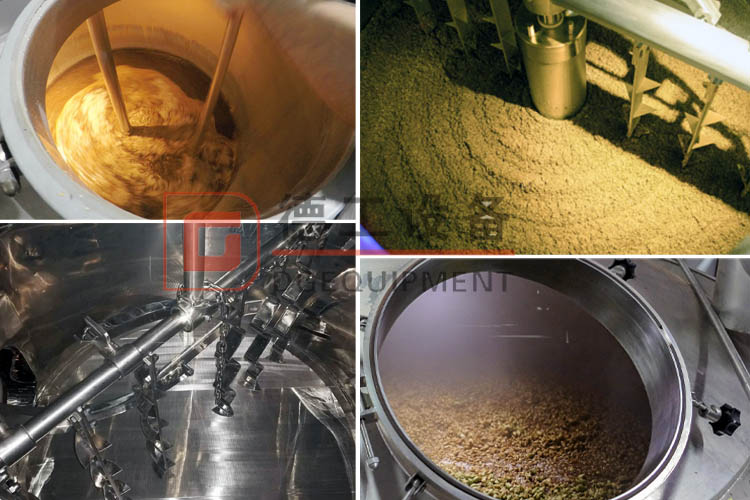

Boiling/whirlpool tun
With:
High accuracy temperature sensor
Sparage ring, sus304 spent grains hatch,
Stirring blades
Easy installation fasle bottom
Sight glass
Optional:wort grant, hopper,malt storage tank
raker with pump, side manhole, spent grains hatch, ring
If you are interested in DEGONG brewery equipment, please feel free to contact me.
