2000L Beer Brewery Equipment with 3-vessel Steam Heating Brew Supply Near Me Stainless Steel Tanks for Sale

The brewhouse is three vessels which includes mash tun, lauter tun and kettle/whirlpool tun. One double size hot water tank and cold water tank comes with the brewhouse which are designed in one work plateform together with other vessels. The whole brewhouse system is heated by gas burner. This directly fired device is designed for mash tun, kettle and hot water tank. Pipe manifold, hopback, vfd pump are standarded including. There is one sink tank on top of the plateform. It can supply hot water and cold water for washing and wort testing happens here too when flowing from lauter tun to kettle.
Thickness of material (mm):
Insulation:
Material:
Manhole:
Heating method:
Quantity:
  • DGET-2000L
  • DGET
  • 8438400000


                                                            2000L beer brewery equipment overview
Brewhouse combination   mash tun, lauter tun, boiling/whirlpool tun
Heating method steam heating, electric heating, direct fire heating









Mash tun

Function:Grain Mashing

Tank capacity: 2000L.

Interior Shell:SUS304 full welded, TH:3mm

Exterior Shell:SUS304 full welded,TH:2mm

100% TIG welding with pure argon gas shield

Overall polishing to 0.4-0.6μm without dead corner

Insulation: Polyurethane;TH:80mm.

Stainless steel top mounted manway with full glass, With agitator frequency control; With indoor or outdoor venting device; Light fixture with LED;

Easy clean and detachable sparging spray ring.

Thermowell with high accuracy temperature sensor: PT100

Steam heating jacket.

Tank complete with fittings, valves and all parts.

Welding seams brushed sand belt.

Inner surface to be acid passivated or mechanical polishing.

Bottom drain port equipped with tri-clamp butterfly valve, used for discharging remaining hops.






Lauter tun

Function:Grain lautering

Tank capacity: 2000L.

Interior Shell:SUS304 full welded, TH:3mm

Exterior Shell:SUS304 full welded,TH:2mm

Insulation: Polyurethane;TH:80mm.

100% TIG welding with pure argon gas shield

Overall polishing to 0.4-0.6μm without dead corner

Rake plow with VFD agitator motor/ Grain out door, milled sieve plate(false bottom)

Thermowell with high accuracy temperature sensor: PT100

Tank complete with fittings, valves and all parts

Welding seams brushed sand belt

Welding points to be acid passivated or mechanical polishing.







Boiling/whirlpool tun

1.  Be made of stainless steel 304; Brushed outer shell;

2.  Working volume:2000 L;

3. Thickness of insulating layer: 80mm; Inner Body Thickness: 3mm, outer shell is 2mm.

4.  Top mounted manway with full glass; Light fixture with LED

5.  CIP rotary spray device

6.  With indoor or outdoor venting devices

8.  Bimetal thermometer and temperature probe

9. Outer and Inner plate protection , and ribbon polished on all welds

10. All valves are stainless steel, which attaches with tri-clamps;

11. Steam heating jacket.

12. With all matched valves and accessories.

13.With tangent whirlpool line








Fermentation tank

1.  To be made of stainless steel 304. Brushed outer shell.

2.  Working volume:2000 L.

3. Thickness of insulating layer: 80mm.

Inner body thickness: 3mm. Outer thickness 2mm;

4.  Design pressure 0.3mpa, use pressure 0.15mpa

5.  Side man way; Ladder and lifting ear. Hop add port

6.  Tank top is domed, with 60°cone bottom

7.  Dimple plate cooling jacket. Dual glycol zoned jacket;

8.  Pressure gauge; Mechanical pressure regulator valve; Tri clamp breath valve and sample valve;

9.  PT-100 thermometer and temperature probe;

10. CIP rotary spray ball. Beer outlet and drain outlet with butterfly valves

11.  Interior and outer tank weld places do polish≤0.4um.

12.  Stainless steel legs and braces on adjustable feet

13.  With necessary fittings and valves.

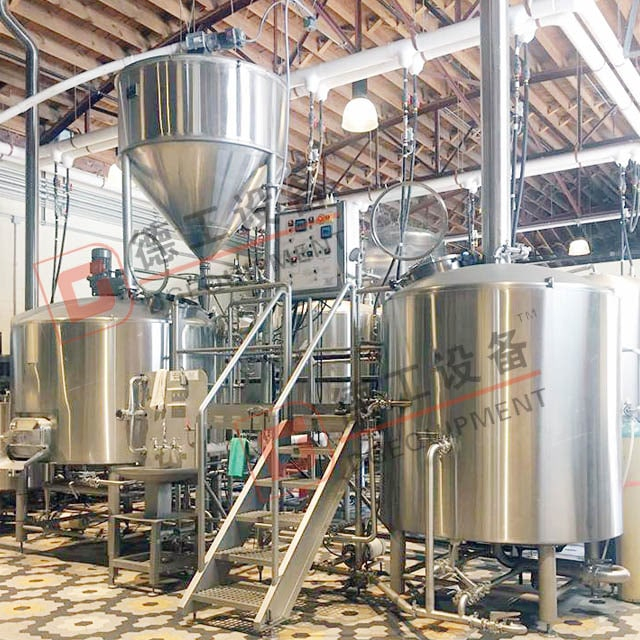

DEGONG 2000L beer equipment picture

750 BW-min

3-vessel: mash tun+lauter tun+boiling/whirlpool tun


750mash 细节-min

Wort is being prepared


750FV-min

fermentation tank & bright beer tank


750FV细节-min

conical fermenter details


sample valve & drain outlet-min

sample valve & drain outlet
