1000L All Grain Beer Brewing equipment Combined 2-Vessel Brewhouse Stout beer making plant
Home » Brewery Equipment » Beer brewery equipment » 1000L All Grain Beer Brewing equipment Combined 2-Vessel Brewhouse Stout beer making plant

Product Detail

Share to:

1000L All Grain Beer Brewing equipment Combined 2-Vessel Brewhouse Stout beer making plant

1000L Beer brewing system craft beer equipment is popular for small scale brewery or hotel/restaurant.All of the details can be customized according to customer's requirement.All of the electric element will choose famous brand,such as Siemens,Omron.....
There is no fixed configuration and price for the system,all of the equipment is customzied according to customer's requirement.

Material:
Insulation:
Control system:
Electric component:
Heating method:
Quantity:
  • DGET-1000L
  • DGET
  • 8438400000


Specifications of beer brewhouse

Configuration:

Milling: 2-roller or simplified 4-roller
Mash &Lautertun: Brewing &sparging water blending port, VFD rake, with wort grant, mash hydrator, etc
Kettle & Whirlpool: Dimpled steam jackets or direct burning heating, as well as electric immersion heating
Hot Liquor Tank: Steam heating, direct burning or immersion electric heating.
Pumps: Lautering pump and whirlpooling/castout pump of VFD, HL pump
Piping: Tri-Clamp or DIN standard pre-built
Heat exchanger: 2-step or 1 step, with fittings such as thermometers, venturi aeration unit, etc
Brewhouse control: VFD, switches etc, Automatic Temp. control, etc
Cellar Control: Automatic Temp. control with solenoid valves

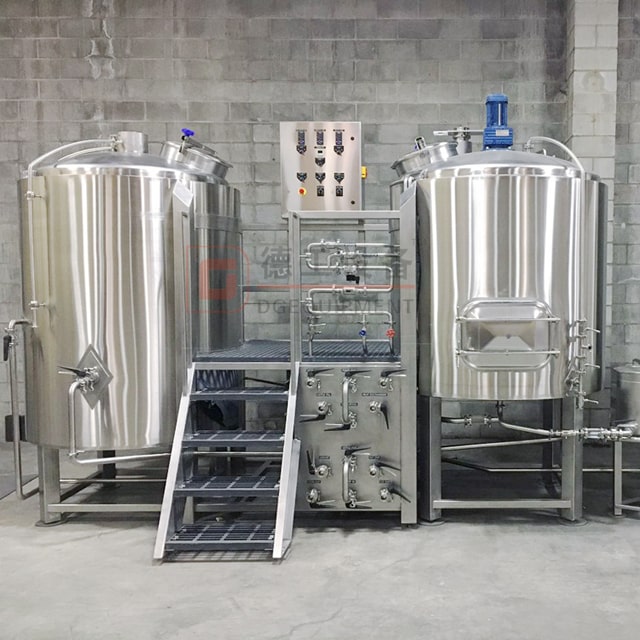

 3-vessel beer brewhouse


1.A brewhouse consists of all the components, or vessels, a craft brewery needs for the initial brewing stage. It typically includes a mash tun, lauter tun, boil kettle, whirlpool, hot liquor tank.

2.A two-vessel brewhouse is often made up of combinations of a mash/lauter tun and boil kettle/whirlpool tun, while a larger, more advanced three,four five-vessel system separates these components.

3.Other Combinations
Mash/Lauter Tun+ Boil Kettle/Whirlpool Tun+ Hot Liquor Tank
Mash/Lauter Tun/Whirlpool Tank Combine Vessel+ Kettle Tun
Mash/Lauter Tun/Hot Liquor Tank Combine Vessel+ Boil Kettle/Whirlpool Tun

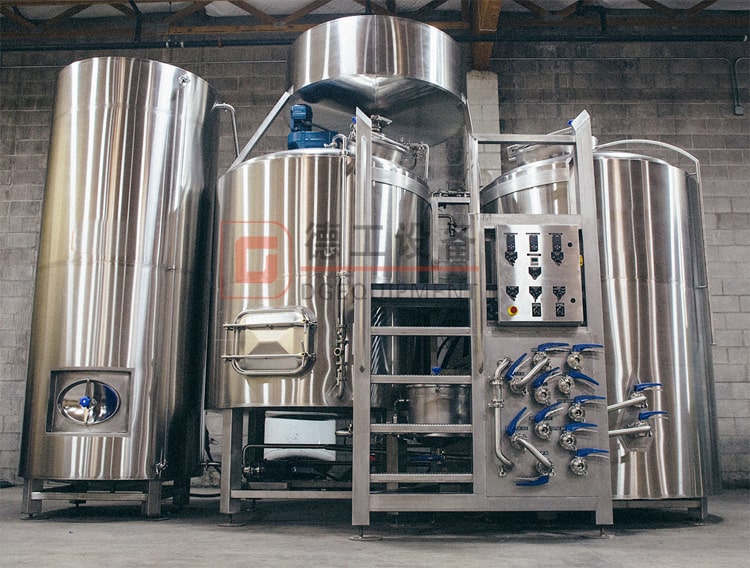

3-vessel beer brewhouse


未标题-1-min (2)


sight-glass-min

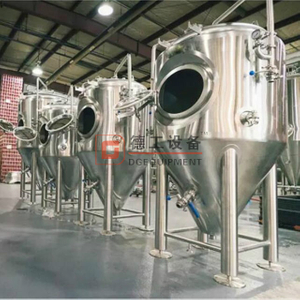

Specifications of fermentation tank

Features:

-   Certified Stainless Steel material

-   Sanitary construction seams with sanitary interior polish

-   Inspected and pressure tested to 2 times operating pressure

-   Insulated with high efficiency polyurethane foam

-   Name-brand, high-quality valves and fittings included with every tank

-   Quality TIG welding: For piping, quality TIG welding with sanitary interior shapes

-   130% overhead space, heat insulated; separate glycol jackets on body and cone; 60° cone bottom, dished top head; Side man-way: 450mmx350mm;


All hygienic parts:

- Hop port on top

- PVRV and pressure relief valve

- Perlick style Sample valve

- Rotating spraying ball

- Qualified butterfly valves

- Racking arm

- Pressure gauge

- Height adjusting foot pads

- Separate CIP arm and blow off arm


Fermenter_3


Unitankjiantiexijie

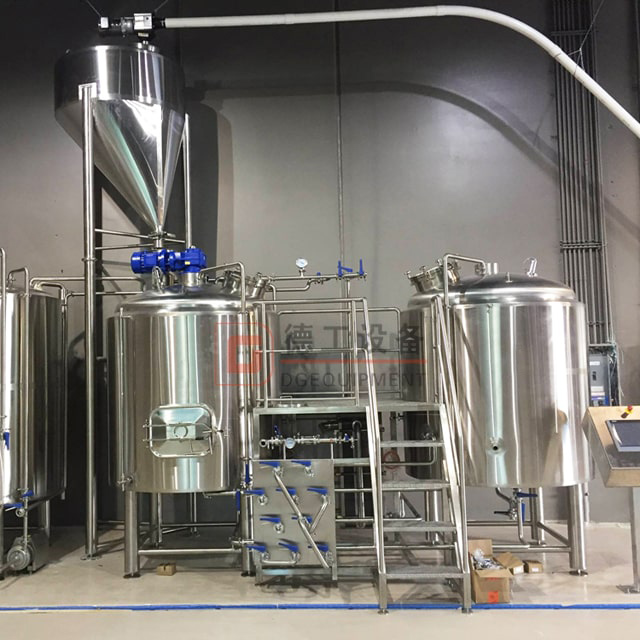

 Our equipment shows in customer's brewery



20190703163950605060

20190703164013131313

20190703164077337733

20190703164197319731
