| Thickness of material (mm): | |
|---|---|
| Heating method: | |
| Polyurethane Insulation: | |
| Quantity: | |
DGET-1000L
DEGONG
8438400000
| 1000L artisanal beer brewing system configuration |
Turnkey breweries, One-Stop solution of beer equipment: We deliver turnkey brewery systems worldwide. The process of your entire project, from planning to realization, lies with one best partner DEGONG. Our competent, experienced brewers and engineers are always on hand for customer support and advice, for planning, design and drawings,installation, on-site training, provide recipes and operational controls. The turnkey breweries are tailored to meet your individual requirements.
Beer brewing house with touch screen
A set turnkey of Brewing system configuration:(In addition to the following content, we can also expand or customize services according to your existing brewery.)
| Milling system | Stainless steel Flexible or stainless steel screw conveyor |
| Mash system | Material:SUS316L, SUS304,copper; Mash & kettle& lauter & whirlpool tun are any combination; dimple jacket for heat exchanger, polyurethane insulation,TH=80-100mm,bottom stirring,lauter plate:milling,side or bottom vinasse discharging; Hot liquid tank for option; Plate heat exchanger: cooling form,capacity and piping meet requirements; Oxygenation system:oxygenation form, capacity and interface form meet requirement; Yeast adding tank depends on the customer’s requirement; Stainless steel working platform; Accessories:wort pump, wort tester, hop adding device,hop filter device, saccharimeter,wort rake,CIP system etc |
| Fermentation system | 1000L(10HL) / 2000L(20HL)fermentation tank 1000L(10HL) / 2000L(20HL) beer brite tank Amount depends on the customer's request or based on the brewing plan Dimple jacket or dribbling cooling Option:dry hop mouth,CO2 filling device with titanium rod distributor,level gauge |
| CIP system | Mobile cart includes acid tank,alkali tank,Disinfection tank,pump |
| Electric system | Stainless steel electric cabinet with imported brand PLC and touch screen or spraying plastics electric cabinet with push-button |
| Pipeline fittings | Including mash line, alcohol water line and other system line,valves |
| Filtering and sterilization system | Plate frame filter, diatomaceous earth filter and pasteurizer |
| Beer distribution | Keg washing & filling machine Bottle cleaning & filling machine Can filling machine Label machine |

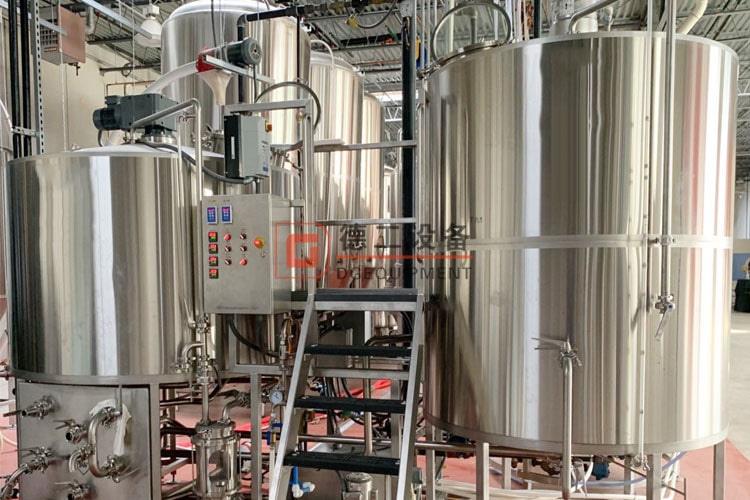

2 vessel brewhouse Individual contral box for mashing
Bright asn excellent stainless steel construction brew house
Sight glass can also be used for a grant;top manway to check the brewing process

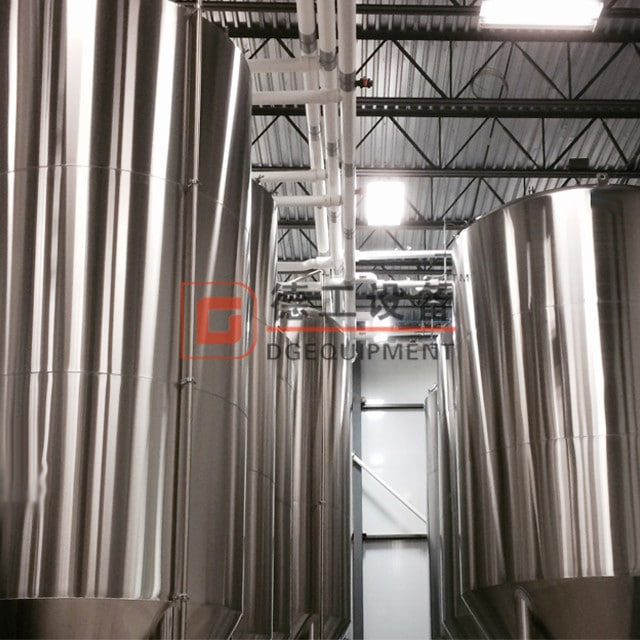

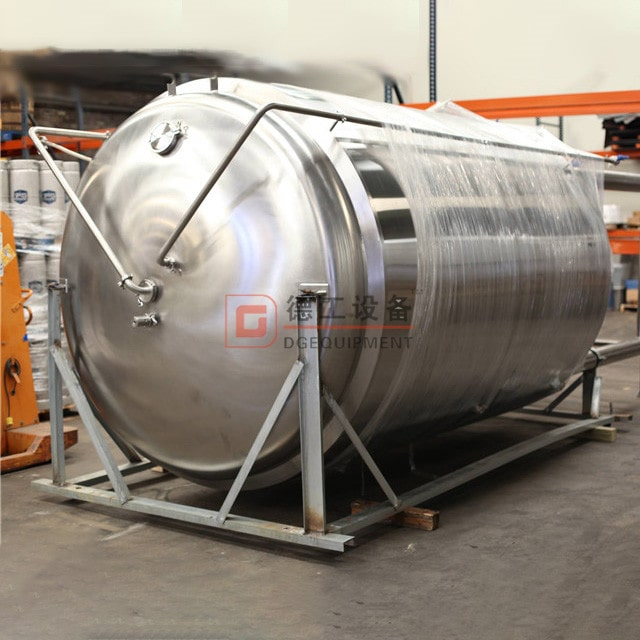

1000L/2000L fermentation vessels and micro fermenters

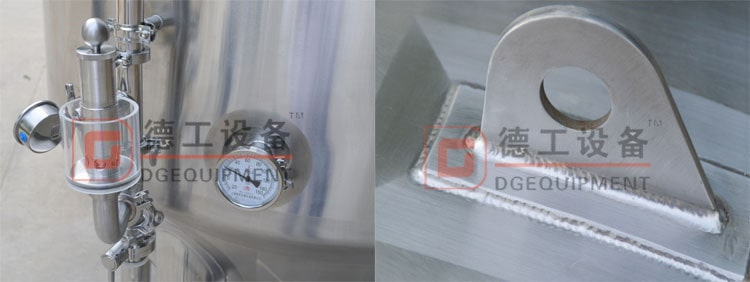

Mechanical control valve and lifting lugs
Dedicated and well trained marketing team could offer consulting service to customers to help them make a decision. Professional team of project engineers, who are responsible for equipment installation, commissioning and provid all after-sales technical support.
DEGONG team and customer to vistit factory
| Contact Alice today |
Microbrewing, craft brewing or commercial large brewhouses, we have the equipment, supplies & install engineers. Looking to find bottling lines and tanks for sale we have that covered.
