1000Liter per batch craft brewery equipment stocked in DEGONG Factory

Our Craft Beer Equipment, for restaurants, commercial and industrial breweries which consist of the industrial wort brew machine and a fully equipped set of the professional beer fermentation tanks with a capacity from 5HL up to 100HL. It's a medium-size and big-size craft brewery intended mainly for restaurants and pubs with their own beer production. But the capacity of bigger models is enough also for industrial breweries with retail sale. Equipped with industrial brewhouse wort machine and modern professional beer production equipment like cylindrical and conical beer fermenters or open fermentation vats, automatic cooling system, cleaning and sanitizing system etc. It is possible to use them to production of all known types of beer. The craft brewery intended for bigger restaurants and industrial brewing companies with retail sale. Main part of the brewery is stainless steel wort brew machine with simple industrial design intended to maximal effective work and high production capacity of the brewhouse. Scalable Brewing Solutions for Consistent Taste and Greater Yield.

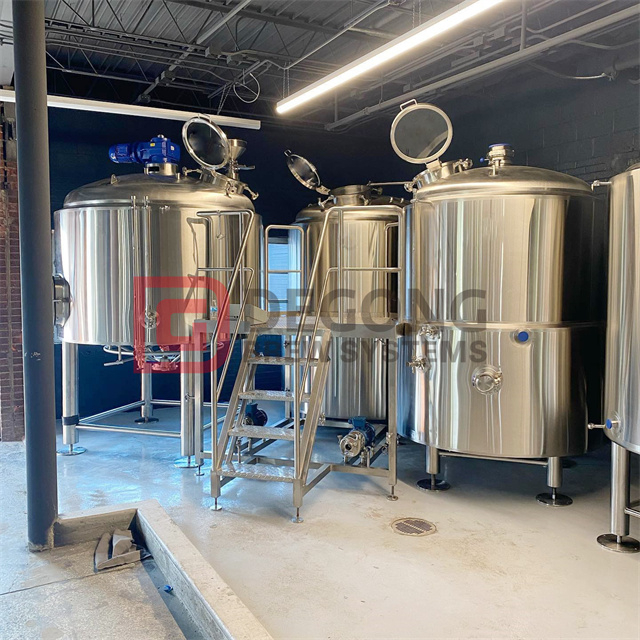

1000L brewhouse system 3 vessel design

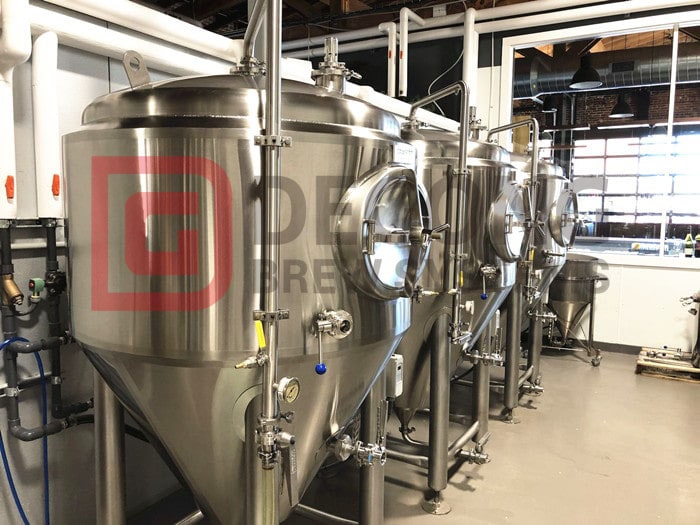

SUS side manmanway beer fermenters top manway optional

Features:

• We plan and design Craft Beer Equipment, all systems can be designed with the client’s input for a defined process;

• A variety of different vessel combinations and a number of vessels: multifunctional tanks (mash lauter, kettle whirlpool), individual process tanks (mash mixer, lauter, boil kettle, whirlpool, hot/cold water tanks);

• Fully piped and wired, including valves and sensors;

• Integrated pump system;

• CIP system: separated CIP for individual tanks to prevent cross product interference;

• Master brew interface control system (touch screen control panel),

• Staircases and platform combine the vessels in a compact unit, perforated and sectional construction of the walk-on surface ensures protection against slipping;

• Automated lautering, automated water mixing

• High quality insulation effect: Rock wool thickness: 80mm

• Beautiful weld and polish: all argon gas protection welding. Polishing precision up to Ra0.6µm

• World's top brands' electronic components: siemens PLC and touch screen, Schneider button of circuit breaker, Airtac electromagnetic valves and other pneumatic parts, etc.

• Good abrasion resistance material: inner-Jacket(SUS304)thickness: 3.0mm; external-Jacket thickness: 2.0mm; seal head thickness: 3.0mm

• Fermentation Unit: standard stainless steel conical cylindrical fermentation tanks; tanks quantity is exactly calculated by fermentation cycle for various beers; all manhole, valves, pressure gauges, fittings etc are included

• Bright Tank Unit: standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation; tanks quantity is exactly calculated for various beers and the function; all manhole, valves, stone, gauges, fittings etc are included

• Cooling Unit: insulated glycol water tank with or without copper coil for glycol liquid holding and mixing; efficiency chillers or refrigerators with Freon to supply cooling energy; sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger; all pipes, fitting, insulation materials are included

• Controlling Unit: electrical controlling cabinet with temperature, on-off controlling for brewhouse; electrical controlling cabinet with temperature, on-off controlling for cooling parts; temperature controller, thermocouple, solenoid valves etc are included; PLC with touch screen panel for special request

CIP staintion cart for cleaning equipment
