| Material: | |
|---|---|
| Fermentation tank coolinig: | |
| Heating method: | |
| Type of Control: | |
| Insulation: | |
| Quantity: | |
DGET-1000L
DGET
8438400000
Mash tun / boiling tun: Use steam heat method, with designed jacket and agitation device to ensure the heating rate while avoiding coking, saving steam.
Lauter tun / whirlpool tun: Easy assembly, with detachable combination of arable knife and sieve plate to achieve better stirring effect. Increase the diameter of the central cylinder to improve the effect of stirring and drain rate. The wort outlet is designed according to dynamic study which enables the collection of wort to be faster and more homogeneous. The design on the bottom of whirlpool tun is in line with the characteristic of the sink trub, which separate the clear wort and turb well.

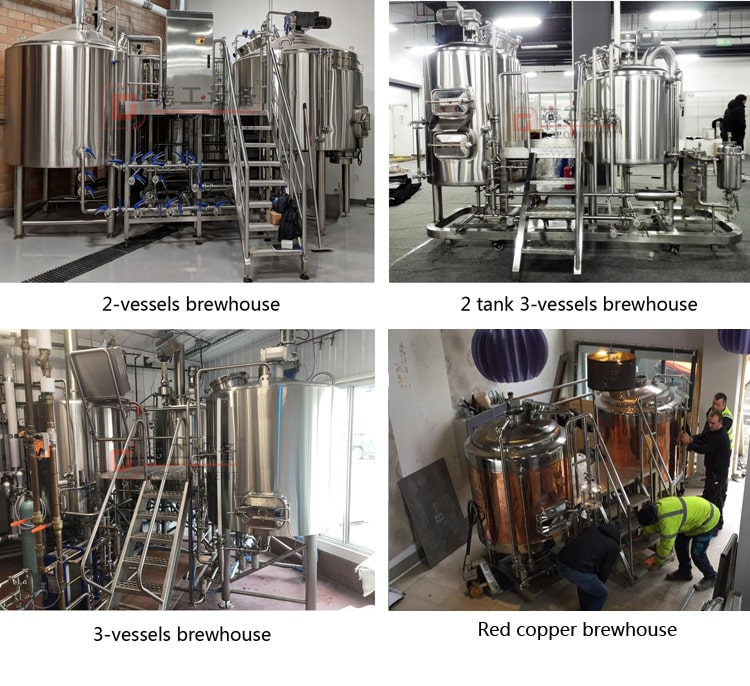

We can provide customization according to different design: mash tun with lauter tun, boiling tun with whirlpool tun, or separate 4 vessels combination.
All tanks are manufactured by SUS304/316, with an inner polish of less than 0.4µm.
Customers can choose according to their own needs
Material:SUS316L or SUS304
Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm
Dimple jacket or dribbling for heat exchanger, rock wool insulation,TH=80-100mm
stirring methods:upper stirring or bottom stirring
Lauter plate:milling
Grain removal:side discharging or bottom discharging
Tank equips with manhole, light sight glass, washing tube, temperature sensor
achieve temperature control, 360 degree sanitory washing ball,material inlet and outlet etc;
Exhaust system:indoor or outdoor exhaust pipe and fan;
Plate heat exchanger: Cooling form,capacity and piping meet requirements
Oxygenation system:oxygenation form, capacity and interface form meet requirement
Working platform：stainless steel
Heating system: design capacity meet the requirement
Cooling system: design capacity meet the requirement
Accessories:cold water pump, hot water pump,, filter pump, whirlpool pump, wort pump, mixer,material &water mixer, wort tester, hop adding device,hop filter device, saccharimeter,worst rake,spent grain recovery and transfer device, CIP system etc
Mash line:Including all the pipeline,valves and thermal insulation material

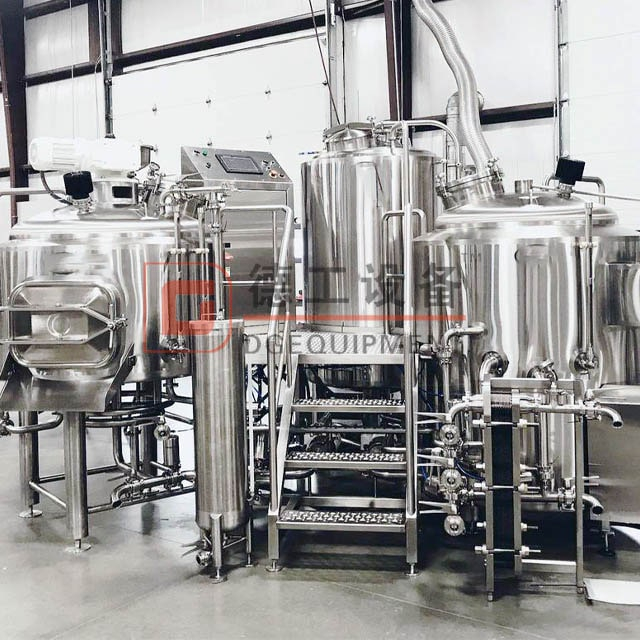

1000L brewhouse system
Equipment composition: the fermenting system is constituted by a group of fermentation tanks and bright beer tanks.
Structure pattern: opening, horizontal and vertical form.
With 30% headspace
Cone bottom 60-90degree
Single wall or double wall
stainless steel fermentation tank
sample valve, breather valve, carbonation stone, mechanical regulator valve
Material:stainless304/316
Racking Arm and discharge port with butterfly valve and fittings;
dimple plate cooling jacket.
Insulation thickness: 100mm;
Inner tank thickness: 3.0mm; outer thickness:2.0mm
CIP arm and rotary spray ball
Release and breath valves
sample valve, mechanical pressure regulation valve
Pressure gauge & Thermometer & Sample valve
Dimple plate cooling jacket with glycol inlet and outlet
Four legs with brace and adjustable bolt
Interior of tank is mechanical polished, inner body polishing ratio 0.4μm. Out plate surface protection welding line Belt Sander Polished,welding: 100% Argon Arc welding
Mash tun / boiling tun: Use steam heat method, with designed jacket and agitation device to ensure the heating rate while avoiding coking, saving steam.
Lauter tun / whirlpool tun: Easy assembly, with detachable combination of arable knife and sieve plate to achieve better stirring effect. Increase the diameter of the central cylinder to improve the effect of stirring and drain rate. The wort outlet is designed according to dynamic study which enables the collection of wort to be faster and more homogeneous. The design on the bottom of whirlpool tun is in line with the characteristic of the sink trub, which separate the clear wort and turb well.
We can provide customization according to different design: mash tun with lauter tun, boiling tun with whirlpool tun, or separate 4 vessels combination.
All tanks are manufactured by SUS304/316, with an inner polish of less than 0.4µm.
Customers can choose according to their own needs
Material:SUS316L or SUS304
Interior Shell: 2B/mirror plate; TH=3mm
Exterior Shell:2B/mirror/brushed plate; TH=2mm
Dimple jacket or dribbling for heat exchanger, rock wool insulation,TH=80-100mm
stirring methods:upper stirring or bottom stirring
Lauter plate:milling
Grain removal:side discharging or bottom discharging
Tank equips with manhole, light sight glass, washing tube, temperature sensor
achieve temperature control, 360 degree sanitory washing ball,material inlet and outlet etc;
Exhaust system:indoor or outdoor exhaust pipe and fan;
Plate heat exchanger: Cooling form,capacity and piping meet requirements
Oxygenation system:oxygenation form, capacity and interface form meet requirement
Working platform：stainless steel
Heating system: design capacity meet the requirement
Cooling system: design capacity meet the requirement
Accessories:cold water pump, hot water pump,, filter pump, whirlpool pump, wort pump, mixer,material &water mixer, wort tester, hop adding device,hop filter device, saccharimeter,worst rake,spent grain recovery and transfer device, CIP system etc
Mash line:Including all the pipeline,valves and thermal insulation material
1000L brewhouse system
Equipment composition: the fermenting system is constituted by a group of fermentation tanks and bright beer tanks.
Structure pattern: opening, horizontal and vertical form.
With 30% headspace
Cone bottom 60-90degree
Single wall or double wall
stainless steel fermentation tank
sample valve, breather valve, carbonation stone, mechanical regulator valve
Material:stainless304/316
Racking Arm and discharge port with butterfly valve and fittings;
dimple plate cooling jacket.
Insulation thickness: 100mm;
Inner tank thickness: 3.0mm; outer thickness:2.0mm
CIP arm and rotary spray ball
Release and breath valves
sample valve, mechanical pressure regulation valve
Pressure gauge & Thermometer & Sample valve
Dimple plate cooling jacket with glycol inlet and outlet
Four legs with brace and adjustable bolt
Interior of tank is mechanical polished, inner body polishing ratio 0.4μm. Out plate surface protection welding line Belt Sander Polished,welding: 100% Argon Arc welding
