Turnkey system 500L beer brewery equipment professional manufacturing equipment high quality brewery tanks for sale

1. Malt miller with the capacity 100kg/h, 300kg/h, 500kg/h, 800kg/h and 1000kg/h.

2. Stainless steel 304 cover of the rolling crusher and alloy adjustable roller.

3. As per the layout, flexible auger will transfer the milled malt to the mash tun.

4. Motor of the miller and auger can be designed locally.

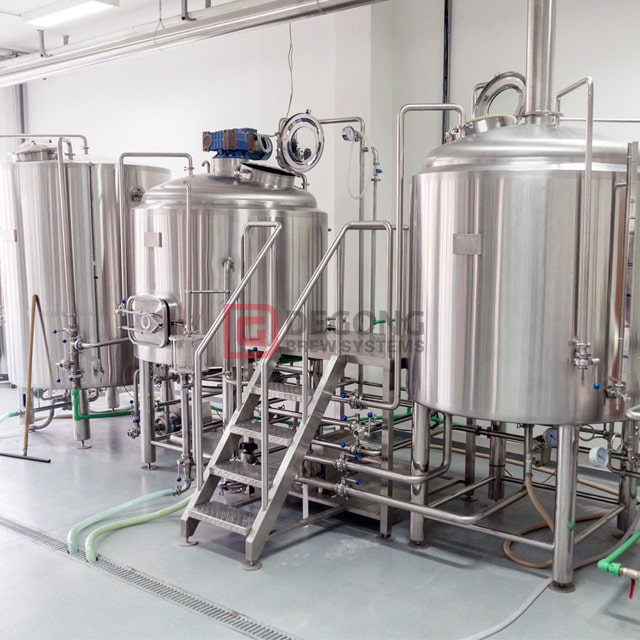

Brewhouse system:

1. Insulated mash tun, lauter tun, boiling kettle and whirlpool vessels, or combined vessels.

2. Domed top design for the bigger small size vessels, conical top design for bigger size.

3. Hot liquor tank and cold liquor tank are recommend. It will be heated the same with brew kettle.

4. SUS304 for all the vessels, and copper cladding is also available.

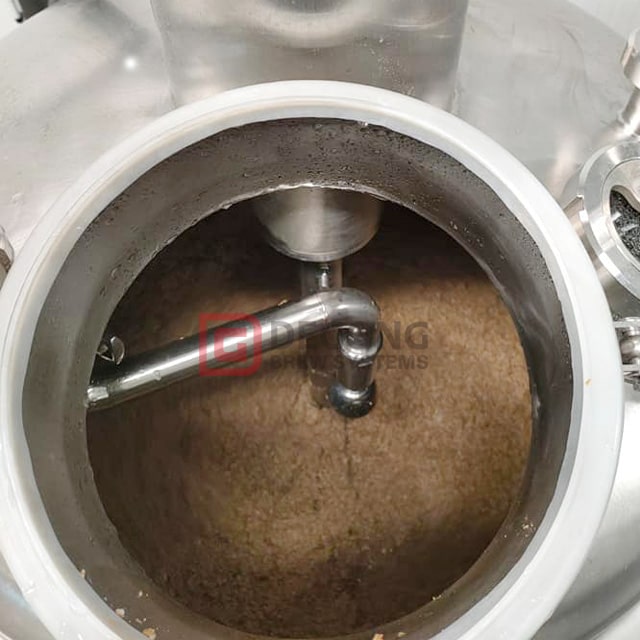

5. Agitator for the mashing, rake system for the lauter, milled false bottom and tangent inlet design.

6. Independent control panel for the brew house system

7. Completely brew house platform.

8. All pipings for the whole system.

Fermentation system:

1. CCT, SUS 304 material conical cylindrical tank with insulation.

2. Dimple cooling jacket for ice water or glycol.

3. Pickled and passivated for inner surface.

4. Top or side man way, shadowless.

5. Dry hopping and release valve on the top.

6. Pressure gauge, sample valve, temperature sensor, spray ball, thermometer, racking arm.

Cooling system:

1. Air type chiller with Copuland or Sanyo compressor.

2. Freon 404, 404A, 407C are available.

3. Insluated ice water tank / glycol tank.

4. Cold liquor pumps connected the chiller and tanks.

5. Automatic control for the chiller and liquor pumps.

6. Stainess steel or PPR pipelines with insulation.

Control system:

1. PID system or PLC system are available.

2. Independent control panel for the brew house system, Auto control for the motors and pumps.

3. Independent control for the chiller pump and fermentors. Auto control.

4. Siemens PLC S7-200 program and touch screen are available.

5. Penumatic valves are available.

6. App design are available.

Cleaning system:

1. Washing pump

2. Sus 304 Alkali tank

3. Sus304 Sterilization tank

Support System:

1. Steam generator, gas, electricity or direct fire heated.

2. Soft water treatment for the generator.

3. RO water treatment for the brewery.

4. CIP system for the brew house and beer tanks.

5. Air compressor.
