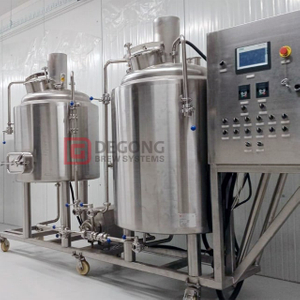

300L Beer Brewhouse |
The brewhouse system is highly automated, easy to operate and easy to learn due to its more reasonable design.The main equipment consists of mash tun,lauter tank,boiling kettle, whirlpool tank,and yeast adding tank which adopted international quality standards of sanitary 304 stainless steel.
Mash tun / Lauter tank
Inner jacket(SUS304), Thickness=3.0mm
External jacket(SUS304 ), Thickness =2.0mm
Dish head (SUS304), Thickness=3.0mm
Insulation layer: PU-Thickness: 80mm
With plow knife (raker knife), power is 0.55KW
Side mounted grain removing door, with grain guide plate
stainless steel top manhole
4 pcs completely SUS304 heavy duty legs with leveling pad
Spraying ring, make it easier and quicker to wash grain
False bottom (filter plate), laser cutting T-wires, plate gap: 0.7mm; Material is SUS 304
This filter plate is made on a complete stainless steel by CNC lathe, it is strong, filter fast and leak no any grist
Filter method: Suction filtration by wort pump, controlled with frequency converter, brand is Danfoss
CIP spraying ball, 360°coverage
Temperature measurement way: PT100
100% TIG welded joints
Interior finish: overall polishing without dead corner
Kettle / Whirlpool tank
Inner jacket(SUS304), Thickness=3.0mm
External jacket(SUS304), Thickness=2.0mm
Dish head (SUS304), Thickness=3.0mm
Insulation layer: PU-Thickness: 80mm
Heating method: Electric Heating
Stainless steel top manhole
Equipped with agitator, power is 0.37kw
Tangential whirlpool inlet
Equipped with hops back
Sanitary leveling gage
CIP spraying ball, 360° coverage
Temperature measurement way: PT100
100% TIG welded joints
Interior finish: overall polishing dead corner
Contact me |
If you have interest, please feel free to contact me.
