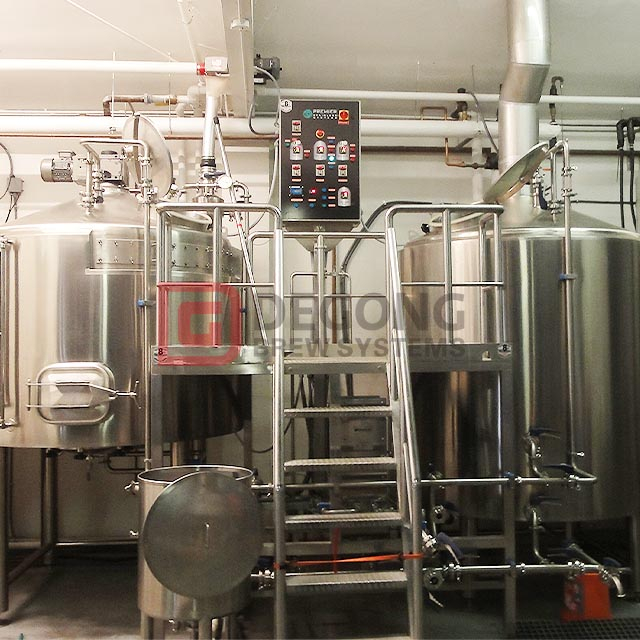

Turnkey Brewing System 10BBL Beer Brewhouse Stainless Steel Complete Brewery Project for Sale

The 10BBL brewery is designed for pilot-scale technology and is also popular in hotels, restaurants, small and medium breweries. Brewery structures vary according to the specific brewing intentions of the brewer. We accept special designs for different requirements.
Availability:
Quantity:
  • DG-10BBL
  • DEGONG

10BBL Turnkey Brewing System


Technical Specifications
  • Material: AISI 304 Stainless Steel Construction

  • Construction: Jacketed & Insulated 80-100mm

  • Working Capacity: 10 BBL (310 gallons)

  • Total Capacity: 12.5 BBL (387 gallons)

  • Working Pressure: up to 2 Bar

  • Tank Shape: Dish Top, Flat Bottom

  • Layer Thickness: Inner Shell 3 mm, Dimple Jacket 1.5, Cladding 1.5 mm

  • Includes:

      Shadowless Manway

      Tri-Clover Racking & Drain Ports

      CIP Arm & Spray Ball

      Pressure Gauge, Thermometer & Thermowell

      Carbonation stone port

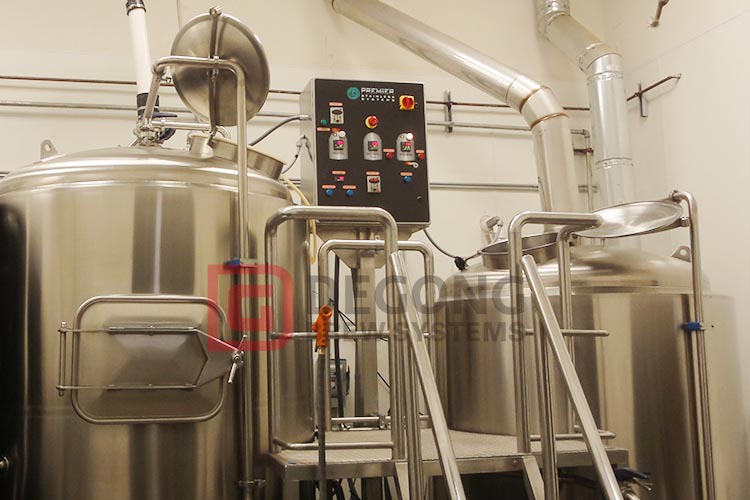

245

DEGONG 10BBL beer brewing equipment

237


Popular Combinations

1. Combined two-vessel brewery

mash/lauter tank+ boiling/whirlpool tank

mash/lauter tank+ boiling/whirlpool tank + hot water tank

2. Combined three-vessel brewery

mash tank+lauter tank+ boiling/whirlpool tank

3. Combined four-vessel brewery

mash tank+lauter tank+ boiling tank+whirlpool tank

All tanks are constructed from certified 304 stainless steel and are TIG welded and hygienic polishing.


246


Contact us

The special attention we give in the final quality inspection of each work is also a guarantee of unparalleled reliability and robustness. If you have any needs or questions, please contact us.
