Our Keg Washer technology improves keg washing efficacy, while saving time, energy, water and chemicals for producers and manufacturers across many industries. Our Keg Washer comes in 1, 2 & 4 nozzles configurations, with PLC controls for automatic cleaning features including CO2 purge, water rinse, and chemical and/or steam sanilization.
| Washing heads: | |
|---|---|
| Material: | |
| Control system: | |
| Certificate: | |
| Applicable kegs: | |
| Quantity: | |
| DGET's professional beer keg washer |

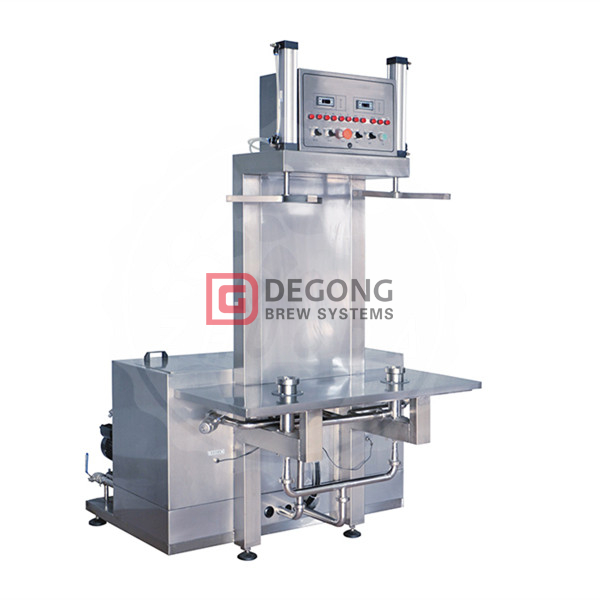

2 nozzles beer washing machine
| Main features |
- Programmable controller ensuring the whole process is automated
- Can clean both plastic kegs and steel kegs

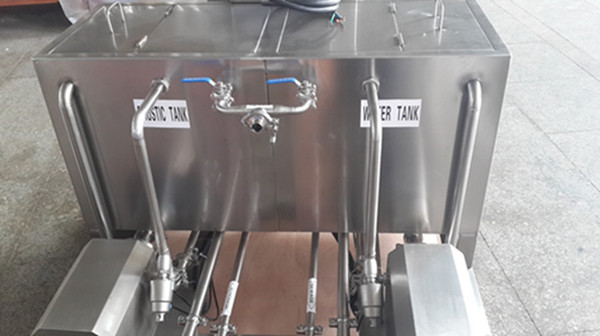

- Double water tanks for filling hot alkali water and hot water
- Store cleaning programs for 2 different types of kegsf, you can choose at your will
- Use stainless steel pneumatic seat valves
- Equipped with steam sterilization function, can eliminate the bacterias inside the keg thoroughly
- Steam heating method for the both water tanks, the temperature is controlled automatically
- Clean thoroughly, no dead angles
Washing process |
Put the kegs in working station - Discharge raffinate - clean with hot clean water - Inflate (discharging clean water) - Clean with hot alkali water - Inflate (circulating the hot alkali water) - clean with hot clean water - Inflate (Discharge clean water) - Clean with hot clean water - Inflate (Discharge clean water) - Discharge steam and then sterilize - Inflate with Co2 (Discharge the oxygen inside the tank) - Co2 - Stop
| Technical parameters |
- Dimensions: 1200mm*1350mm*1900mm
- Capacity of clean water tank: 1.2 cubic meters
- Net weight: 175KG
- Capacity of sterilization water tank: 1.2 cubic meters
- Working capacity: 80-100 kegs per hour (20L)
- Total power of the machine: 2KW
- Power supply: 380V 50HZ
| Brand of components |
Controller: Siemens Germany
Controlling button: Schneider France
Pneumatic elements: Airtac Taiwan
Seat valves: HSA Joint adventure
Solenoid valve: Airtac Taiwan
Pressure regulation valve: Airtac Taiwan
Water pump: Nanfang special pump
| Pictures |
