DEGONG-single head keg washer
DEGONG

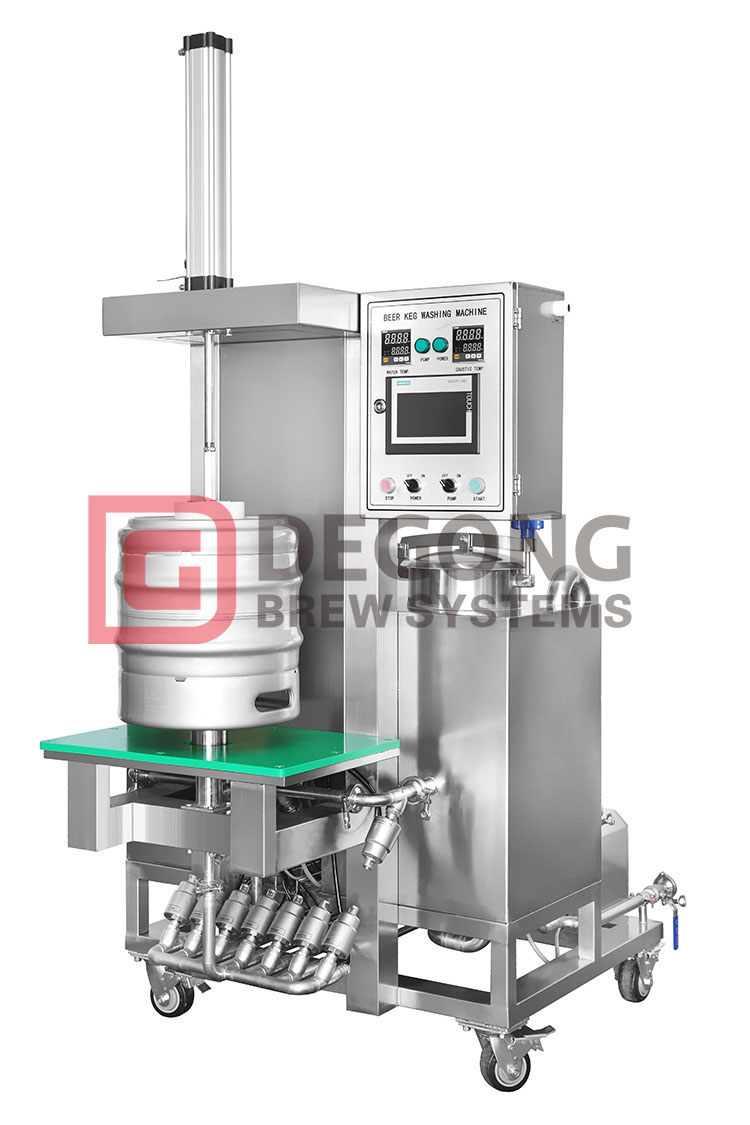

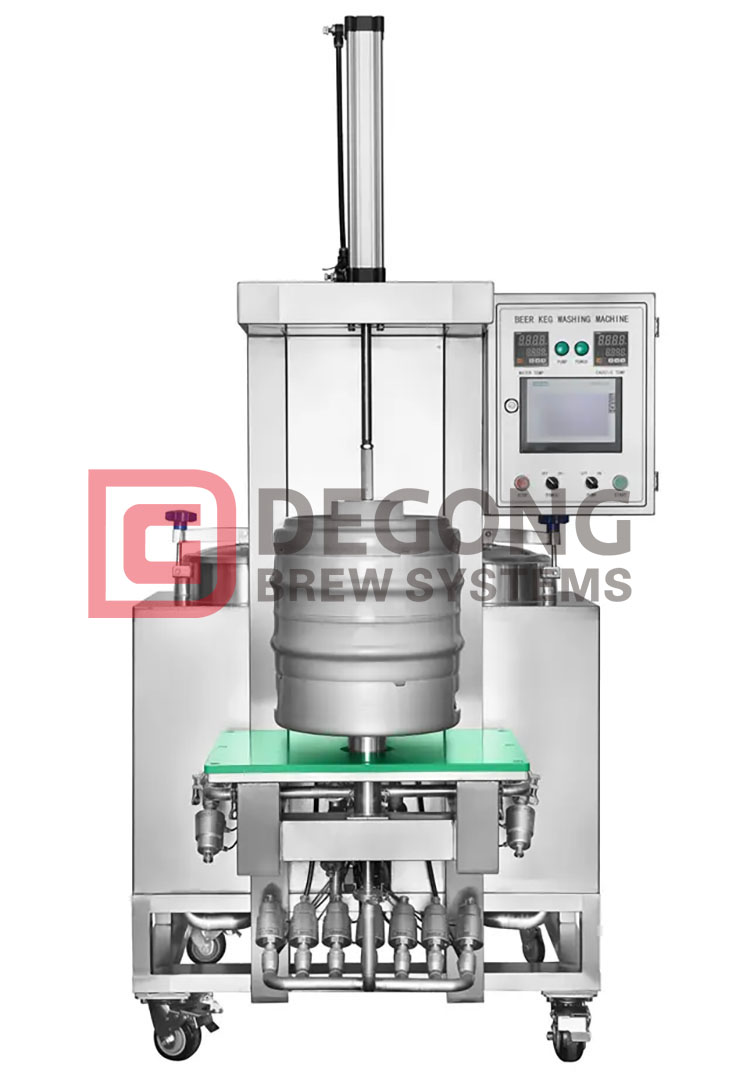

The Semi-Automatic Keg Washer features a Siemens interface, giving brewers/beverage makers full touch-screen control over wash cycle timing and temperature settings. Beer Keg Washer is designed to wash kegs of any size and is capable of cleaning up to 40 kegs per hour depending on the length of the wash cycle.
Simply engage the couplers invert the kegs and press start! Kegs are automatically washed sanitized and pressurized within minutes. By using this semi-auto beer keg cleaning equipment, you have quick and easy access to all the transport containers you could ever need for your product. So, if you’re interested in having a keg washing system for your own brewery, contact us at DEGONG.
Main technical parameters:
Equipment Outer Dimensions:1000*1600*2000mm
Net Weight:300KG
Powe: Steam Heating: 3KW Electric Heating: 18KW
Production Capacity: 30-40 kegs/H
Washing Method :Invert Washing
Applicable Kegs: Kegφ250-500mm,Height 360-600mm
Heating Way :Electric Heating or Steam Heating
Power Supply Voltage: AC 380V 50HZ (customized)
Main function and feature:
1.All procedures are thoroughly controlled by SIEMENS programmable controller. All parameters (time values) can be adjusted without stopping the machine.
2.Two sets of washing process for customers to choose.
3.Disinfectant and Caustic could be used repeatedly to save water
4Water tank possess heating function, the temperature can be displayed on screen.
5.With steam sterilization function (user-selectable).
Working process
1.with 2 tanks
cylinder pressing→ air blowing (draining residue) → water wash→ air blowing (drain) → caustic wash → air blowing (caustic recycle) → hot water wash→ air blowing (drain) → hot water wash→ air blowing (drain) →steam sterilization→ water wash→ air blowing (recycle)→CO2 replace steam→CO2 pressurize
2.with 3 tanks
cylinder pressing→ air blowing (draining residue) → water wash→ air blowing (drain) → caustic wash → air blowing (caustic recycle) → hot water wash→ air blowing (drain) →water wash→ air blowing (drain) →sanitizer→ air blowing (recycle) →water wash→ air blowing (recycle)→steam sterilization→ water wash→ air blowing (recycle)→CO2 replace steam→CO2 pressurize
