| Thickness of material (mm): | |
|---|---|
| Insulation: | |
| Heating method: | |
| Construction: | |
| Material: | |
| Quantity: | |
DGET- 1000L
DGET
8438400000

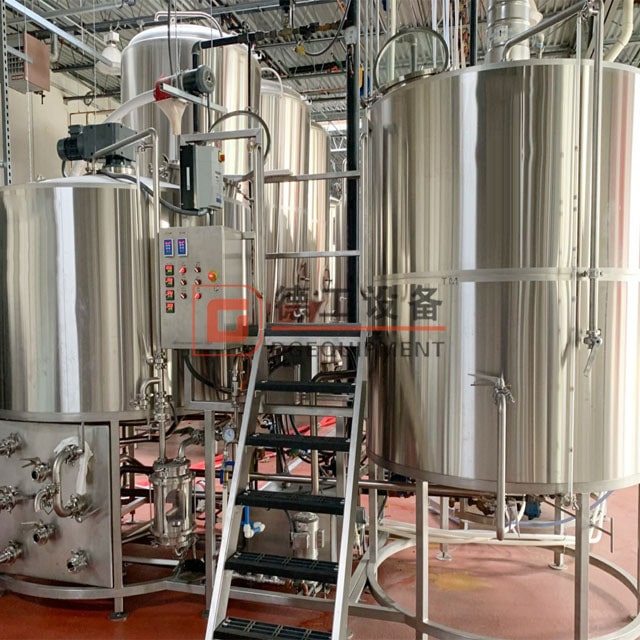

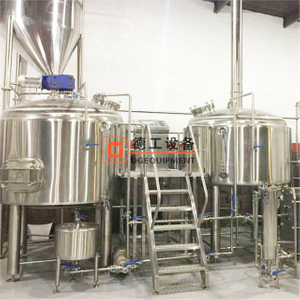

If you plan to open a middle scale to large scale brewpub, microbrewery, nanobrewery, beer hall or distribution, DEGONG 1000L commercial beer brewery equipment is a good choice for you.
Craft breweries may start out as small, manual operations, but the key to a successful craft brewery is scalability. As the demand for your product increases, you need to adjust your output. DEGONG will provide you with tailor-made solutions from design to installation to expansion according to your needs.
1000L beer brewing equipment include:
Milling system | |||
1 | Grain Milling Unit | Rolling Miller | Double roller |
Beer brewhouse | |||
2.1 | 2-Vessel Brewhouse unit | Mash/Lauter tun | Grain rake with VFD |
Kettle/Whirlpool Tun | Steam Jacket on bottom and side/direct gas fired heating/electric heating | ||
Hot water tank | Steam Jacket heating/direct gas fired heating/electric heating | ||
Heat exchanger | SUS304 plate | ||
Material | SUS304/316 Or red copper | ||
Capacity | 1000L | ||
Normal Configuration | Two Vessel: Mash/Lauter tank, Kettle Whirlpool tank | ||
| 2.2 | Specifications | Combined Three Vessel:Mash/Lauter/Whirlpool tank, Kettle | |
Three Vessel if cutomer's demand | |||
Heat method | Electric,steam,direct fire heating | ||
Temperature sensor | PT100 | ||
Insulation | Polyurethane-thickness:100mm. | ||
Fermentation system | |||
3.1 | Fermentation system | Glycol cooling jacket on cone and bottom Temperature sensor | |
Glycol cooling jacket on cone and bottom Temperature sensor | |||
Material | SUS304 316 | ||
Volume | 1000L,2000L | ||
Thickness | Interior thickness: 3.0mm;Exterior 2.0mm; | ||
Welding | 100% TIG welding with pure argon gas shield | ||
Interior Finish | Overall polishing to 0.4-0.6 μm without dead corner | ||
| 3.2 | Technical parameter | Temperature sensor | PT100 |
Cooling media | Glycol water or alcohol water. | ||
Cooling jacket | Dimpled plate on cone and body | ||
Insulation | Polyurethane-thickness:100mm. | ||
Spraying ball | 360° coverage CIP Spraying ball | ||
Pressure Test | Stringent tank and Jacket leakage test by water and pressured gas | ||
Cooling system | |||
4 | Glycol Chilling Unit | Glycol Water Tank | Insulated conical top and sloped bottom |
Cold Water Tank | Dimple plate on side wall | ||
Chiller | |||
Control system | |||
5 | Control unit | Brewing and fermetation process Controlling | Manual button control panel or PLC control with touch screen for special |
CIP System | |||
6 | CIP
| Caustic Tank | electric heating element inside |
Sterilization Tank | |||
Transfer&Control | |||
More info:
There are many different configurations for the 1000L brewery equipment,different customers have different requirement.But totally speaking,the basic brewing system contains miller,brewhouse,fermentation system,cooling system,control system and CIP cleaning system.Then you can choose other auxuliary systems according to your requirement,such as kegging machine,bottling machine,canning machine,filter machine,water treatment device and so on..........So it means it is customized based on customer's need.
If you want to know more details,welcome to contact me.
