DGET-7BBL
DGET
8438400000
| Beer brewing equipment |
What is commercial beer brewing equipment? commercial beer brewing equipment is can be commercially operated beer production equipment, commercial equipment is different with home beer brewing equipment.
consists of: (1) water treatment equipment (2) pulverizer (3) brewhouse system (4) fermentation system (5) refrigeration system (6) control system (7) cleaning system (8) filtration system (9) filling system.
Commercial beer brewing equipment Heating mode is divided into electric heating and steam heating, 300L small equipment in China generally uses electric heating, because the use of steam requires the purchase of boilers,the use of boilers will be strictly regulated
Copper brewery equipment

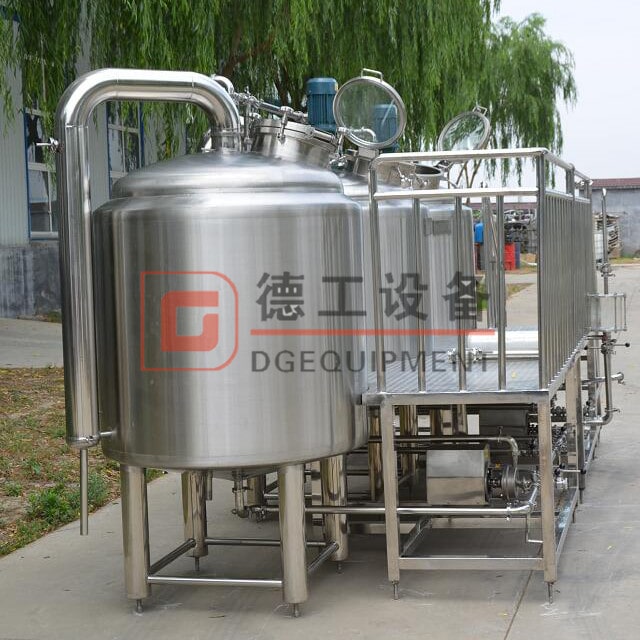

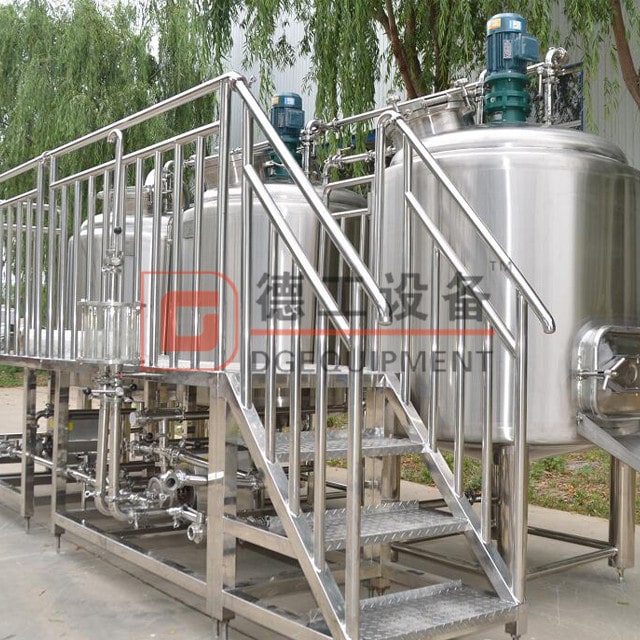

Stainless steel brewhouse system on the deck
Designing tanks and heating system according to craft, mash tank warming≥10℃/min
Energy saving stir structure : large cross-section impeller, 15r/min speed
Sieve plate of lauter tank ≤0.7mm
Wort boiling heat way includes steam jacket, interior heating and exterior heating.
Material includes stainless steel 304,316 and red copper.
Brewery equipment description | ||
| Systems | Components | Specification |
Milling System | Miller | Double Roller,Noise<60db |
Heating System | Boiler (steam heating) | Electric or steam |
Brewhouse System | Mash / Lauter tun | Heating jacket Material: SUS 304/316 or Red copper |
Boiling / Whirlpool Tank | ||
Heat-exchanger | Plate type | |
Fermentation System | Fermentation Tank | Top manway/Side manway |
Yeast Adding Tank | SUS304 Stainless Steel | |
Refrigerator System | Refrigerator unit | With control system |
Circulate Pump | ||
Glycol tank | Fluorine filling | |
Cleaning System | Acid Tank | SUS304 full welded |
Alkali Tank | ||
Pump | ||
Control System | Control Cabinet | Semi-automatic |
Hops;spent grain;mashing;sight glass

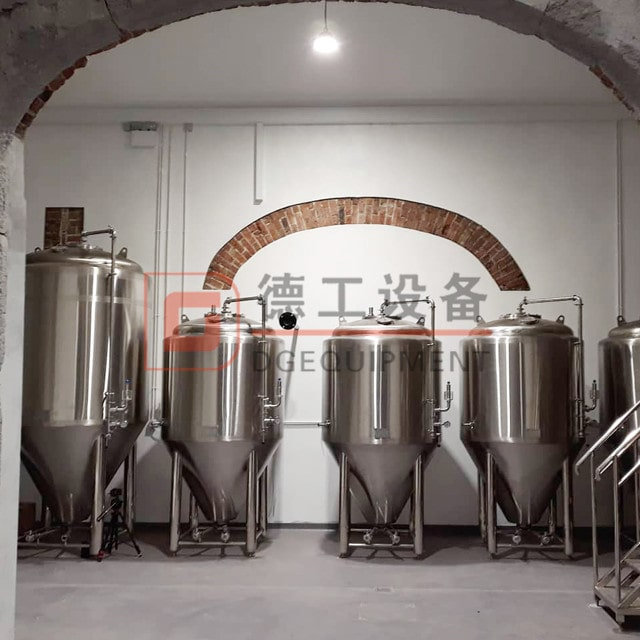

three fermentation tanks with CIParm
brewery tanks in brewing building
Beer Brewing Equipment --fermenters features:
1)Our Fermentation tanks/tun available from 100L to 20000L and average 25% Head Space.
2) All tanks have a Dish top,
3)Cylinder body & 60 Cone Bottom.
4)Certified stainless steel(304,316) material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish.
5) Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated.
6)All tanks use Tri-clamp connections, are designed working pressure 0.12-0.15Mpa
7) We can customize fabricate any tank to meet your brewery’s space and height restrictions.
| Contact Alice today |
Microbrewing, craft brewing or commercial large brewhouses, we have the equipment, supplies & install engineers. Looking to find bottling lines and tanks for sale we have that covered.
