DGET-10BBL
DGET
8438400000
| BREWING BEER EQUIPMENT |

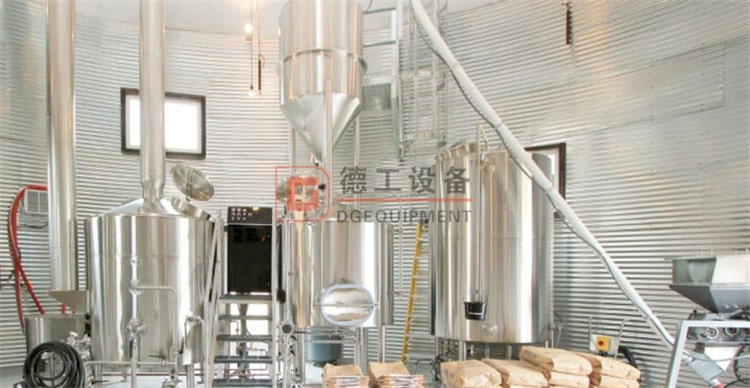

2vessel brewhouse system

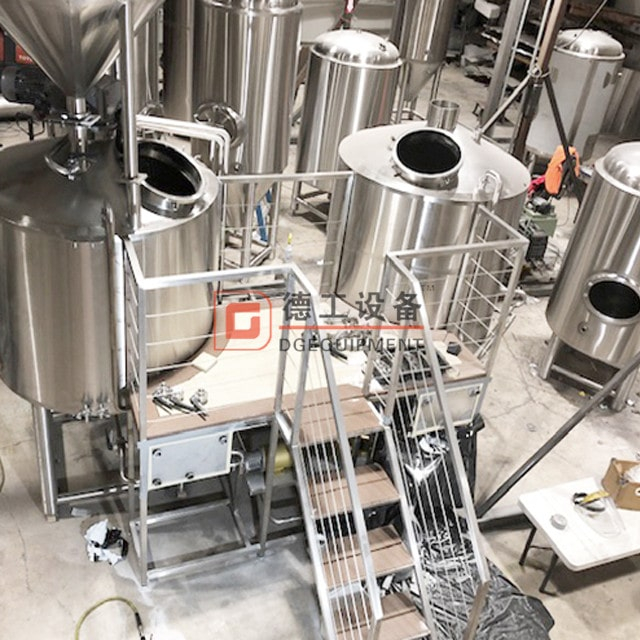

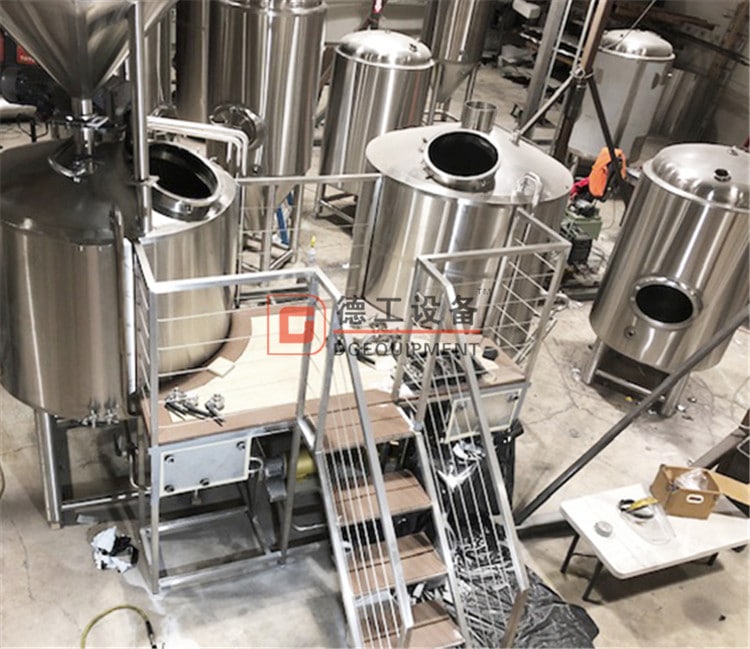

10 BBL brewhouses come in 2, 3 or 4 vessel configurations for ale or lager. All systems come with hot liquor tanks, malt handling and milling.
3-Vessel Brewhouse
When additional batches or turns are necessary, the 3-Vessel Brewhouse is a welcomed improvement over a 2-Vessel set-up. Designed for Brewhouses 10-BBL and higher, an area for a future fourth vessel can be designed into the platform and system. More automated controls are often seen to achieve faster turns and very consistent brews. There are two options for the shared vessel.
Used for Brewhouses 10BBL and larger in size. The shared vessel can vary:
Version 1
Combined Mash/Lauter Tun
Brew Kettle
Whirlpool
With the trend of heavily hopped beers, a seperate and wider whirlpool can be made at address bigger trub piles.
Version 2
Mash tun
Lauter Tun
Combined Brew Kettle/Whirlpool
This is the more traditional set-up for a 3-Vessel Brewhouse
3vessel brewhouse system
PRODUCT PARAMETERS
Features: 2, 3 and 4 vessel Brewhouse Systems,such as mash tun lauter,kettle whirlpool,hot water tank
Tank heating: gas heating with gas burner, Electric heating, Steam heating with steam bolier
Top Manways: stainless steel or glass material ;
Grist Hydrator
Heat Exchanger: two stage cooling
Fermenters with top hop additional port or not
Dimple jacket is installed on both cylinder and cone part of the equipment
Yeast tank
Bright beer tanks with cabonation stone
Glycol tank
Chiller: suitable for your cooling square.
CIP cleaning system:50L or 100L
PID control system or PLC control with simens touch screen
Pumps:wort pump,hot water pump,Glycol Pump,CIP pump
Other required brew equipment (fermentation tank, brite tank, beer kegs, etc.)
| Fermentation tank parameters | |
Features: Dished head and conical bottom Dimple cooling jacket Cladding sheet welded or riveted Insulation with Polyurethane foam Built with stainless steel 304 | Fittings: Pressure safety valve Mechanical regulating valve CIP and carbon dioxide outlet Temperature sensor Sampling valve Spray ball Manhole(top or side) Drain Outlet Hops port Pressure gauge Rotating racking arm |
| Contact Alice today |
Microbrewing, craft brewing or commercial large brewhouses, we have the equipment, supplies & install engineers. Looking to find bottling lines and tanks for sale we have that covered.
