carbonated soft drink filling packaging plant automatic craft beer canning machine production line

Filling Systems provide a range of automatic rinser/filler/seamer monoblock counter-pressure canning machines for carbonated artisan beverages such as beer.

Type:
Material:
Can material:
Function:
Quantity:
  • DGET-2000-10000CPH
  • DGET
  • 8438400000

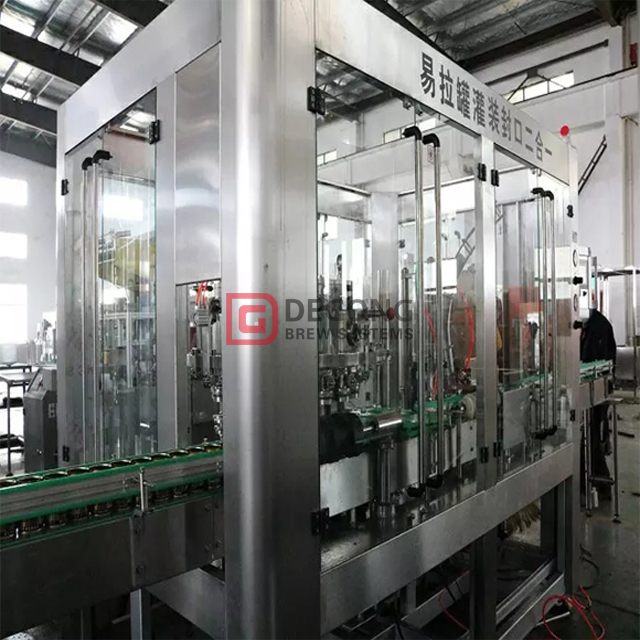

This production line is mainly used for washing,filling,sealing for tinplate,aluminum,plastic cans.It has the function of empty cans automatic depalletizer,automatic overturn cans,automatic washing,filling,and sealing.It has high production capacity.It is the ideal equipment for carbonated drink cans production line.Such as coca cola,beer etc.


HTB1qz4XXa1s3KVjSZFAq6x_ZXXa3.jpg_.webp_副本

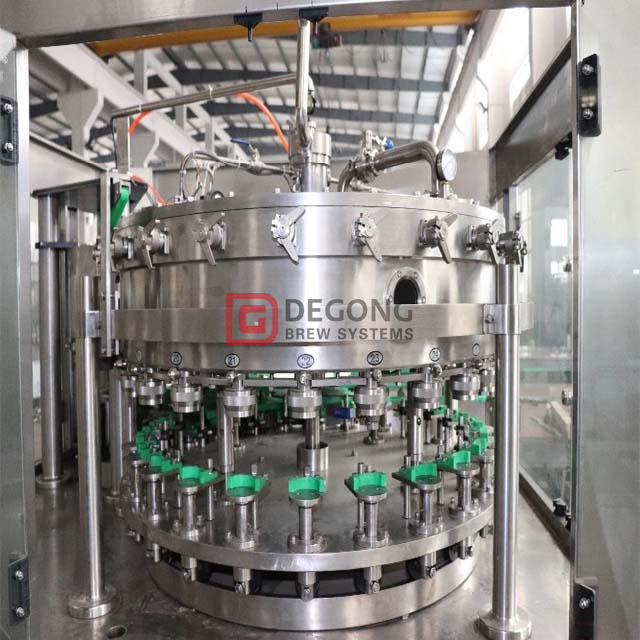

Cans filling and sealing two in one

Introduction of can filling machine

• This equipment can be used for different material of cans, such as metal tin cans and aluminum cans. Stable performance, not easy to wear out.

• Owning a mature canning machine technology, we're expert in all canning ways.

• The inlet valve closes once the specified quantity has been reached. While the can is being fed into the filler, the centering unit is raised.

• Once the magnetic float in the dosing tank has dropped to the preset switching point, the filling process is ended.


Characteristics of our Craft Beer Canning Machine

Filling part

<1> 304/316 Stainless steel high precision filling nozzle

<2> Filling volume adjustable in fine rank, same liquid level after filling

<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

<4> 304/316 stainless steel filling pump

<5>Efficient spray nozzle rinse thoroughly and save water for flushing


HTB1GLc6a4rvK1RjSszeq6yObFXaB.jpg_.webp_副本

Filling system


Sealing part

<1> Place and sealing system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

<2> All 304/316 stainless steel construction

<3> No bottle no sealing

<4> Automatic stop when lack of bottle

<5>Sealing effect is stable and reliable ,Defective rate ≤0.2%


HTB11ck6Xu6sK1RjSsrbq6xbDXXaq.jpg_.webp_副本

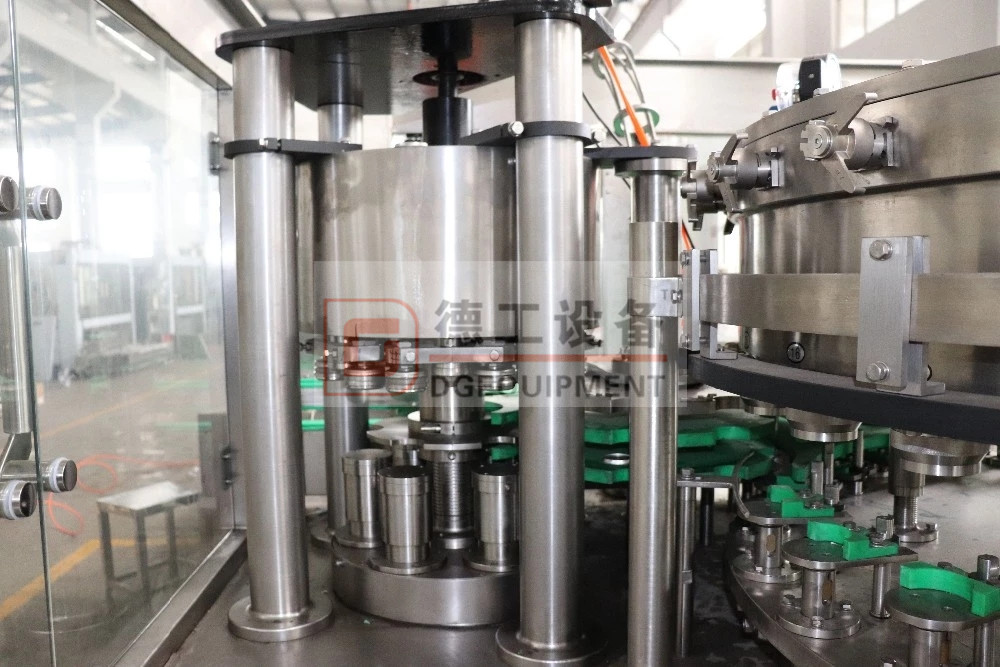

Sealer system

Flat conveyor

<1>Energy saving. High efficient. Adapt to customer factory layout

<2>Special lubrication system, keep products clean, health, safety

<3>Extended service life

<4>Electric eyes design keep whole line running safety and quickly

<5> Overload protection mechanism to effectively ensure the safety of the machine


Can Rinsing_副本

Can Rinsing



Model
DG12-1
DG18-4
DG24-6
DG36-6
Capacity (can/Hour)
1500-3000
5000-9000
10000-15000
15000-20000
Suitable can size ( ml )
150ml-500ml
φ53-φ72.9mm
height 65-190mm
φ52.5-φ83.3mm
height 70-133mm
Can size
200/202/206/209
Heads of filling
12
18
24
36
Heads of sealing
1
4
6
6
Filling way
whole machine bottom lifting up, and normal pressure filling
Filling temperature
(℃ )
65℃ -95℃ Normal temp or 65-95° C
Power source specification
380V/50HZ
Power (kw)
2.2
3
4
5.5
Overall dimension(mm)
2200x1600x2200
2500x2000x2350
2850x1800x2200
3200x2100x2350
Weight(kg)
2500
3800
3850
4200
You also can customize the size according to your requirement,here is only part of sample.
