Overview
Working with all relevant partners, DEGONG can manage the design, engineering, build and installation of beer brewing equipment that helps you achieve your unique brewing process and replicate it.The full line products including milling, mashing, fermentation, cooling, filtration, filling and other related processes.

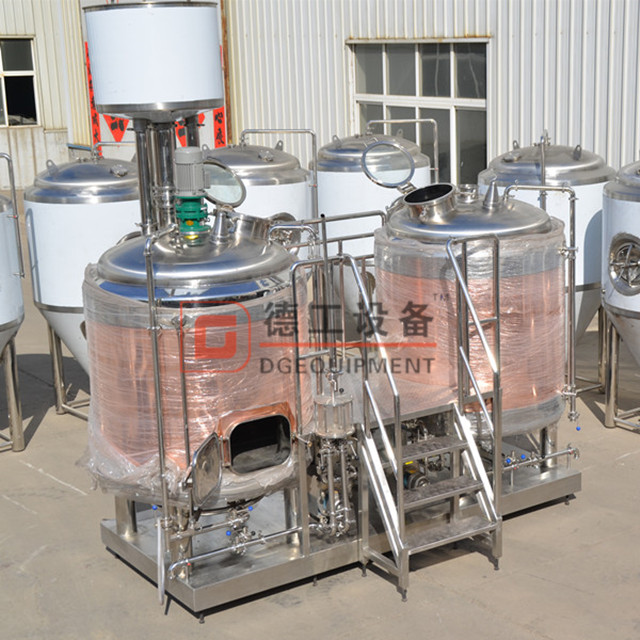

Mashing system
Mush/brewhouse heated via steam,electric or direct fired
Flexible brewhouse designs to accommodate your available square footage and ceiling heights
Custom can design brew houses for sour beer production
Brewhouse configurations from 2-vessel to multi-vessel designs
configuration deails:
Material: Inner(SUS304),thickness: 3.0mm;
External-Jacket(SUS 304), thickness: 2.0mm;
Cylinder (sharp type, SUS304), thickness: 2.0mm.
Inner surface treatment: welds grinded to Ra 0.6µm.
Insulation: Polyurethane-thickness 100 mm.
Temperature way:Double metal thermometer
Outsourcing surface: Weld polishing processing
Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.
CIP 360 degrees Omni bearing cleaning
Integrated CIP System
Hot Liquor Tank –Designed and Sized for Double Brew efficiency
Cold Liquor Tank –Fully insulated and integrated
Stainless steel 304 pump with ABB or Siemens motors
Mash / Lauter Tun with grain raker
Boiling/whirlpool tank with whirlpool port and stir blades
304 stainless steel operate platform and stairs
Plate heat exchenger design pressure :1.0Mpa

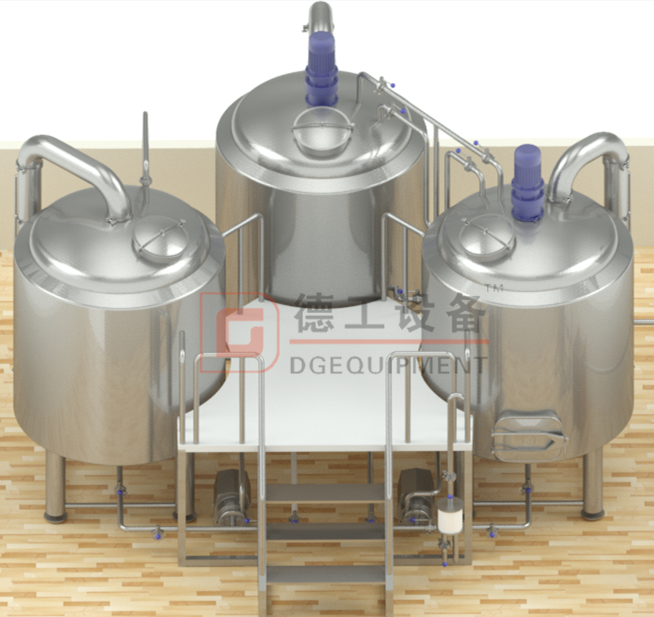

3D view of 3-vessel brewhouse equipment

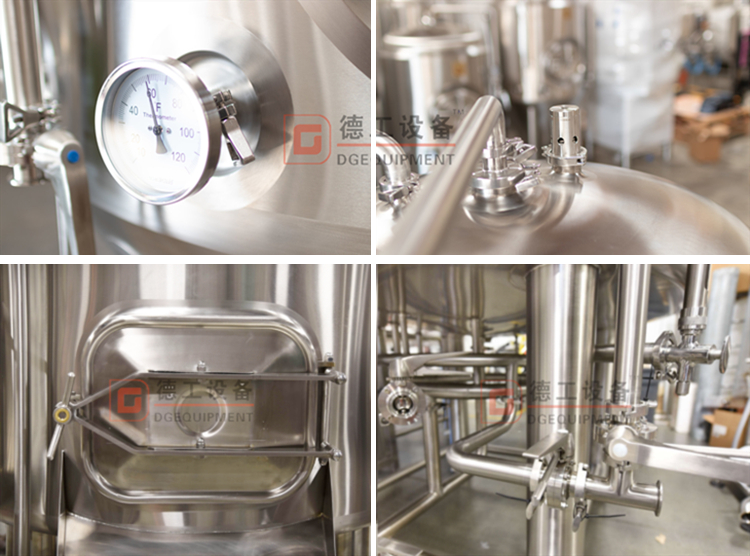

components and accesseries of brewhouse equipment

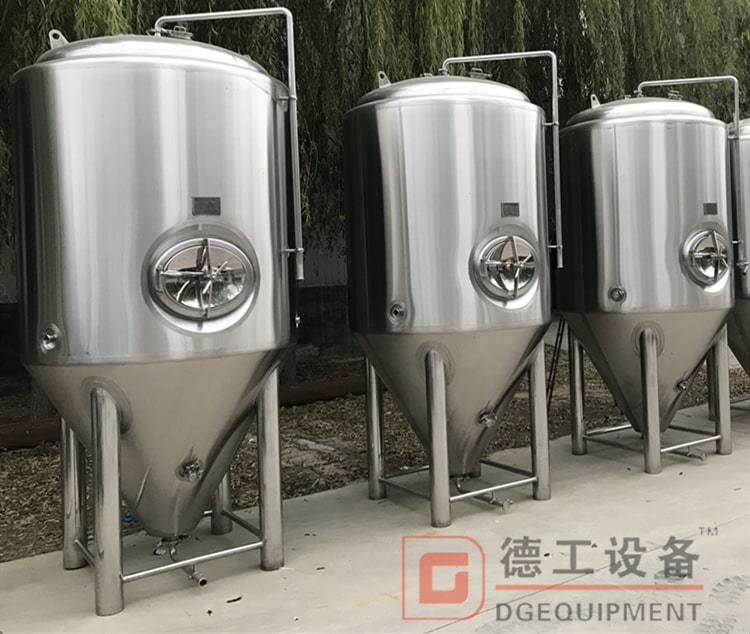

Fermentation system
Degong's fermentation tank is certified with ISO,CE and TUV,featuring high quality and being applied in beer bar,restaurant, beverage factory in more than 50 countries all over the world. It will be the best choice for the buyer who want establish the commercial and industrial brewery for brewing the unique taste of beer. Technically speaking, the fermentation system is consisted of fermenter,bright beer tank, yeast tank and other accessories.
Configuration details:
Material Inner (SUS304)thickness: 3.0mm; Outer(SUS304)thickness:2.0mm
External-Jacket(SUS304) thickness: 1.5mm;
Oval head cone bottom, thickness: 3.0mm.
Surface: Finish2B – cold-rolled, annealed, pickled
Inner surface treatment: welds grinded to Ra 0.6μm (attached 360 degree Omni cleaning ball).
Mirror surface finish inside.
100% TIG welding with pure argon gas shield
Insulation: Polyurethane-thickness 100 mm.
Equipment with : cone 60°resist compression design，dripping 10.Temperature drop.
Cleaning System: All-round cleaning
Vessel Pressure: test pressure 3 bar, working pressure 1.5 bar
Cooling system
chiller,
Refrigerant: Freon R404A, Copeland compressor
glycol water tank
Glycol water circulation pump, VFD control
PPR pipe
Control system
Control system is the soul of a whole set of brewery equipment. It controls the running of each components such as pump, motor and whole brewery system. Degong’s control system is a integrated box which houses the terminals of all components.
Semi automatic control system or PLC fully automatic control system if requested
Siemens/Schneider/Omron components
PC or mobile remote control if requested
Individual control system for brewhouse system and fermentation system

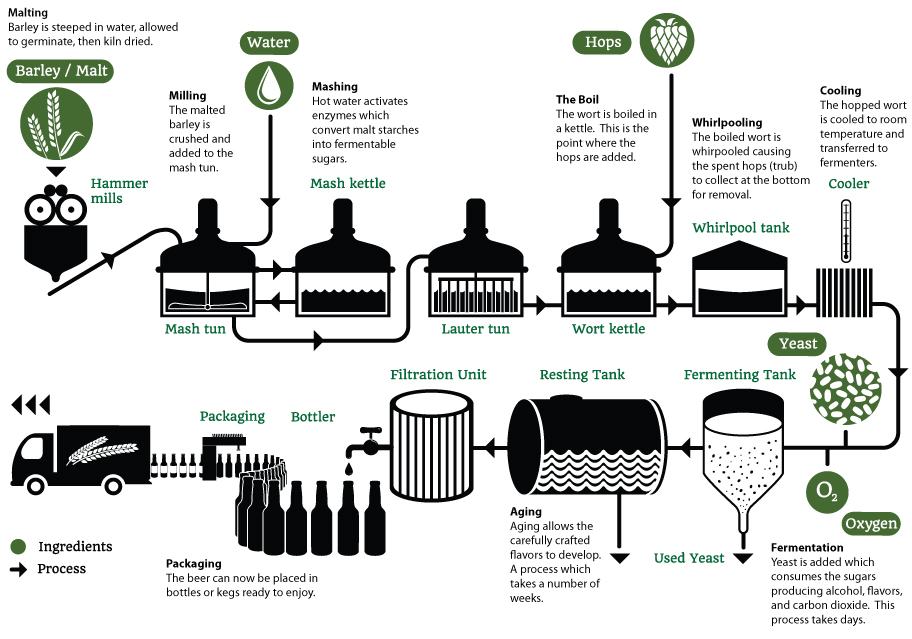

Brewing Process
Our certificate
With the high standard of brewery equipment both in row materials and manufactures, DEGONG have passed 4 international certification: ISO9001,ISO14001,SGS ,TUV and CE

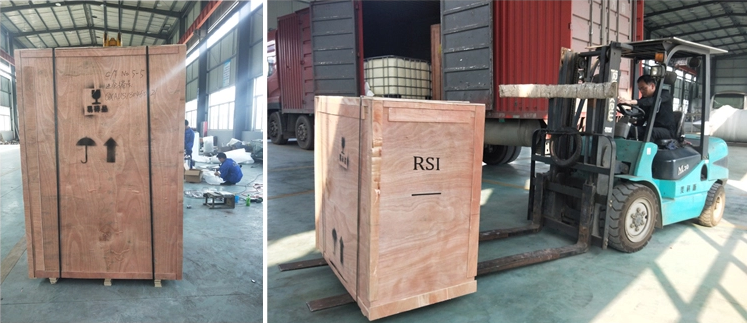

Packing&delivery
Packaging type : standard wooden package
Package details : As usual, we adopt wooden case as package type. It's suitable for long-distance
FAQ
Q1:What’s the payment you prefer?
A:Our standard payment terms are T/T with 30% deposits and balanced before shipment.
Q2:Do you have technical support after we purchased equipment?
A:We will arrange the professional technician to go to your factory and give the support to help you learn how to install and maintenance the machine or help you to fix the machine when it has problems.
Q3:Where is your factory?
A:Our factory is located in Dezhou City, Shandong province,China. We can pick you up at the airport whenever you want to visit the factory.
Q4:How long time for installation?
A:It’s according to your equipment order, it about 10days to 25 days.
Q5:Where is the port of loading?
A:The port of loading is Qingdao
Contact us
Every Brewhouse is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
