7BBL Pub Ale Conical Fermentation Tank Beer Brewing Equipment Beer System Manufacturing Plant Cost

DEGONG can design and manufacture beer brewing equipment used for any type beer,such as ale,lager,IPA....All of the equipment is customized according to your requirement.If you don't know more about beer brewery machine,our engineer can give you the most professional suggestions according to your brewing plan,such as daily output or others....

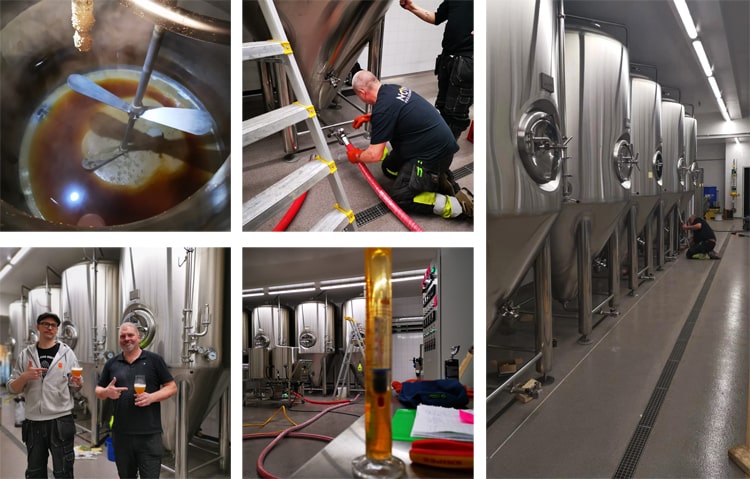

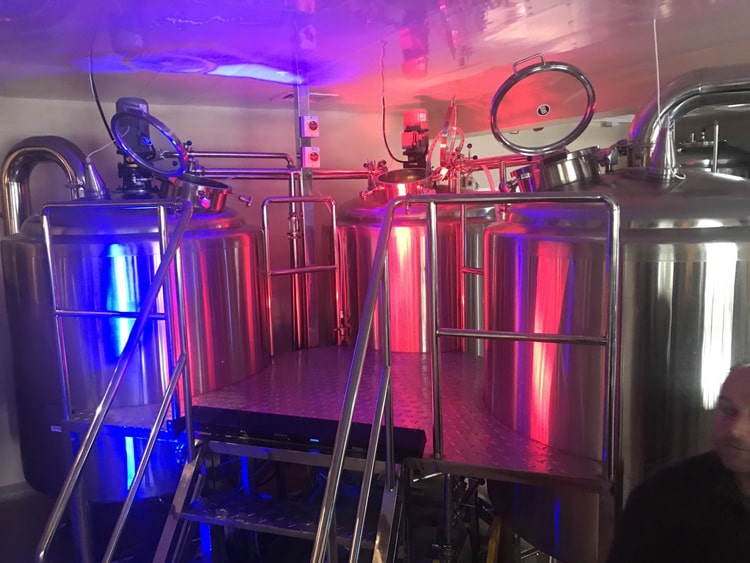

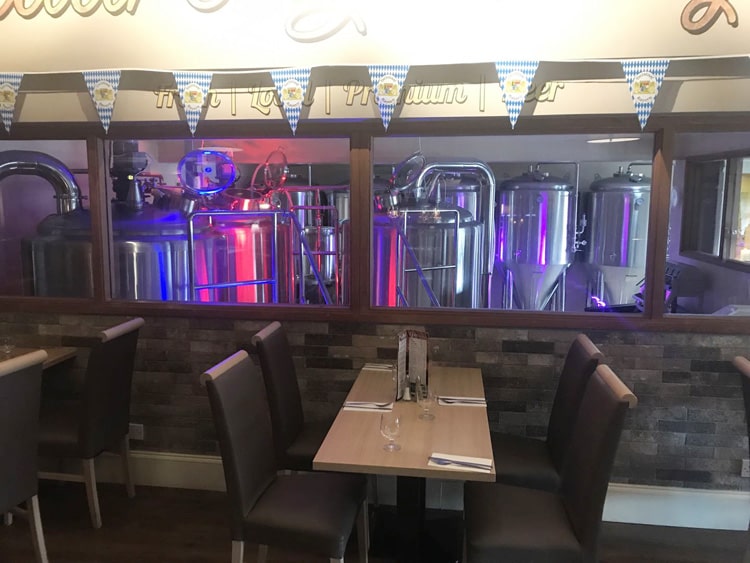

Our beer brewing equipment is customer's brewing bar(Ireland)

The turnkey brewing system includes milling, mashing system, fermentation system, cooling system, CIP and control system.Every system is indispensable and variable.In other words, the system with same size has thousands of different configurations.For example, the mashing system can be two vessels or three vessels or four vessels, heating method can be electricity, steam and direct fire.The fermenting tank’s quantity is base on customer’s brewing plan,and  the fermenting tank parameters can be customized according to your needs, etc..

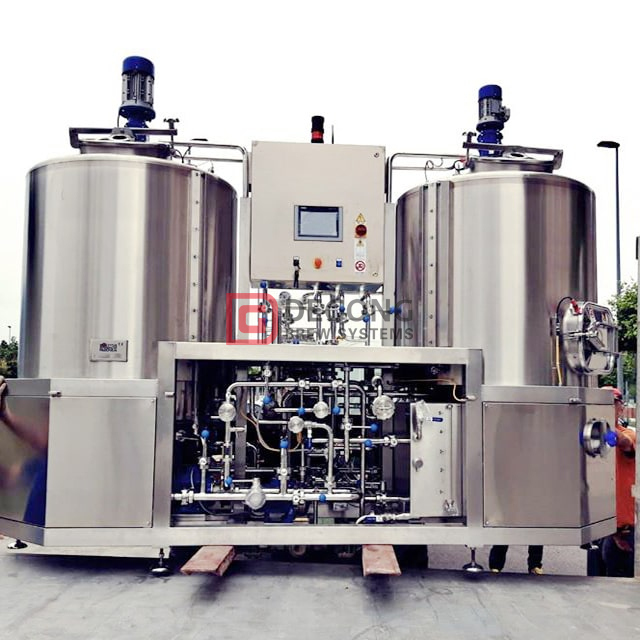

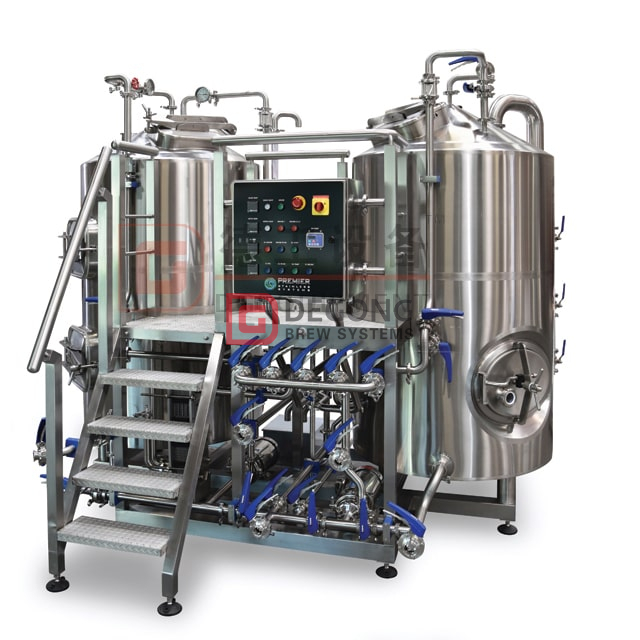

7BBL beer brewery tanks 3-VESSEL beer brewhouse/mashing system

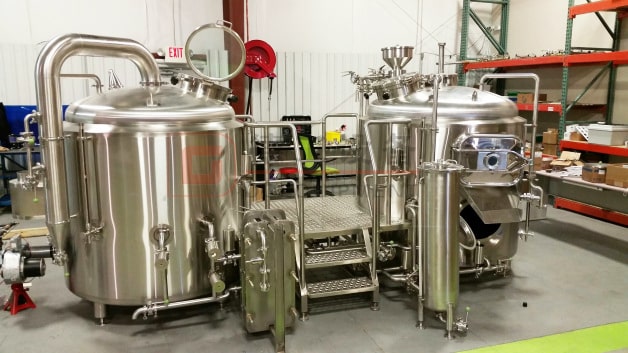

The brewhouse is 3 vessels beer mashing system,which include mash/boiling/hot water tank+lauter tank+whirlpool tank.You can combine the tanks freely according to your requirement.The whole mashing system also includes pumps, heat exchangers, hops filters, platforms, , oxygenation equipment, etc.

Raker,false bottom,VFD wort pump,operation platform,sight glass

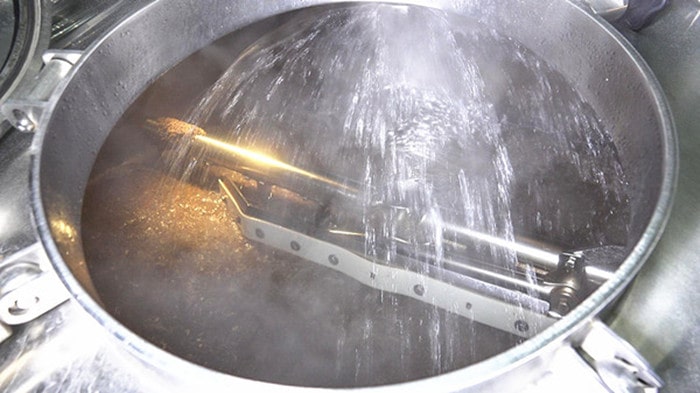

Sparging

Sight glass manhole for looking inside of tank, automatic spent grain removable system

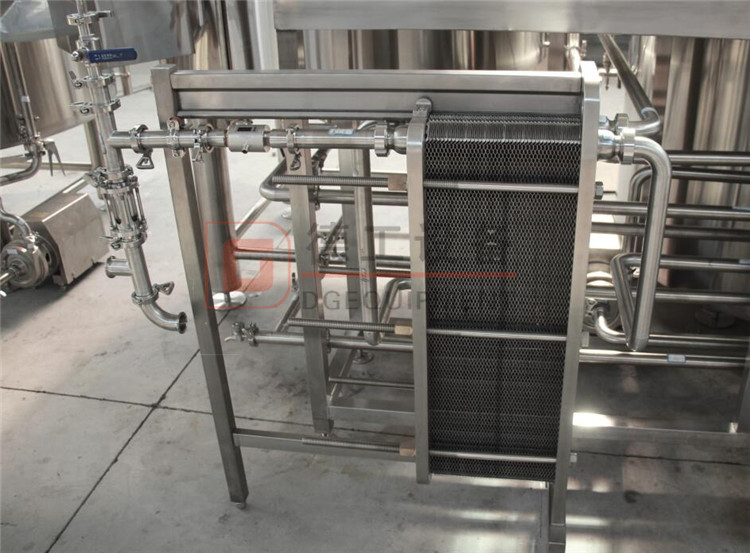

Plate heat exchanger,it can be single stage(cold water) or double stages(glycol water and city water)

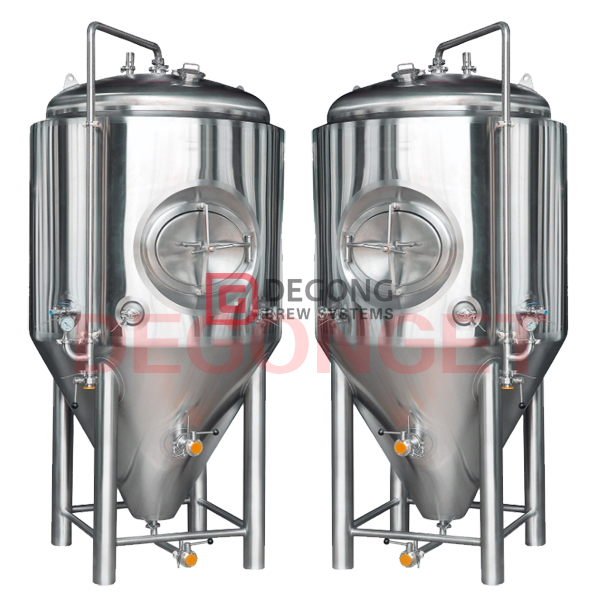

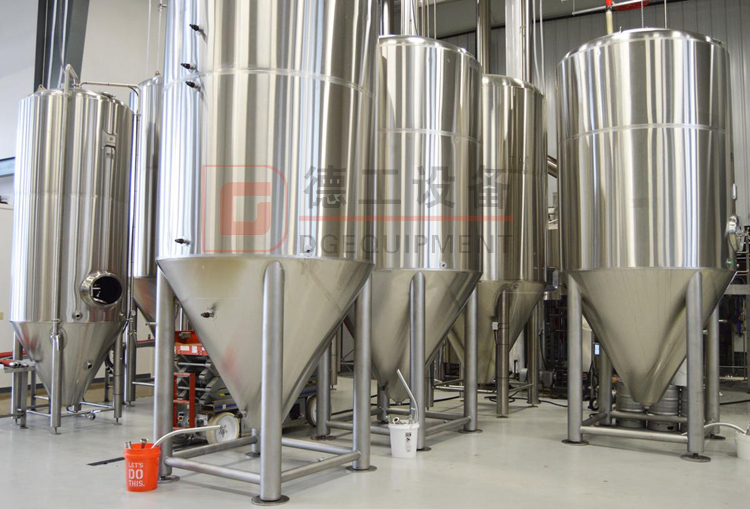

14BBL Stainless steel conical beer fermentation tank/fermenter/Unitank

Fermentation Tanks are equipped with separate cooling zones which can be individually controlled and entirely insulated. CIP tube and a cleaning head included. The materials used and the surface finishing depend on the intended application and the customers’ specifications.

Normally,there are hops hole and vacuum valve on the top,pressure guage and apunding valve on the CIP arm.One-Touch Racking Arm on cone,CIP Spray Ball,temperature sensor and carbonation stone on the tank.

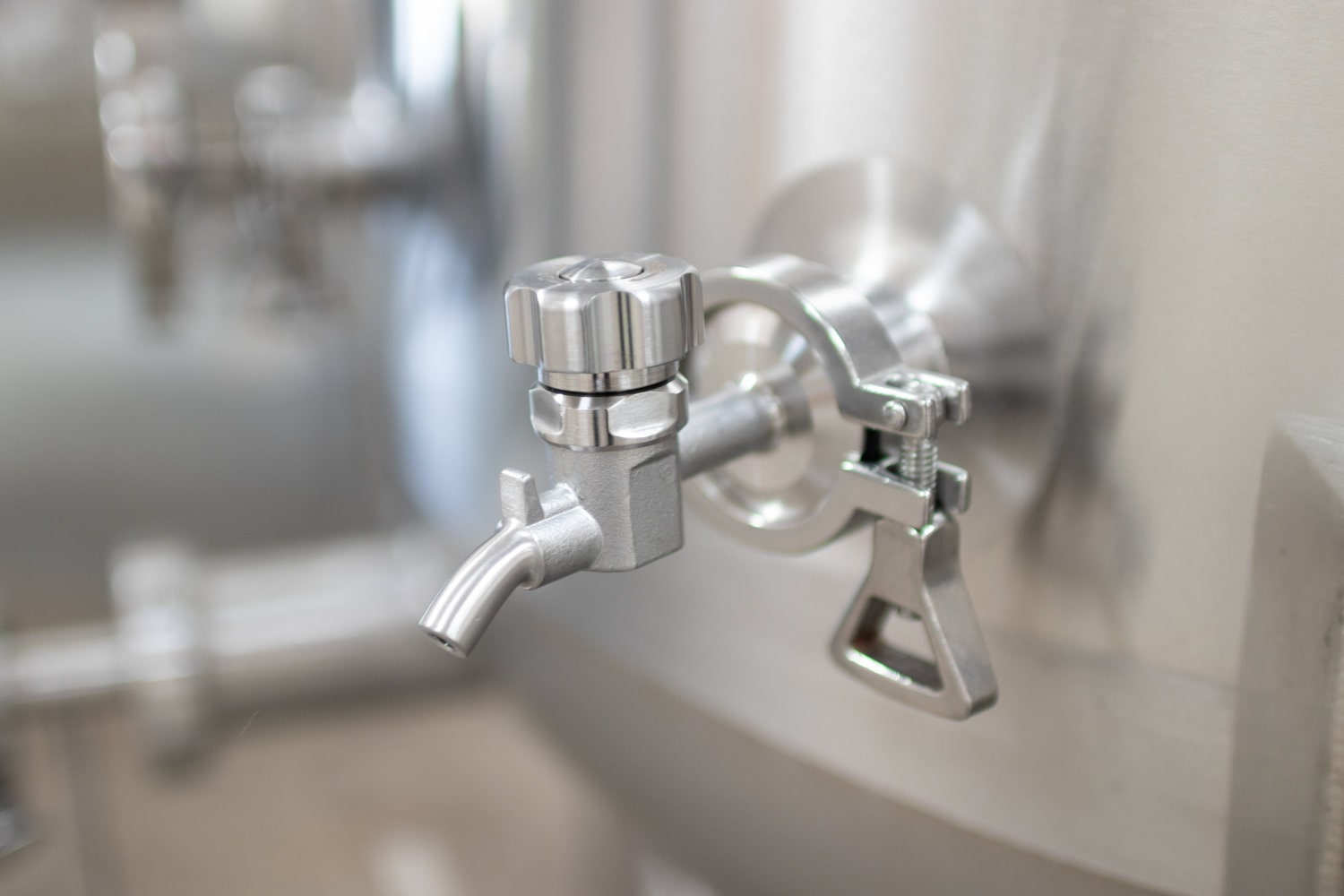

Sample valve

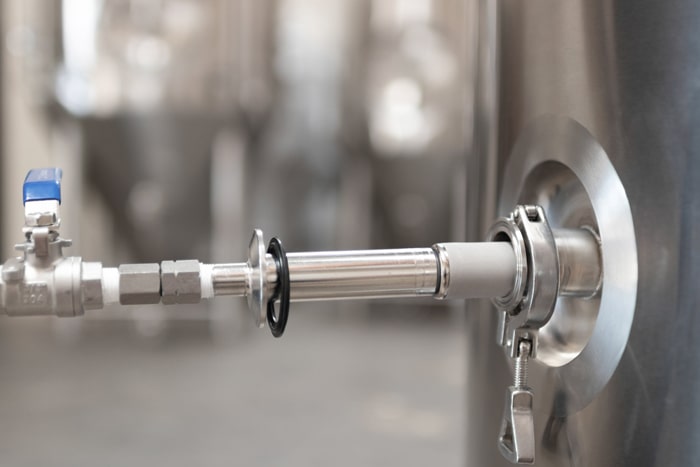

Carbonation stone system

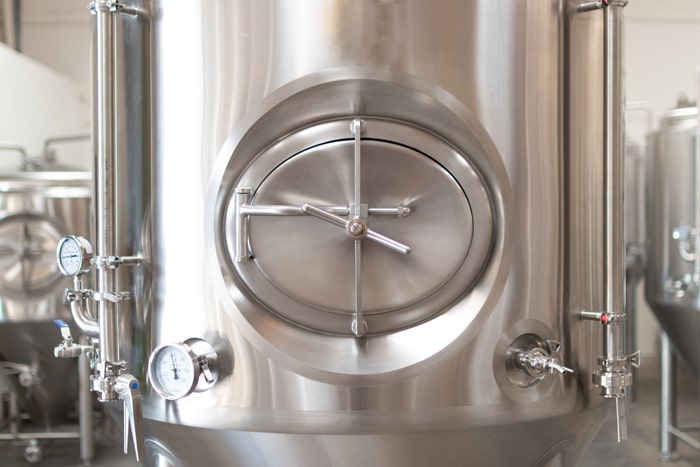

Side manhole,temperature meter,pressure guage

304 SS or 316LSS Conical Fermentation Tankshave a60° Cone Angle.

30% head space at least for each tank

Motorized mash mixers, lauter rakes and spent-grain plow

ABB Siemens motors/pumps on the whole system

Stainless steel process piping, work cabinet and control cabinet

Siemens/Schneider/Omron electric element

Oversized heat exchangers,cooling system,heating element(element,steam generator)

Tempered all-glass manways

Grirst hydrator bowl with hot/cold liquor blending

8- to 10-in. steam condensation pipe with cool water jets and drain

Sight level indicators on fermenting system.

Insulated with a minimum of 80mm Chloride-Free PU Insulation.

#4 overall finish; exterior and interior.

Interior Finish: Overall polishing to 0.4 μm without dead corner

The interior of the shell is Professionally Passivated.

Adjustable Levelers provide a level tank regardless of floor slope; (4) total legs with (4) forklift accessible crossbars.

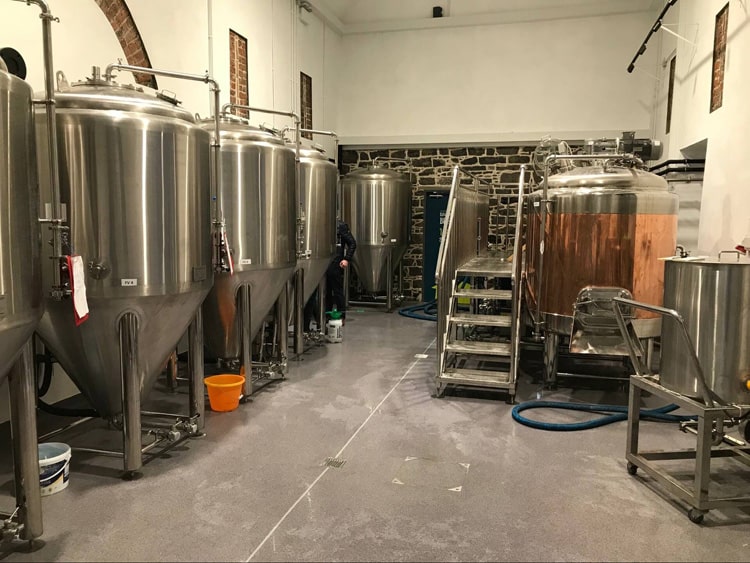

1000L stainless steel beer brewing system in Ireland

1000L copper beer brewing system in Sweden

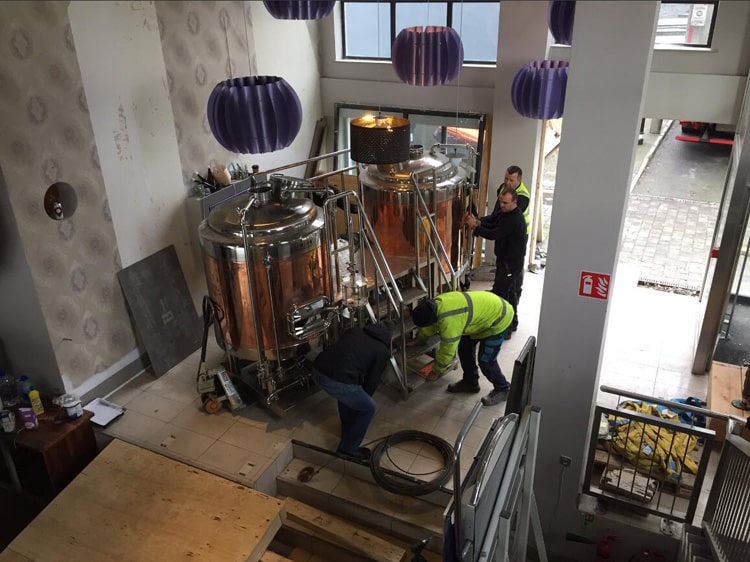

500L copper 2 vessels brewing mashing system in Ireland
