DGET-6BBL
DEGONG
8438400000

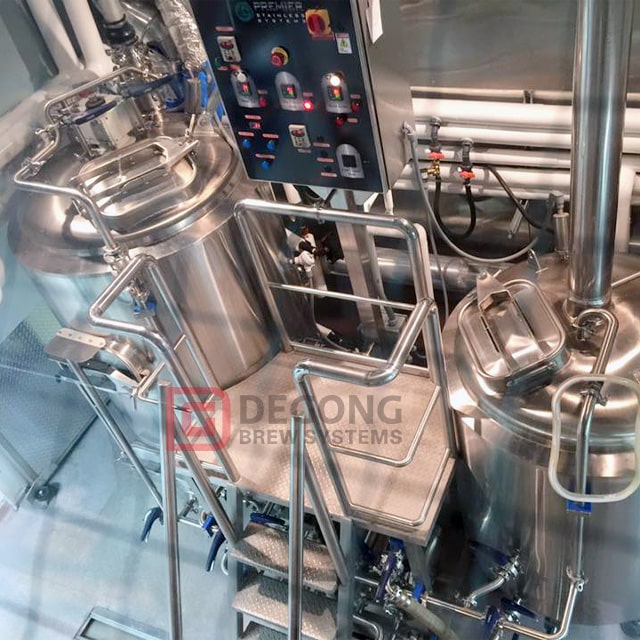

This brewhouse is planned with a capacity of 700L(6BBL) per brew cycle.
The whole brewhouse is built from stainless steel.
It consists of 2 vessels:
Mash and wort kettle
Lauter vessel and whirlpool, which is placed under the lauter vessel and used during lautering as the first running pot

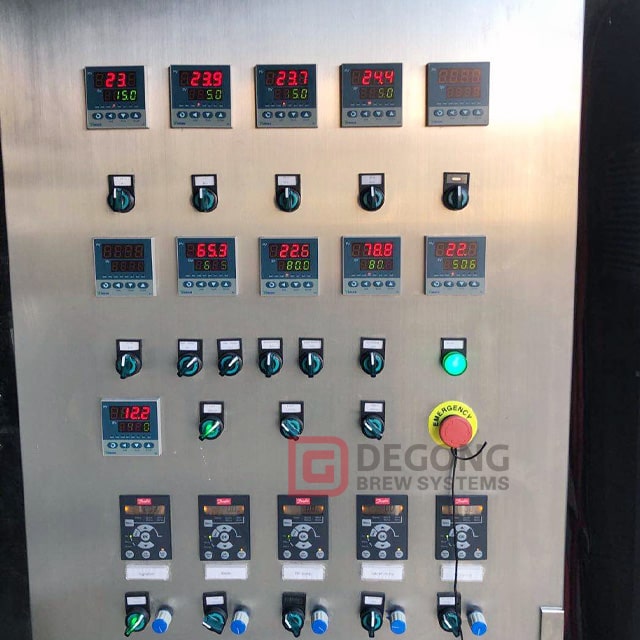

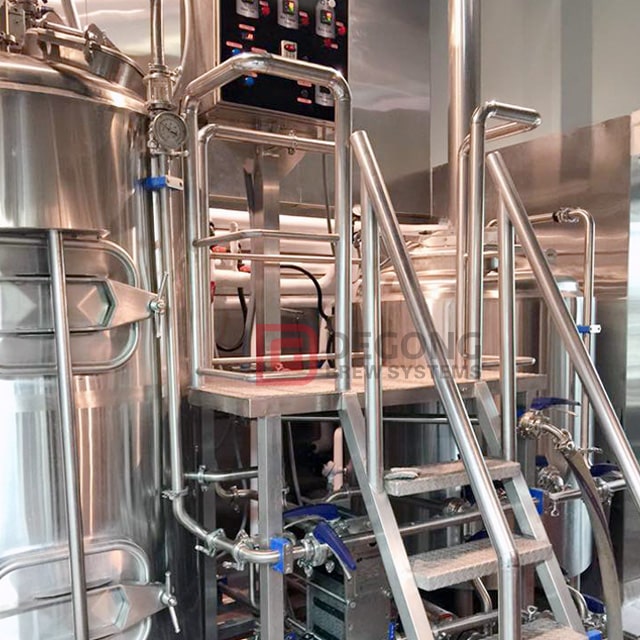

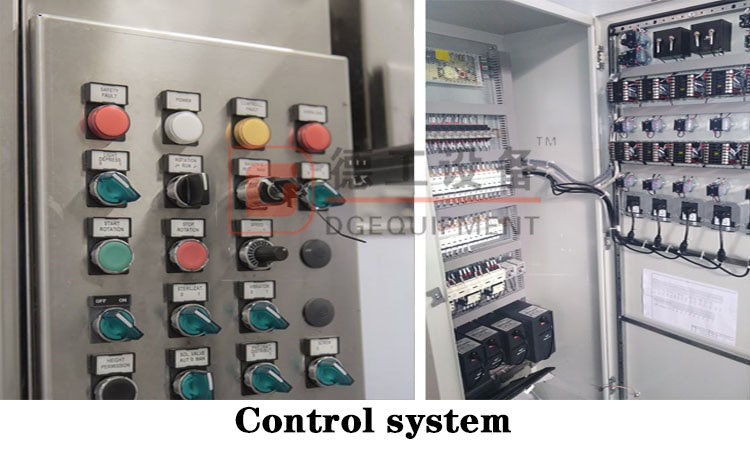

Between the brewing kettles, there is a stage mounted. In the back part of the unit the control panel is mounted with the control and feedback devices.
Manual Operation:
All valves are operated directly on the valves. In this case the piping is built, that the operation is comfortable for the operator.
All motors will be started by switches on the control panel.
The temperature control is done by a simple temperature controler.
Optional for additional charge:
Partly automated control
Fully automated control
Touch panel
Visualization software for the brew process
Input for recipes and fault analytics
With electrical sensors and signalization device
Automated, with pneumatic valves in the piping
Flow meter to control the lautering speed
In the fully automated control, every option is included
Vapour condensor consists of: heat exchanger, valves and fan to remove boiling vapors
Would you like to take a closer look at our offer?
