| Thickness of material (mm): | |
|---|---|
| Material: | |
| Insulation: | |
| Quantity: | |
DGET-5HL
DGET
8438400000
| 5HL beer brewing equipment used for restaurant,bar... |
Our Production Director has 10 years of experience in equipment production with excellent workshop management and quality control Mr. Wang ensures that all equipment leaving the factory adheres to the highest quality.
Quality Inspector: with production process control, testing, inspection, shipping safety and making sure that all the equipment leaves the factory and arrives to our clients in perfect condition.
Design Technician:with rich experiences in designing CAD, 3D and equipment design.
Professional Engineers: installation, brewing and designing allows to provide all solutions. have been working on equipment installation for ten years in China & abroad.
2-vessel brewhouse on the platform
| Capacity | 500L/Batch |
| Material | SUS304 |
| Combination method | Mash/lauter tun, kettle/whirlpool tank |
| Application | Restaurants, bars, hotels, microbrewery |
| Heating source | Steam heating/Electric heating |
| Voltage | AC380/220V, 50/60HZ |
| Wort Pumps | 3t/h |
| Diameter | 1060mm |
| Height | 1900mm |
| Floor area | 5m2 |
| Degree of automation | Semi-automatic/Fully automatic |

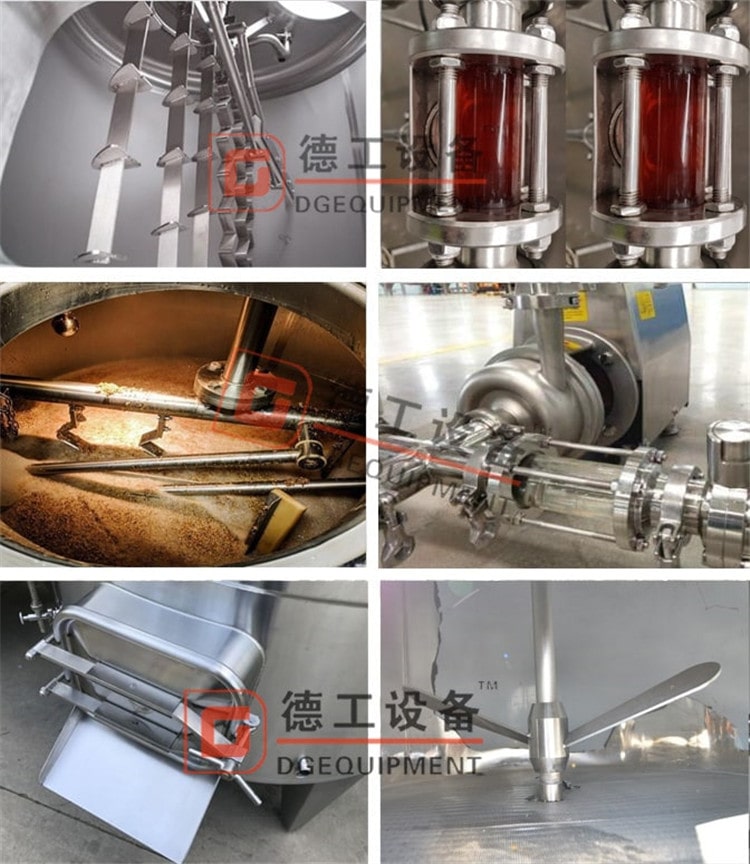

Rake system,sight glass,grain outdoor... to produce wort for the brewhouse
500L Brewery Standard configuration:
Malt Miller 100-150kg/h stainless steel
Brewhouse System 2-vessel
-Mash/Lauter tun with mixer;Installed rakers and false bottom for grains separation
-Kettle/Whirlpool tank with Tangential inlet and agitator
-Wort Whirlpool-sanitary centrifugal mash pump
-Heating: steam heating by electric boiler
-Top glass manway door 400mm
-PT100, connected to the controller for automatic temperature controlling
-Wort pump:food grade sanitary and high efficiency wort pump
-Wort cooling: Two stages or single stage Plate heat exchanger
-360°spray ball cleaning with high efficiency
-All necessary pipings and fittings

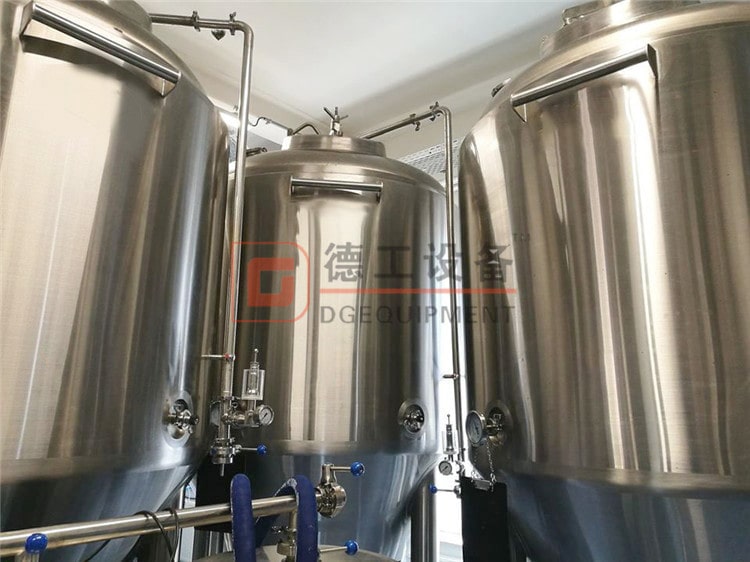

Fermenting system
Fermentation tanks
-Number of FV:6 sets
-Usage: fermentation, maturation and storage
-Top domed with conical bottom
-Material: SUS 304, inner thickness 3mm, outer thickness2.0mm, Insulation: PU80-100mm
-Top manway/side manway
-Cone bottom, 60 degree
-Pressure gauge, Safety/vacuum valve
-Cooling jackets on both cylinder and cone
-Temperature sensor, PT100
-SS legs and feet with adjustable bolts
-Inside 360 rotating CIP ball
-Working pressure: 0.15Mpa, Testing pressure: 0.3Mpa
-Carbonation stone
- Dry hops port
- Rotating Racking arm
-Spunding valve
Top or side manway fermentation tanks can be accessible
Bright beer tanks:
-Number of BBT: 5 sets
-Usage: bright beer, maturation and storage
-Top domed with conical bottom
-Material: SUS 304, inner thickness 3mm, outer thickness2.0mm, Insulation: PU80mm
-Top manway/side manway
-Cone bottom, 150 degree
-Pressure gauge, Safety/vacuum valve
-Cooling jackets on both cylinder and cone
-Temperature sensor, PT100
-SS legs and feet with adjustable bolts
-Inside 360 rotating CIP ball
-Working pressure: 0.15Mpa, Testing pressure: 0.3Mpa
-Carbonation stone
- Level display
Our engineers can design drawings according to clients' request
