DGET-5bbl
DGET
8438400000
5BBL PUB BREWING SYSTEM

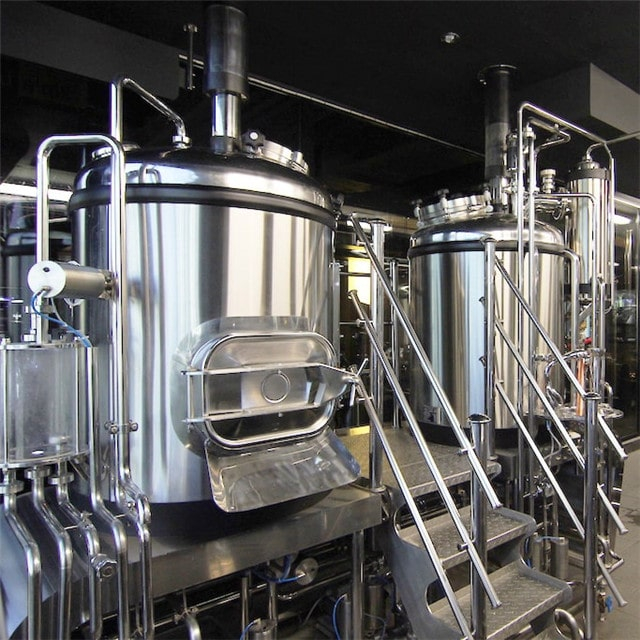

Brewhouse system
In our Standard 5BBL brewhouse is built turnkey systems that offer the quality you need to produce your best brew. They also use the same technology as our large-scale systems to ensure durability in any production.
Copper or stainless steel construction brewhouse system
Partial list of technical characteristics:
All our 5bbl systems come with complete TIG welded tanks and piping
Constructed of 304 Stainless Steel
All piping is TRC fitted, including every elbow, tee and curve in the system; allows for a 100% sanitary system
All pumps in the brewhouse include 100% stainless steel pumps and motors
MLT with closed top glass manway
Rake System – both non-lifting and hydraulic lifting optional
OPTIONS:
Automation systems
Complete Grain Mill System available
Various Stainless Steel Finishes
Our standard brewing systems come with a 2B mill finish; other finishes are available including:
Polished
Brushed
Satin Finish
Copper Clad and/or Copper accented

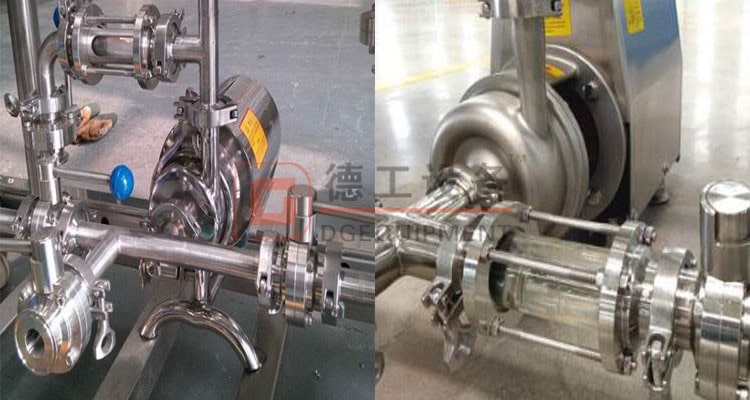

Centrifugal Pumps
Centrifugal pumps are the workhorse of the brewing industry. These brewery pumps are capable of transferring large quantities of product in a short amount of time. They are typically used for CIP, transferring and filtration.
Pump can be supplied with a freq. drive for variable speed control
Brewhouse system transfer pumps
Cellar tanks
Intuitive design, high quality materials and exemplary workmanship goes into every vessel. The end result are superior cellar tanks that hold near-freezing lagering temperatures with ease. A unique high polish interior along with a single point head penetration lends itself to shorter clean in place times and more thorough sanitation. Every aspect of the design is carefully considered and meticulously finished such that the brewhouse and cellar vessels can be aesthetic center of your brewery.
FERMENTERS
Conical primary fermentation vessels are fully glycol jacketed and insulated. Beer fermentation vessels are available in a common 60 degree, but like everything we do, can be customized to fit your space and brewing style.
BRITE TANKS
Dish bottom secondary fermentation vessels are available fully glycol jacketed and insulated or as single walled serving tanks.
UNITANKS
Our Unitanks are designed like a fermenter with brite tank features for an all-in-one style fermentation vessel. Unitanks are a versatile choice when space is an issue.
LAGER TANKS
Horizontal fermentation vessels, designed to maximize surface area, promoting efficient lager fermentation. Great for brewing fruit beers too. Fully glycol jacketed, insulated and stackable.
Beer brewery Cellar tanks
FERMENTERS + UNI TANKS
100% 304 Sanitary Stainless Steel Fabrication
3mm Interior Construction
2mm Exterior Construction
CIP Blowoff and Pressure/Vacuum Release Valve in a Single Connection for Increased Sanitation and Ease of Cleaning.
Multi-Zone Glycol Jacketed Sidewall and Cones
Conical Outlet, Maximizes Yeast Collection and CIP Efficiency.
Racking Arms with DIN Fitting Connection
80-100mm polyurethane Insulation Barrier
Sample Valves
Sanitary Butterfly Valves
Shadowless Manways
Leveling Footpads, Pre-drilled for Anchor Bolts
Thermowell for Temperature Probe
Sight Tube (Uni Tanks Only)
Carbonation Stone with Check Valve (Uni Tanks Only)
BRITE TANKS
100% 304 stainless steel fabrication
3mm Interior Construction
2mm Exterior Construction
CIP Blowoff and Pressure/Vacuum Release Valve in a Single Connection for Increased Sanitation and Ease of Cleaning.
Multi-Zone Glycol Jacketed
Available Racking Arms with DIN Fitting Connection
Insulation Barrier
Sample Valves
Sanitary Butterfly Valves
Shadowless Manways
Leveling Footpads, Pre-drilled for Anchor Bolts
Thermowell for Temperature Probe
Sight Tube
Carbonation Stone with Check Valve
Contact us
Ready to Get Started Building Your Dream brewery?
Contact DEGONG Alice Today!
