7 BBL brewing equipment affordable cost for turnkey bar brewery equipment

We work with brewers large and small to design and fabricate custom brewhouses, cellar tanks and various other sophisticated brewery-specific support vessels and systems. Our brewery team combines decades of experience engineering brewhouse equipment, brewing, process engineering, fabricating sanitary stainless systems and integrating automation & control systems.
Thickness of material (mm):
Heating method:
Material:
Availability:
Quantity:
  • DGET-7BBL

  • DGET

  • 8438400000

7BBL brewing equipment



Our 7bbl brewhouse is an excellent system for medium sized brew pubs.  The ultimate in capacity flexibility, this multi vessel brewing system will allow you to brew full batch rotators and double batch flagships. Get your 7 bbl brewing system started with variety and flexibility at your fingertips.

layout-min

 I. Malt Miller

-Type: double roller, alloy rollers

-Rollers distance adjustable

-Stainless Steel Frame

-Conveyor can be added

mill system

 II. Brewhouse

Vessels Standard configuration: MLT+BKW+HLT.

Others: Mash/Brew Kettle +Lauter & Whirlpool Tank;

Mash, Lauter, Brew kettle, Whirlpool, HLT, CLT.


brewhouse1-min

7bbl brewing equipment with working platform


Heating Method:

Steam Heating/Electric Heating/ Direct fire


Specifications:

-With 30% Total Volume

-Dome top and cone bottom; bottom cone 150 degree

-Interior Shell: SUS304, Thickness 3.0mm

-Exterior Shell: SUS304, Thickness 2.0mm

-Insulation: PU Thickness 100mm

-100% TIG welding with pure argon gas shield

-Interior Finish: 0.4μm/ Mirror Polishing

-Top mounted manhole

-360° CIP spraying ball

-Thermowell with high accuracy temperature sensor: PT100

-MLT with agitator with motor reducer, CE/UL Listed

-MLT with side hatch for spent grains

-MLT with easy-clean and detachable sparging arm

-MLT with easy-clean and detachable false bottom

-BKW with tangential inlet for whirlpool function


Plate Heat Exchanger

-2 stages for Glycol water and City water

-SUS 304 Plates and frame


Wort and HLT Pumps:-CE/UL Listed

Oxygenator

Brewhouse pipelines and Valves


SUS 304 Working Platform

Optional:

-Grist hydrator

-Wort Buffer Tank

-Platform

-Flow meter

-Pneumatic Valves

-Others


 III. Brewery Fermenting Vessel/Brite tanks

-Total capacity: with 25% headspace

-Dome top and cone bottom, bottom cone, (60 degree)

-Interior Shell: SUS304, Thickness 3.0mm;

-Exterior Shell: SUS304, Thickness 2.0mm;

-Insulation: PU, Thickness 100mm

-100% TIG welding with pure argon gas shield

-Interior Finish: to 0.4μm/ Mirror polishing

-Cooling Jacket: both on cone and cylinder parts, Thickness 1.5mm

-Top mounted manhole/Side manhole

-Relief/vacuum valve

-Dry hop port

-Thermometer

-Sample valve

-Bung apparatus with pressure gauge

-Test Pressure: 0.3Mpa, Working pressure: 0.15-0.2Mpa.

-Rotating racking arm on cone with butterfly valve

-Drainage with butterfly valve

-CIP arm with 360° spraying ball

-Thermowell with high accuracy temperature sensor: PT100


Optional:

Level Tube

CO2 Carbonation Stone

Pressurized Hop drop feeder

Other requirements

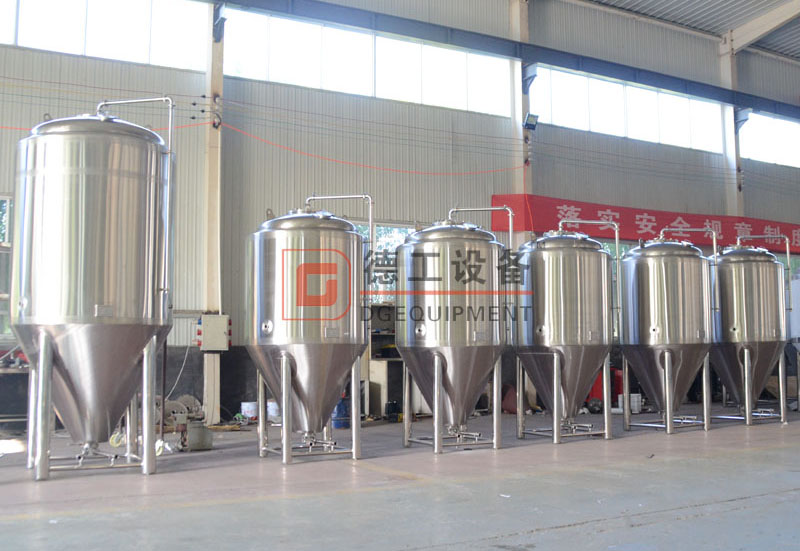

DSC_8839

Brewery equipment feremtnation tanks


 IV. Cooling System

Glycol tank

-Dome top and cone bottom, bottom cone, 160 degree

-Interior Shell: SUS304, Thickness 3.0mm;

-Exterior Shell: SUS304, Thickness  2.0mm;

-Insulation: PU, Thickness 100mm

-100% TIG welding with pure argon gas shield

-Thermowell with high accuracy temperature sensor: PT100

Glycol Chiller

-Condenser type: Efficient inner fin coil type

-Noise level:<61db

Glycol Water Pump: CE/UL Listed

cooling system

 V. CIP Cart

-Alkali tank

-Sterilization tank

-Shell: SUS304; Thickness 2mm

-Interior Finish: 0.4~0.6μm/Mirror Polishing

-Pipelines and valves

-CIP Pump: CE/UL Listed

-CIP reinforced hose

CIP cleaning system


 VI. Control System

PID Control / PLC Control


-Mashing temperature setting

-Boiling temperature setting

-Lautering temperature

-pumps speed controlling by VFD

-Mash agitator speed controlling by VFD

-HLT pump controlling

-Fermentation temperature setting

-Cooling system Controlling

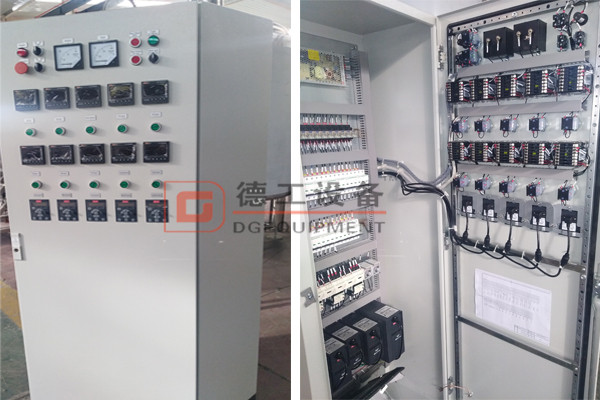

控制柜_副本

Control panel


 VII. Other Auxiliary Equipment

Water treatment RO System

Steam boiler: Electric/ Gas/diesel

Hops filter tank/hops gun

Beer kegs

keg washing machine & filling machine

Bottle filling and capping machine
