DGET-5BBL
DGET
8438400000
The DGET brewery equipment used for brewing craft beer has two tuns. One of them has been designed specifically for mashing and lautering, while the other is in charge of brewing and the whirlpool.
| Features of brewery equipment: |
5BBL 2 vessel brewhouse system with big sight glass
Brewery system include mash mixer, lauter tun and kettle/whirlpool tank. Other accessories generally include plate heat exchanger, work platform, yeast add vessel, wort aeration, wort grant and mash pumps, etc.
Mash mixer and lauter tun in welded construction with dished top head, cylindrical tun with a conical bottom; All welding is done automatically under protection-gas atmosphere, made of 304 stainless steel.
Kettle/whirlpool tun with dished top and conical bottom, all welding seams welded under a gas atmosphere; inside properly ground, made of 304 stainless steel. Inside finish, #2B; External finish, #4; Insides welds, grounded, removed and polished to #4; Outside welds, clean with heat stain removed. 3mm inner sheel, 1.5mm dimple jacket, 75mm mineral wool insulation and 2mm cladding.
Two step plate heat exchanger. The plate heat exchanger is designed for cooling hot wort of 98°C to app. 15°C in the first step by using cooling water of max 15°C , which heats up to 80°C. In the second step the wort will be cooled to pitching temperature of 6°C by using glycol of -3°C or ice water of 0°C.
Two stage plate heat exchanger
Wort aeration device is for sterile aeration of the cooled wort before fermentation to ensure a flotation process and sufficient oxygen for good fermentation, which is the base for high quality beers.
Yeast add vessel, there are two handles on the side cylinder for convenient moving, depend on the compressed air to enter the pipe between plate heat exchanger and fermenter, also can be moved to the pipe near each fermenter for yeast adding.
The work platform is thought as a construction with which the all vessels can be assembled completely in our works and tested before delivery and also for transportation and installation of the plant.
Horizontal motor and work platform
Mashing system pipeline
We offers a wide array of fermenters(fermentation) and brite tanks(maturation) tanks that are designed accordingly to our customers’ specifications and their needs. Our fermenter and brite tanks come in three different generalized builds (customizable tanks are also available): single wall, un-jacketed and jacketed. All of our tanks can be pressurized (unless otherwise requested) and the fermenters have an added bonus of functioning as both a fermenter and BBT tank.

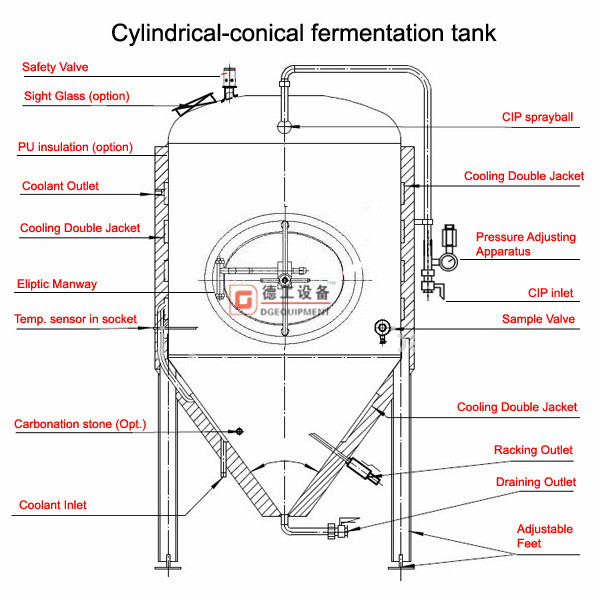

10BBL stainless steel fermentation tank
Fermentation specifications:
Interior Tank Thickness: 3.0 mm
Outer Shell Thickness: 2.0 mm
Polyurethane Insulation Thickness: 100 mm
Glycol Jacket (Dimple-Welded) Thickness: 2.0 mm
Stainless steel (304) sanitary construction
100% TIG welded and sanitary polished
Includes:
(x1): Blow Off Arm
(x2): Pressure Relief Valve
Units will be located on Top Dome & Blow Off Arm
(x1): CIP arm with rotating 360° spray ball
(x1): Pressure Gauge
(x1): Carbonation/Aeration Stone
(x1): Racking Arm with DIN Fitting
(x1): Sample Valve
(x2): Lifting Lugs
(x1): Side Shadowless Manway
Dual Zone Cooling Jacket with glycol inlet and outlet
(x1): Glycol Inlet & Outlet located on Cylinder
Turnkey brewing system
| DGET brief introduction: |
DEGONG is a large manufacturer of beer brewing equipment, which the headquarter is located in China. Dedicate to beer equipment, beer fermentation equipment, beer bottling machine, beer keg filling machine, beer filter machine, wine production equipment, wine fermentation tank, pasteurizing equipment, water treatment equipment, steam boiler and so on. Provide the total solution to customer from designing, consulting, product to project implementation.
| Packaging & Delivery |
Packaging Details: standard wooden package
Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.
Ready for shipment
| Contact information: |
If you are interested in our craft beer brewery equipment, need a quotation or you simply want to discuss your project with us, get in touch and we will be happy to assist you.
