DGET-5BBL
DEGONGET
8438400000
| Display of 5BBL beer brewing equipment |

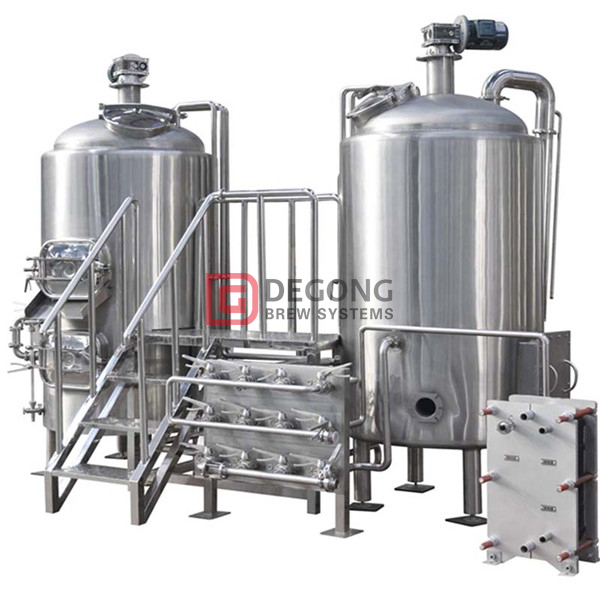

5BBL 2-vessel steam heated beer brewhouse with platform
| Technical parameters of 5BBL brewhouse system |
All stainless steel 304 construction, dished top and bottom.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.

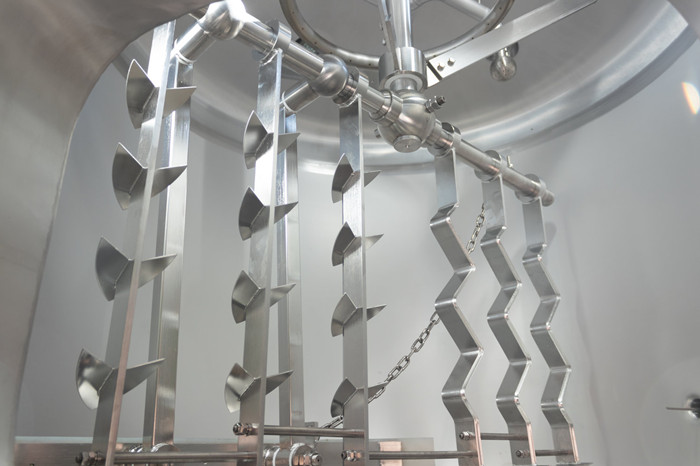

Internal mash grid assembly with (4) wedge wire removable screens for ease of cleaning.
Sealed access door.
Tempered glass top man door access.
Thermo-well installed with RTD for measuring temperature in mash / lauter tun; What's more, RTD sensor is also provided
Fully welded steam jacket with rear exit protruding steam/condensate nipples on main body.
Heavy duty legs assembly with standard leveling pads.
PU ( polyurethane) insulation with 14 gauge polished stainless steel outer shell.
ABB/ Siemens / SEW reducer for raker
| Technical parameters of 5BBL fermentation tank |
All stainless steel 304 construction, dished top and bottom.
Tempered glass top man door access.
4 pieces of heavy duty leg assembly with standard leveling pads.
PU(polyurethane) insulation with 14 gauge polished stainless steel outer shell.
Steam flue slip flange with condensation gutter and drain port.
Fully TIG welded assembly. Internal welds are smoothed with external welds acid cleaned and re-grained. External welds are stripe buffed.
Internally mounted/removable trub dam.
Fully welded steam jackets with rear exit protruding steam/condensate nipples. Two jackets are installed on the side circumference of the tank and one is installed on the bottom dish.
Thermowell installed with RTD for measuring temperature in brew kettle.
Tangential wort inlet assembled inside the tank
With VFD blender assembled inside the tank to stir wort
| Services |
As owning an experienced and creative engineering team, we could offer you professsional solutions for your plant and equipment.
If you already have solutions, we could fabricate the equipment exactly as per your request.
We could offer you trainning of brewing craft beer and operating equipment if needed
36months warranty
Meanwhile, you can call or email to consult any relevant questions since we have a special line of after sale service, or you can communicate online and solve the problems
If you hav eintereste, please get in touch with me freely

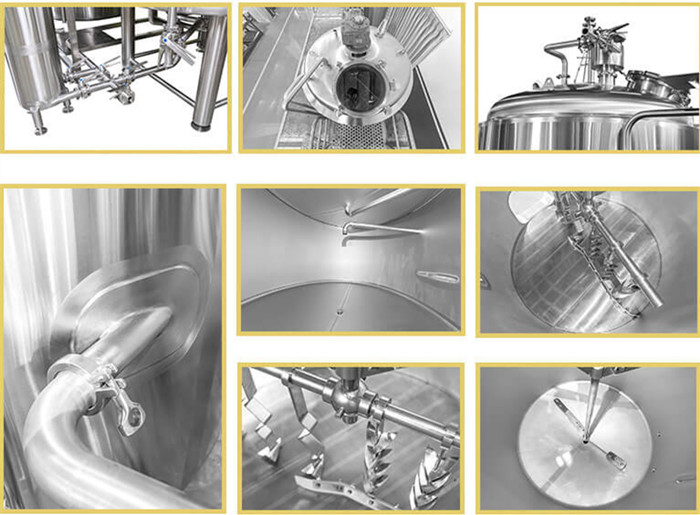

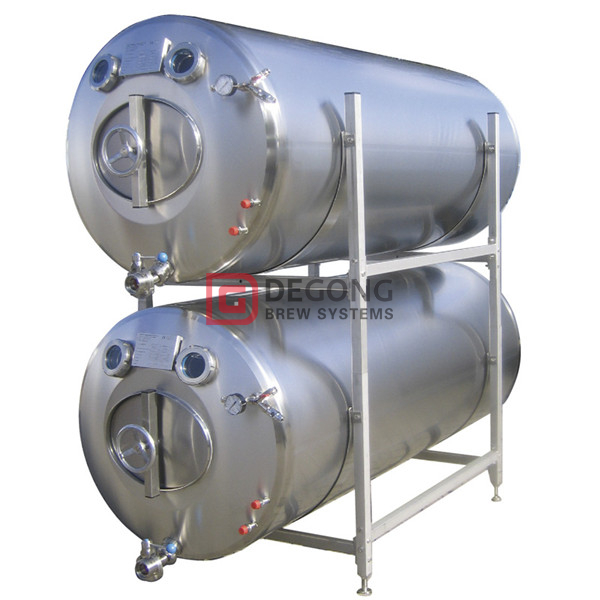

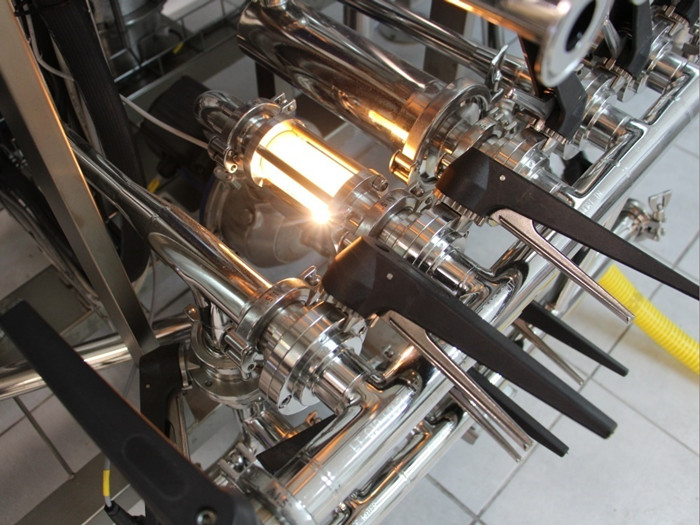

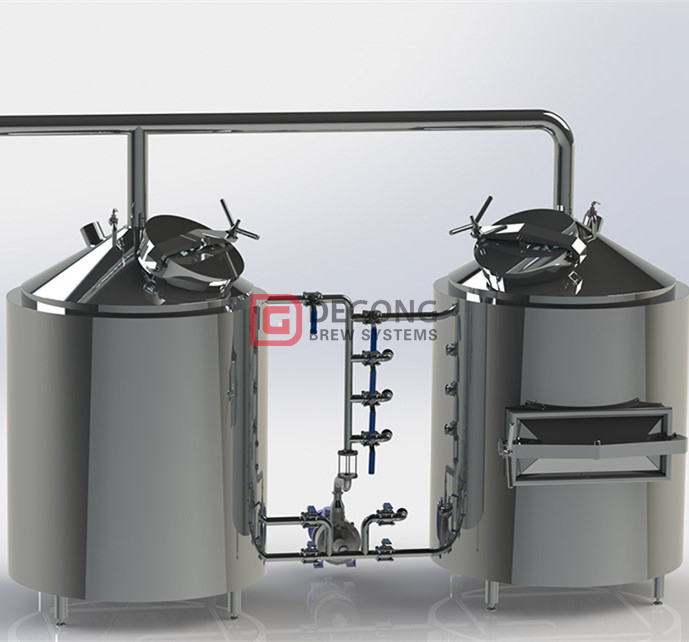

| Pictures of 5BBL beer brewing equipment |
