DGET-500L
DGET
8438400000
| 500L distillation equipment overview |
Common type, including: pot still/rectification column/dephlegmator/condenser/CIP system/piping
Aroma type, including:pot still/ball hat/rectification column/dephlegmator/condenser/CIP system/piping
Industrial type, including: pot still/ball hat/rectification column/fine distillation column/dephlegmator/condenser/CIP system/piping
1. We can customize stills according to your needs, with any size boiler or column diameter. The columns & condensers can be made with copper or stainless steel according to your needs.

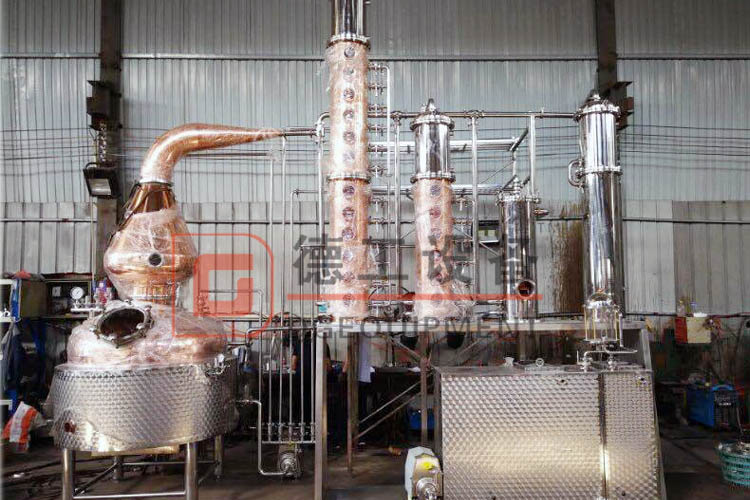

2. The Picture above is of our Jacketed, Steam Heated or electric heating versatile reflux column stills distilling equipment. These Stills can be heated by Low Pressure Steam Boiler or by our optional Electric Self Contained oil bath Heating System or direct fire heating system.
3. This type of still is versatile and multi-functional, great for stripping, Gin, Rum, Brandy, Moonshine, Vodka and Whiskey.
Pot Materials: Stainless steel 304, Copper, or Stainless steel 304 and copper combined
Different types of gin basket
Bubble Cap Plates Column, Column can be stainless steel, copper or glass
Column Diameter: 4”, 6”, 8”, 10” or customized according to your requests
Each Plate has a sight glass window, drain valve
Copper or Stainless Steel Dephlegmator
Agitator with long heavy blades for mash cooking
Variety of customized copper whisky head
Large size Tube and Shell Condenser, stainless steel or copper
Pressure Relief Valve and pressure gauge for inner boiler and jacket
PU insulation
Tri Clamp Butterfly Valve on the drain
CIP in the pot, whisky head, columns, dephlegmator and condenser
Stainless steel or copper parrot
Bolt to the Floor Stainless Table Stand or Stainless Column Stand for the Condenser, You Pick.
Mirror Polish Inside
Swirl pattern outside, satin finish outside or mirror polish
CIP pump and CIP manifold is optional
Copper spirits safe is optional
Coil type condenser is optional
Spirits storage tank is optional

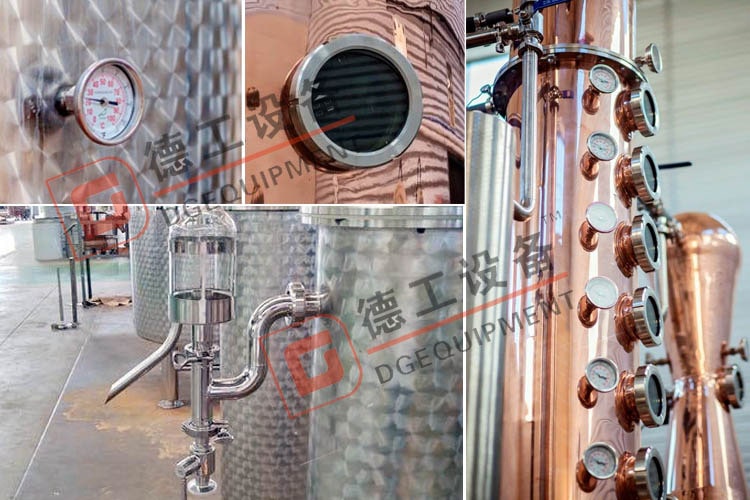

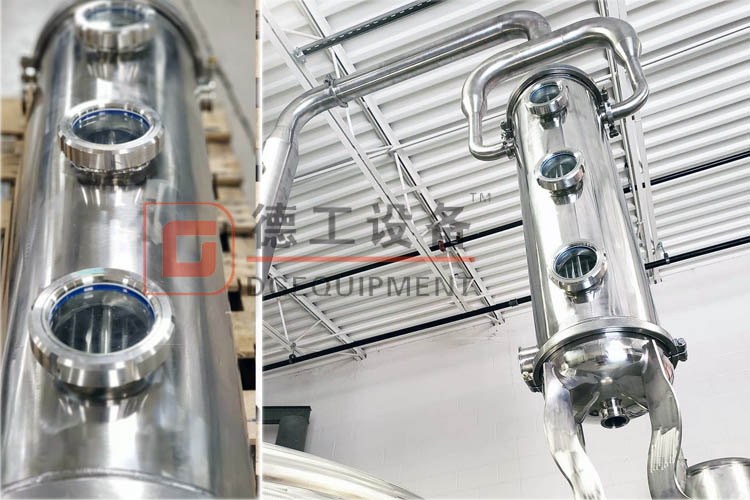

stainless steel distillation equipment details

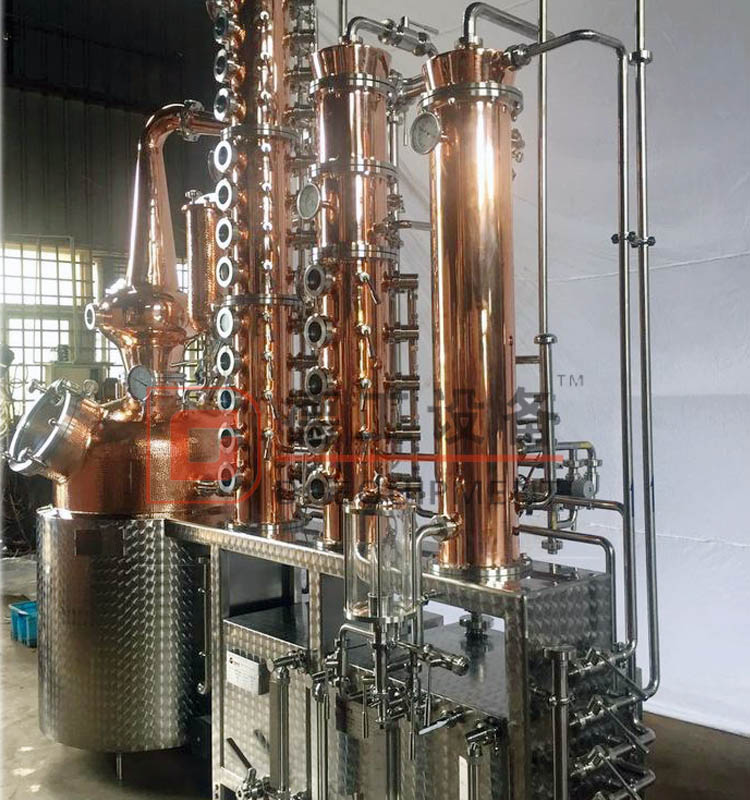

red copper distillation equipment details
