500L Micro Turnkey Customized Craft Beer Brewing Equipment for Sale

500L steam heating brewhouse assembly adopted with three vessels: Mash/Kettle, Lauter tun and Whirpool tun.Steam heating method is better for its stablity and effciency.All of the tank will have separate steam jacket in order to improve tanks’s using efficiency and adopted with working platform for operating.

Quantity:
  • DGET-500L
  • DEGONGET
  • 8438400000



Production introduction


Mash/Lauter tank:


1. Be made of food sanitary stainless steel. Brushed outer shell.

Thickness of insulating layer: 80mm, Thickness of inner body stainless steel: 3mm, outer shell is 2mm

Rake plow/ Grain out door, Milled sieve plate;

2. Grain washing round pipe; CIP rotary spray device

3. Top mechanical agitation (Bauer), motor with CE UL certification.

4. Top mounted manway with full glass, manway handles material is stainless steel; Top decorative funnel; light fixture with LED; thermowell;

5. Bi-mental thermometer and temperature probe;

6. Bottom wort collect

7. All valves are stainless steel, with tri-clamps; NPT connect ports etc

8. With all matched valves and accessories.


Lauter-tun_看图王_副本



Kettle/whirlpool tank:


1.  Be made of of food sanitary stainless steel; Brushed outer shell;

2.  Steam jacket

3.  With liquid meter

4.  Thickness of insulating layer: 80mm; Inner Body Thickness: 3mm, outer shell is 2mm

5.  Top mounted manway with full glass; Light fixture with LED;

6.  CIP rotary spray device; safety combination

7.  Bi-metal thermometer and temperature probe

8. Tangential whirlpool line at the side

9. Outer and Inner plate protection , and ribbon polished on all welds

10 All valves are stainless steel, with tri-clamps; NPT connect ports


36_16_9_tcm11-12661_副本


Fermentation tank:


- Stainless steel 304 sanitary construction

- 100% TIG welded and sanitary polished

- Design pressure: 1.5-2 bar, test pressure: 3bar

- 4 heavy duty stainless steel legs with adjustable height and leveling footpads

- Interior shell: 304 stainless steel , thickness is 3 mm

- Interior is 2B and exterior finish bright polish, sanitary surface

- Tri-clamp sanitary fitting

- Vacuum & pressure relief valve

- Pressure gauge

- Thermometer gauge

- Sample valve

- Lifting lugs

- Ladder hooks, also designed to hold brewers hose when not is use

- Side manhole

- CIP arm and rotary spray ball 360 degree of coverage

- Dual zone cooling jacket with glycol inlet and outlet

- Rotation racking arm

- Dry hopping hole

- Thermo-well (Temperature sensor is also included)






factory


Degong Equipment Technology Co.,Ltd. is located in Shandong with convenient transportation access. We are professsionally engaged in producing craft beer brewing system, fermentation system, bright beer tanks, CIP system, Keg washer, stainiless steel manways and relavant fittings. As for the turn key project for pub and brewery plant are welcomed by us.

24 hours online services from sales team is here for assistance. Experienced R&D team from Degong are always available to meet the requirements of beer industries "energy saving, and clean production goals" for both the domestic and abroad market. CAD and 3D drawing, project planning, training online and on site, receipt of brwery are all can be got if there are requires from customers. The one-stop service from the initial design of the project to on site testing of the equipment welcomed.


Certificates


Internationally recognized: Zunhuang technology has been internationally recognized, and achieved ISO9001: 2008 international quality system certification, import and export EU CE certification; accepted ASME, CE, AS1210 third-party inspection, with import and export rights, the company's products have been in over 30 countries worldwide.



photobank


Services


1.We supply the complete turnkey beer brewery equipment include the bottle and barrel filling system

2.The detailed floor plan,CAD drawing and 3D drawing of the brewery,installation pipeline connection drawing,the operation manual

3.We can transport the goods to your delivery place

4.Support sending engineer to install and training technology on site and supervised-installation with remote support

5.We supply the beer recipes,brewing technology

6. 5 Years Guarantee service for the beer brewery equipment

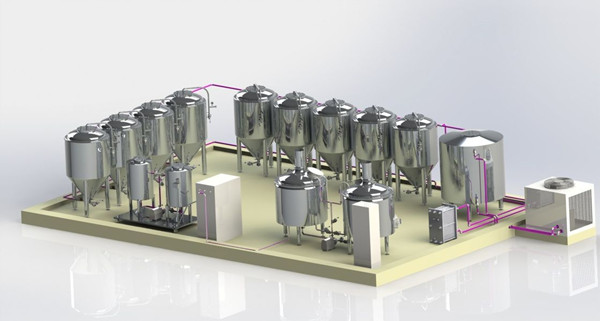

3D layout


Contact us


Zhe


FAQ


1.Are you a manufacturer?

 Yes,we have been providing the professional products to all customers all over the world for more than 10 years.


2.How to install the machine?

We can provide the video of installation, email, picture. If large project, we can dispatch our engineer to install the brewery equipment at site.


3.How to do temperature control?

The PLC or digital display meter can control the temperature via connecting with the PT100 sensor.


4.What is your available port of shipment?

Qingdao seaport


5.Is customized available ?

Yes, according to your detailed drawings or requirements.


6.How long is your delivery time?

Generally single tanks need 20-30 working days, for whole plant need 40-50 working days.
