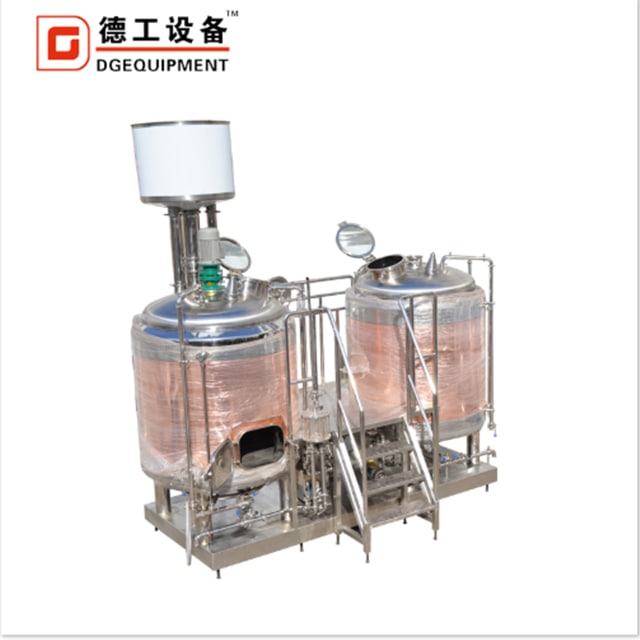

500L craft turnkey red copper beer brewing equipment with CE certificate for sale

 Overview

DEGONGET brewhouse system are built of red copper and stainless steel and can be customized entirely to your needs. Whether you are looking for smaller, single tanks for nano/pilot systems or large, full rake agitation systems with combination vessels or separate mash mixer and lauter tuns, we can manufacture the tanks which can fit your need for your brewery.

• Mush/brewhouse heated via steam,electric or direct fired

• Flexible brewhouse designs to accommodate your available square footage and ceiling heights

• Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination,configurations from 2-vessel to multi-vessel designs

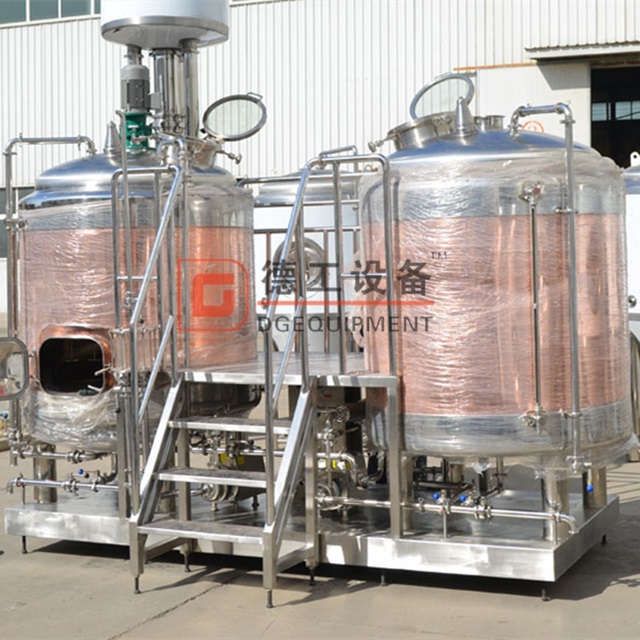

 Brewhouse system

3-Vessel configuration：Mash/lauter tank+boiling kettle/ whirlpool tank+Hot water tank

Technical parameters:

• Material(stainless steel): thickness: 3.0mm;

• External-Jacket(red copper), thickness: 2.0mm;

• Cylinder (sharp type, SUS304), thickness: 2.0mm.

• Inner surface treatment: welds grinded to Ra 0.6µm.

• Insulation: Polyurethane-thickness 100 mm.

• Temperature way:Double metal thermometer

• Outsourcing surface: Weld polishing processing

• Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.

• CIP 360 degrees Omni bearing cleaning

• Integrated CIP System

• Hot Liquor Tank –Designed and Sized for Double Brew efficiency

• Cold Liquor Tank –Fully insulated and integrated

• Stainless steel 304 pump with ABB or Siemens motors

• Mash/lauter tank with Grain raker

• Boiling/whirlpool tank with whirlpool port and stir blades

• 304 stainless steel operate platform and stairs

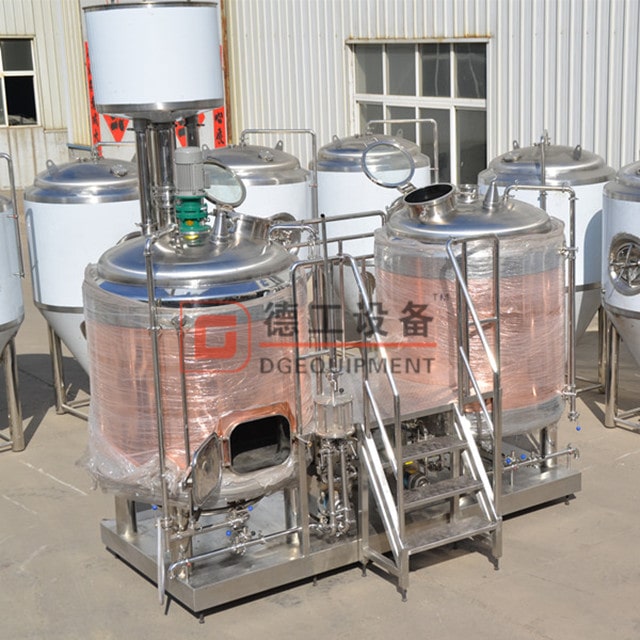

over view of the mash/lauter tank

CIP ball&ABB motor&grain raker

Hot water tank

• Material: Inner(SUS304),thickness: 3.0mm;

• External-Jacket(SUS 304), thickness: 2.0mm;

• Cylinder (sharp type, SUS304), thickness: 2.0mm.

• Inner surface treatment: welds grinded to Ra 0.6µm.

• Insulation: Polyurethane-thickness 100 mm.

• Temperature way:Double metal thermometer

• Outsourcing surface: Weld polishing processing

• Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.

• CIP 360 degrees Omni bearing cleaning

• Integrated CIP System

• Hot Liquor Tank –Designed and Sized for Double Brew efficiency

• Stainless steel 304 pump with ABB or Siemens motors

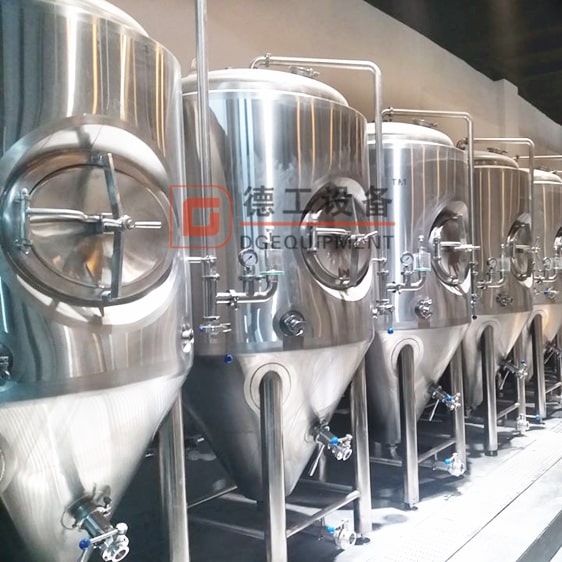

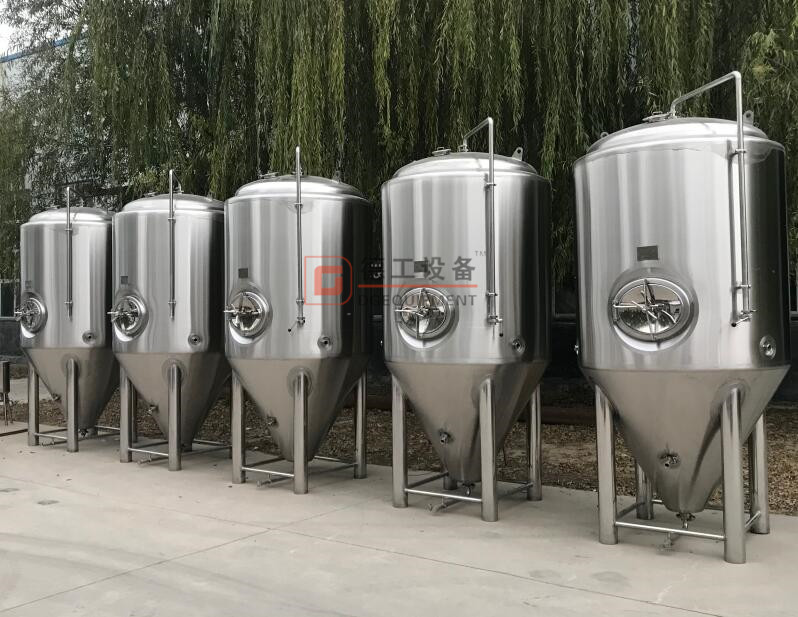

Fermentation tank

High standard configuration:

• Sanitary side mounted manway with pressured door

• TC connected CIP arm with 360° coverage spraying ball

• CO2 blow-off arm with butterfly valve

• Full sanitary metallic sealed sampling valve

• Mechanical safe valve PVRV 2 bar on top

• Hydraulic shock pressure gauge on CIP arm

• Rotating racking arm and port on cone with butterfly valve

• Thermowell for high accuracy temperature sensor

• 4 pcs completely SUS304 heavy duty legs with leveling pad and legs support

• Dry hopping port 4'' TC with solid end cap

Beer brewing process

The brewhouse equipment are the vessels for the process of mashing.After the malt is crushed, it should be transferred into the mash/lauter tun to dissolve the substances in the malt. The crushed malt is then mixed with the brewing water and heated.The insoluble substances in the mash are separated from the liquid in the lautering tun. The husks and other matter sink to the sieve base. They form spent grains cake, which is a natural filter.

Wort boiling is a fundamental step in the production of premium-quality beer. Hops are added to the wort and boils the mixture in the kettle. Then it will be drain out in the whirlpool tank.

Packing&delivery

Standard packing:

Cord ,film membrane

Firm membrane, wood box for free fumigation

Transport: by sea

Delivery :

     - We put your order into our tight production schedule to ensure the punctual delivery time.

     - Production or inspection report before your order packed.

     - Shipping notice/ insurance to you as soon as your order is shipped.

Our certificate

Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components for customers. The quality, specification and function all meet the treaty of contract.

Contact us

Every set od beer brewery equipment is unique and requires different specifications. Please shoot us an email or give us a call for a quote.
