10BBL 2/3/4vessel craft commercial microbrewhouse equipment with CE certificate

Working with all relevant partners world-wide, DEGONG is specializing in managing the design, engineering,  and installation of a brewhouse that helps you achieve your unique brewing process. Multi-vessel craft beer brewhouse equipment  is a good choice for starting your own brewery.

Brewhouse system

Heating method:

• Steam heating method

• Electric heating method

• Direct fire theating method

3-vessel 10BBL brewhouse equipment

Configuration

2-vessel:

10BBL Mash/Lauter tun

10BBL Kettle/whirlpool tun

Hot water tank(optional)

3-vessel:

10BBL Mash/Lauter tun

10BBL Kettle tun

10BBL whirlpool tun

Hot water tank(optional)

4-vessel

10BBL Mash tun

10BBL Lauter tun

10BBL Kettle tun

10BBL whirlpool tun

Hot water tank(optional)

operation platform

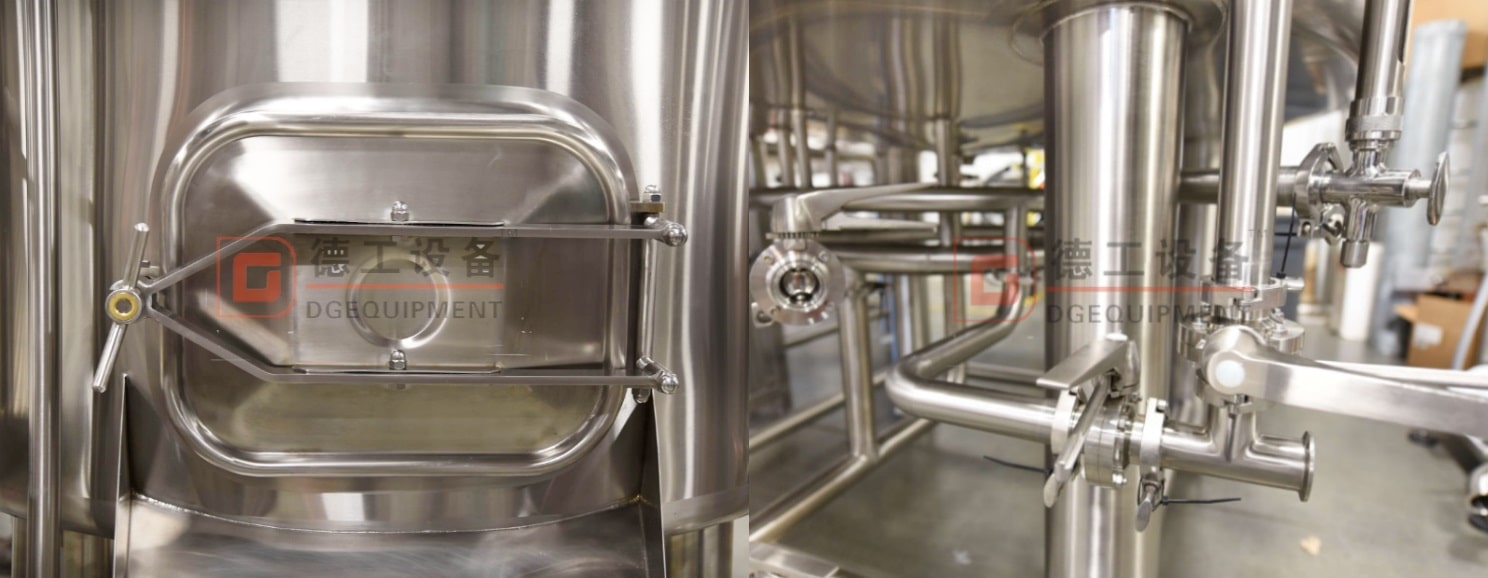

• Tubular glass level indicator

• Tangential wort inlet

• Side mounted grain outdoor with grain chute

• Laser cutting V-wire False Bottom

• Heating exchanger: 10 square meters

• Wort pump: ABB motor, VFD control

• Grain raker

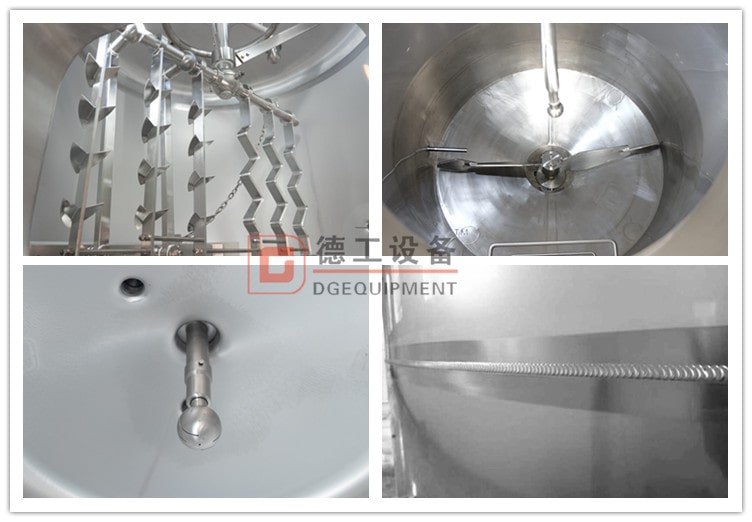

Grain raker&CIP ball&side manhole& circulation

Technical parameters

• Material: Inner(SUS304),thickness: 3.0mm;

• External-Jacket(SUS 304), thickness: 2.0mm;

• Cylinder (sharp type, SUS304), thickness: 2.0mm.

• Inner surface treatment: welds grinded to Ra 0.6µm.

• Insulation: Polyurethane-thickness 100 mm.

• Temperature way:Double metal thermometer

• Outer surface processing: Weld polishing processing

• Jacket Pressure: design pressure 0.3 MPa, working pressure <0.2 MPa.




Certificate

Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components which all reach the food sanitary standard for customers. The quality, specification and function all meet the treaty of contract.

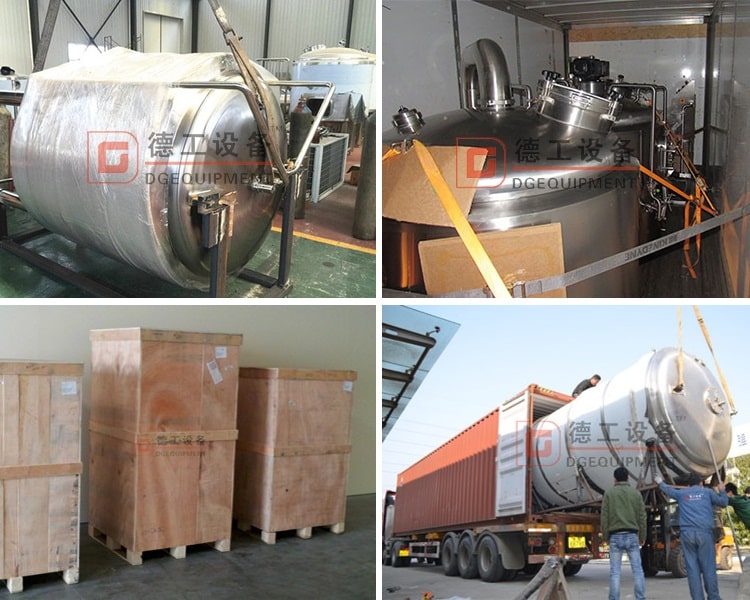

Packing&delivery

Standard packing:

Cord ,film membrane

Firm membrane, wood box for free fumigation

Transport:

by sea

Delivery :

     - We put your order into our tight production schedule to ensure the punctual delivery time.

     - Production or inspection report before order packed.

     - Shipping notice/ insurance to you as soon as the order is shipped.

Contact us

Every beer brewhouse equipment is unique and requires different specifications. Contact us to get more info.
