1000L Stainless Steel Beer Fermenter Double Jacket Unitanks High-standard Brewing Equipment for Craft Beer
Home » Brewery Equipment » Fermentation Vessels » 1000L Stainless Steel Beer Fermenter Double Jacket Unitanks High-standard Brewing Equipment for Craft Beer

Product Detail

Share to:

1000L Stainless Steel Beer Fermenter Double Jacket Unitanks High-standard Brewing Equipment for Craft Beer

We manufacture and supply brewhouse sizes from 100L to 20000L based on customer’s demand. Our brewery equipment is turn-key and consist of mill system, mash system, fermentation system, cooling system, cleaning system (CIP), control system and accessories. With brewery equipment you are able to produce outstanding full-bodied beers. Beginners will find it easy to brew with this fairly automated equipment.

Material:
Manhole:
Type:
Quantity:
  • DGET-1000L
  • DGET
  • 8438400000

Our products have been exported to all of the world, such as USA, Canada, Mexico, Peru,, Chile, France, Belgium, UK, Singapore, Korea, Australia etc. So we are confident to meet your needs. Now, please follow me to see more details about our products.


未标题-2_副本

Brewery equipment in restaurant


Our stainless steel beer fermenters are built for those that want the best. The series are all unitanks, which means they can handle pressure up to 1.5bar. That allows you to carbonate in your fermenter without a separate brite tank or waiting days for your beer to ferment in kegs or bottles. These fermenters are scaled down versions of what you will see at any profession brewery. All sanitary welded tri-clamps, butterfly valves, 60° cone angle and dedicated tri-clamp for use with a blow off cane. If you are ready to step your fermentation game up to the best this is the product for you!


Brewery equipment for brewing craft beer:

The beer brewing equipment is widely used in pub, laboratory, home. The configuration is flexible depending on different working efficiency:

Brewhouse combination is flexible according to your needs and daily work shift. In general, the brewhouse's main tank: mash tun,lauter tun, kettle and whirlpool tank ,from one vessels to four vessels, heating way is electrical or steam heating or direct fire.

Fermenter quantity will depend on beer daily output and beer fermentation cycle.

Cooling system including glycol water tank, pump and chiller. The big cooling capacity used in heat exchanger, for cooling wort.

Control system we have 2 type, PLC control and Digital control system.


未标题-3_副本

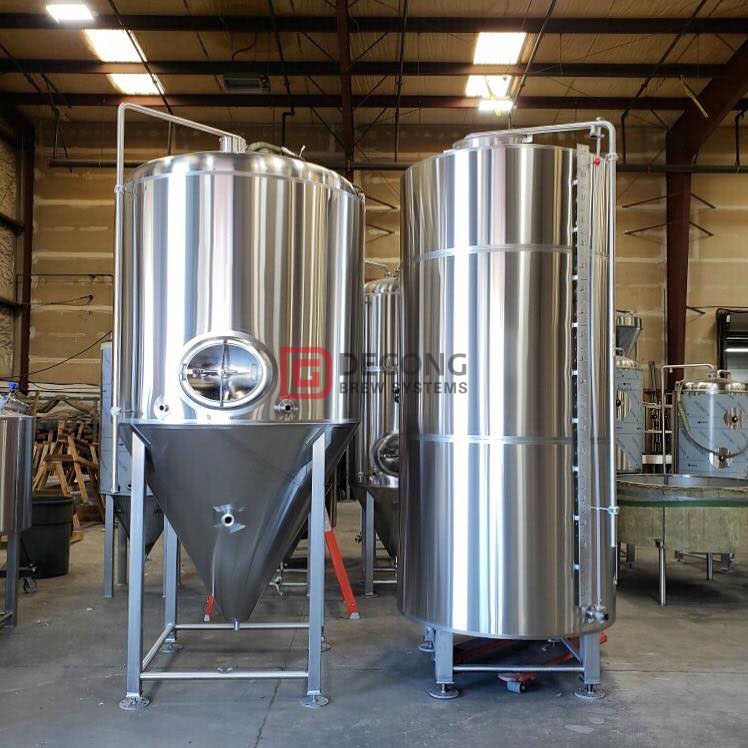

1000L cylinder-conical fermentation tank

Fermentation tank specifications:

Interior Tank Thickness: 3.0 mm

Outer Shell Thickness: 2.0 mm

Polyurethane Insulation Thickness: 100 mm

Glycol Jacket (Dimple-Welded) Thickness: 2.0 mm

Stainless steel (304) sanitary construction

100% TIG welded and sanitary polished

With electromagnetic valve or mechanical pressure regulating valve,

Sample valve,Temperature sensor, adjustable leg,Rotating beer mouth, discharging outlet.

CO2 outlet,coolant inlet and outlet,CIP inlet and outlet,wort inlet and yeast outlet,cleaning ball, pressure gauge


QQ截图20200103153231_副本

Fermenter cone part

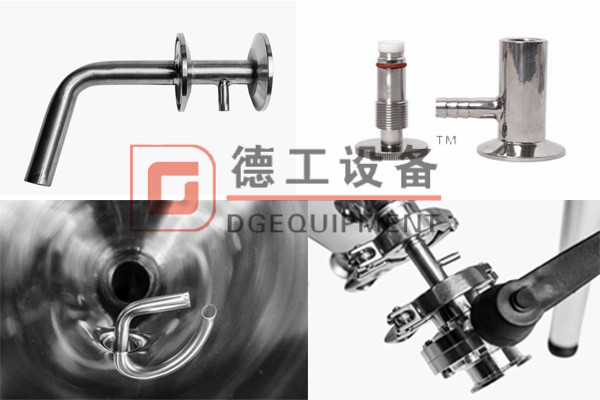

racking arm and sample valve_副本


Sample valve – it is used for sampling the product during its tasting and laboratory tests. The valve can be further equipped with a spiral attachment that eliminates the foaming of the beverage and speeds up the sampling process.


QQ截图20191022151113_副本

Ice water inlet and rotate racking arm


Temperature sensor in the socket – the socket is a small tube welded on the side of the tank for insert the thermocouple of the control system, or thermometer for visual temperature measurement. For tanks of larger volumes, one tank contains two or more sockets for thermal sensors.



PU insulation – The tank is usually insulated with a polyurethane foam (optionally with other insulating material) that fills the space between the inner jacket and the outer shell of the tank. Usually, we only isolate only both the cylindrical and conical parts of the tank. On request, we also can insulate the upper and lower bottoms of the tank.

cct-slp-shp-scheme-01-1_副本

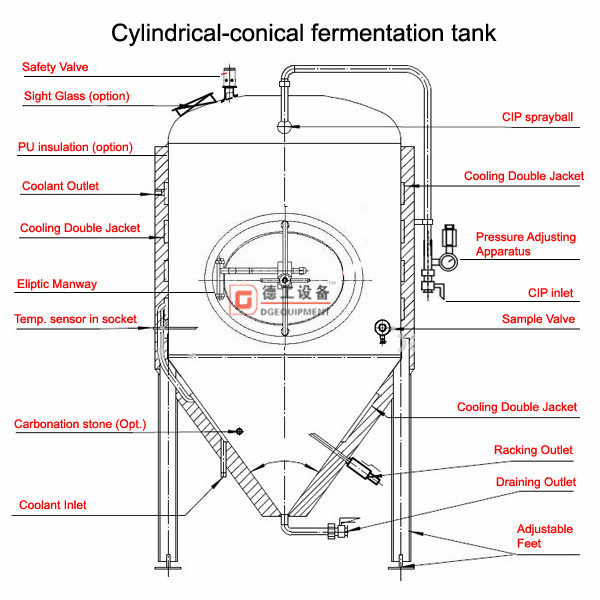

Fermentation tank construction


dc81f8484d_副本

Horizontal lager tank

清酒罐_副本

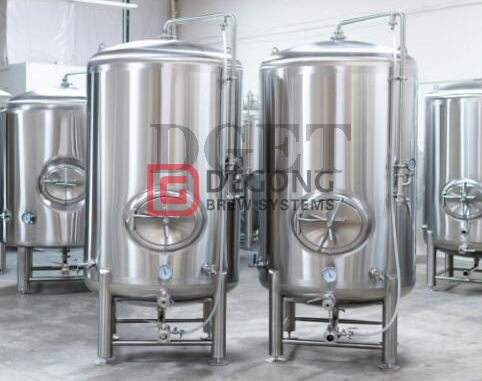

Brite beer tank with components


Our company brief introduction:

公司简介


工作间_副本


Packaging & Delivery

Packaging Details: standard wooden package

Package Type : As usual, we adopt wooden case as package type. It's suitable for long-distance transport. According to customers' special demand, we could adopt sheet iron case and so on.


自家发货

Ready for shipment
