DEGT-500L
DEGT
8438400000

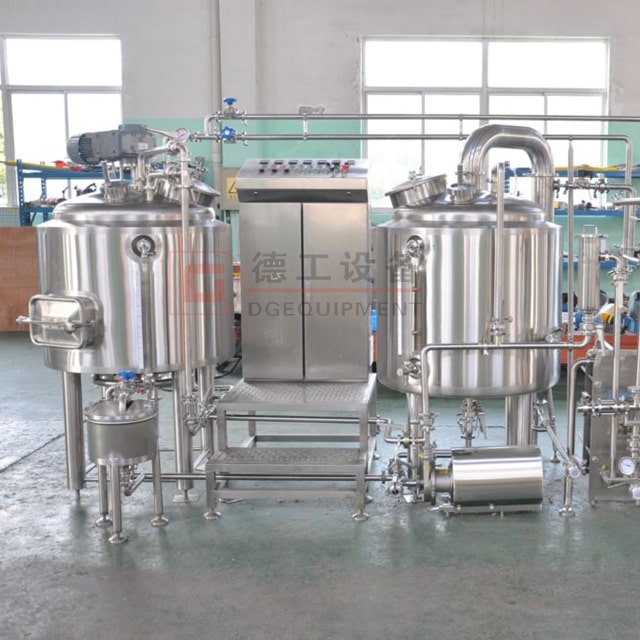

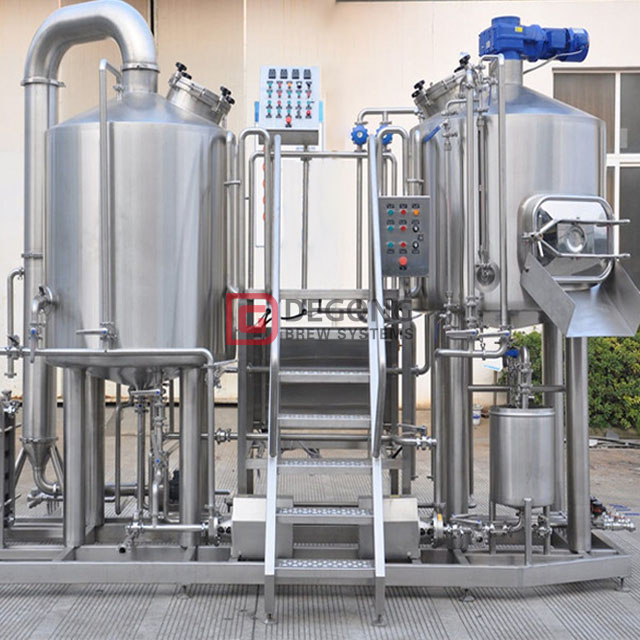

The mash system includes mash/lauter tun, boiling/whirlpool tun, plate heat exchanger,hop adding, pump and so on. Its main function is that in the mash tun grist is mixed with brewing water from hot water tank to form the mash. In the lauter tun the wort(dissolved liquid extract) is separated from the solids(spent grains).
Mash/Lauter tun: Racking machine rotary tillage, Side out manhole,Top manhole.
Hot water tank: Manhole/ Bottom and side jacket
Kettle/Whirlpool tank: Bottom and side jacket, Manhole, Work platform, Pump, one or two line plate heat exchanger, valve and temperature controller.
Heating：Steam/Gas/Electricity
Option: steam cndensate system, wort sampling station
Material:Inner(SUS304），thickness:3.0mm,Jacket(SUS)304,thickness:3.0mm
Cylinder(SUS304),thickness:3.0mm
Inner surface treatment:welds grinded to 0.6μm。
Insulation:Polyurethane-thickness 100mm

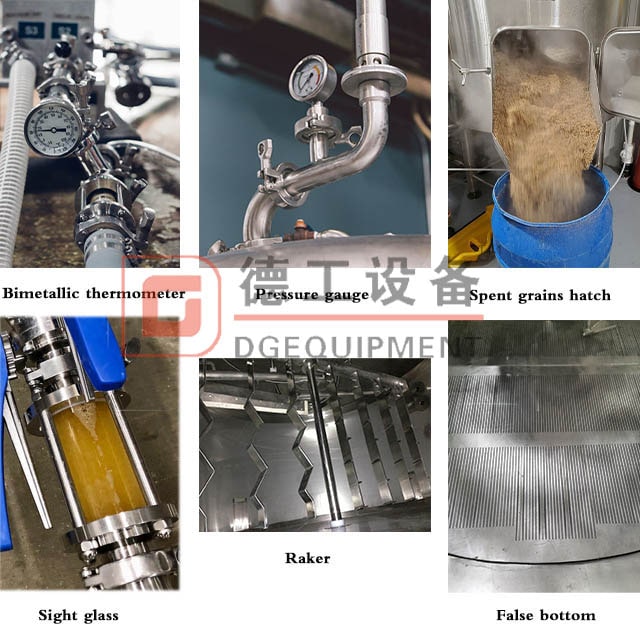

Temperature way:Double matal thermometer
Outsourcing surface:Weld polishing processing
Jacket Pressure:design pressure 0.3MPa,working pressure <0.2MPa.
CIP 360 degrees Omni bearing cleaning
1. Our advantage
DEGONG's own factory has the advantages of customization, fine workmanship, durable equipment, beautiful appearance, price concessions, simple operation, corrosion resistance and technical support.
2. Our certificate
Our equipment is coming with certifications of PED and our company is TUV approved. We use CE approved components for customers. The quality, specification and function all meet the treaty of contract.
3. Our service
We can provide engineers to help you install the equipment, and we can also provide winemakers to help you solve technical problems.
We tied it up with code and tied it up with a film membrane.We will choose Wooden case to protect the equipment from being damaged in transit.If the equipment’s height exceed the container’s height,we will put down the equipment and fix it by iron frame.

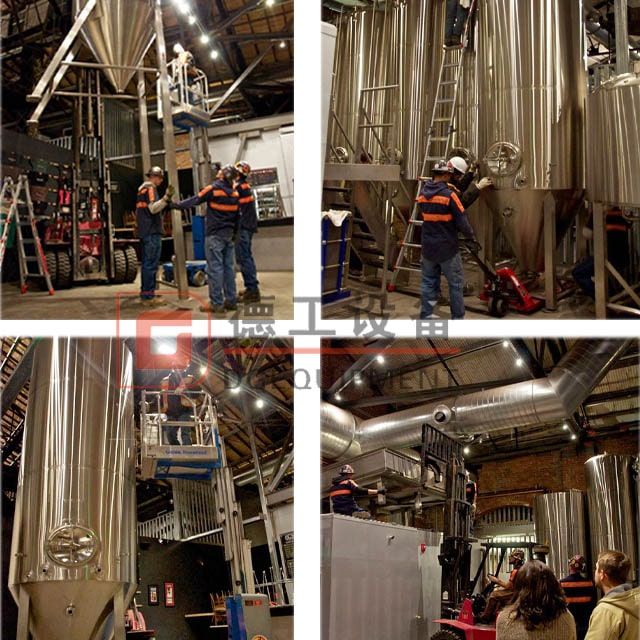

The following is the beer equipment that just arrived at the destination port Ireland, our customers are installing.
If you have needs for craft brewing equipment, please feel free to contact us,my pleasure.
