Product Detail

Brewery equipment fermentation tanks and bright beer tank cellar beer brewing equipment commercial 10HL

Share to:

Brewery equipment fermentation tanks and bright beer tank cellar beer brewing equipment commercial 10HL

The kits are equipped with classical cylindrical-conical tanks or cylindrical fermentors and all equipment that is needed for controlled cooling of the tanks during the fermenting of beverages.

Material:	SUS304
Thickness of material (mm):	Inner shell 3mm outer shell 2mm Jacket 1.5mm
Insulation:	80mm polyurethane 100mm polyurethane
Availability:

Quantity:



Inquire Add to Basket

Model:
DGET-10HL
Brand:
DGET
Code:
8438400000

Product Description

Brewery Cellar tanks

Brewery equipment--- fermentation tanks

发酵罐详情-min

10HL Brewery food grade fermenters

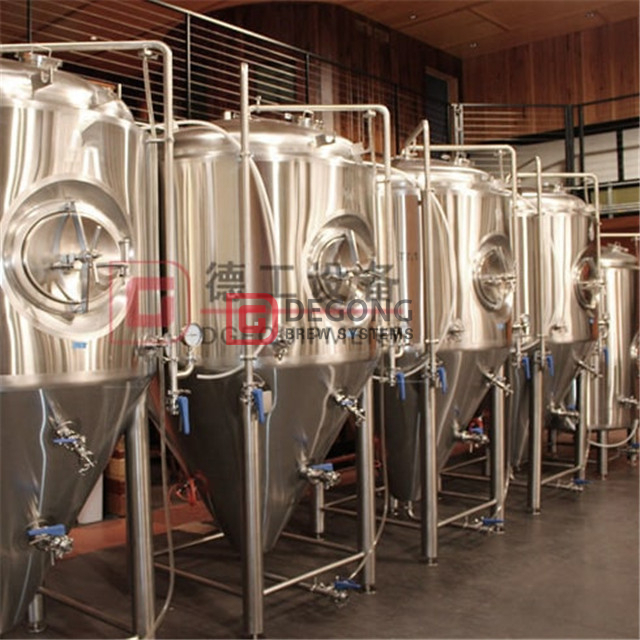

Our fermentation tanks are constructed using SS 304 or SS 316 as desired, designed as cylinder conical tanks with cone angle 60 degrees. These tanks are equipped with dimple jacketed glycol cooling system and insulated with 70-100mm polyurethane foam. Tanks are fitted with high quality solenoid valves that regulate tank temperature. The cooling surface includes the cone and cylinder area. Independent cooling for cone and cylinder areas can be optionally provided. All tanks are fitted with high quality RTD sensors for accurate temperature indications.

Characteristics:

304 stainless steel, 2B finish

Conical bottom standard at 60 degree; other options are available

Fixed stainless steel legs and bases with adjustable legs

Large diameter legs

Preformed dimple cooling jackets within cladding

Shadowless manway standard

Stainless steel pressure/vacuum relief valve

Sample valve

Shell and cone insulated and clad

Options:

Thermometer with well

Probe well

Sight gauge

Thermo-control bracket

拼细节1

Shadowless side manhole;Racking arm,drain outlets...

Brewery equipment--- Bright beer tanks(BBT)

Bright BeerTanks are also referred to as maturing tanks and are also made of SS 304 or SS 316 as desired. These tanks are designed with a dish bottom and is equipped with dimple jacketed glycol cooling system and insulated with 70-100 mm polyurethane foam. Tanks are fitted with high quality solenoid valves that regulate tank temperature. The cooling surface includes the cone and the bottom dish area. All tanks are fitted with high quality RTD sensors for accurate temperature indications and pressure gauges. Tanks are pressure tested to 3.0 bar and are fitted with a safety pressure valve set at 2.5 bar. Single or dual CIP spay balls are fitted for CIP operation.

Overhead cross arm extending to the side is provided with a pressure regulating device. Arrangements for applying counter pressure of Carbon Dioxide is provided in the cross arm assembly. Tanks are equipped with sampling outlets, beer pythonline outlet and inlets for carbonation. Optionally flow meters, beer level tubing and kegging outlets can be provided. Tanks are available from 200 liters to 2000 liters in the microbrewery range, and larger capacities for full scale brewery.

brite tank2
